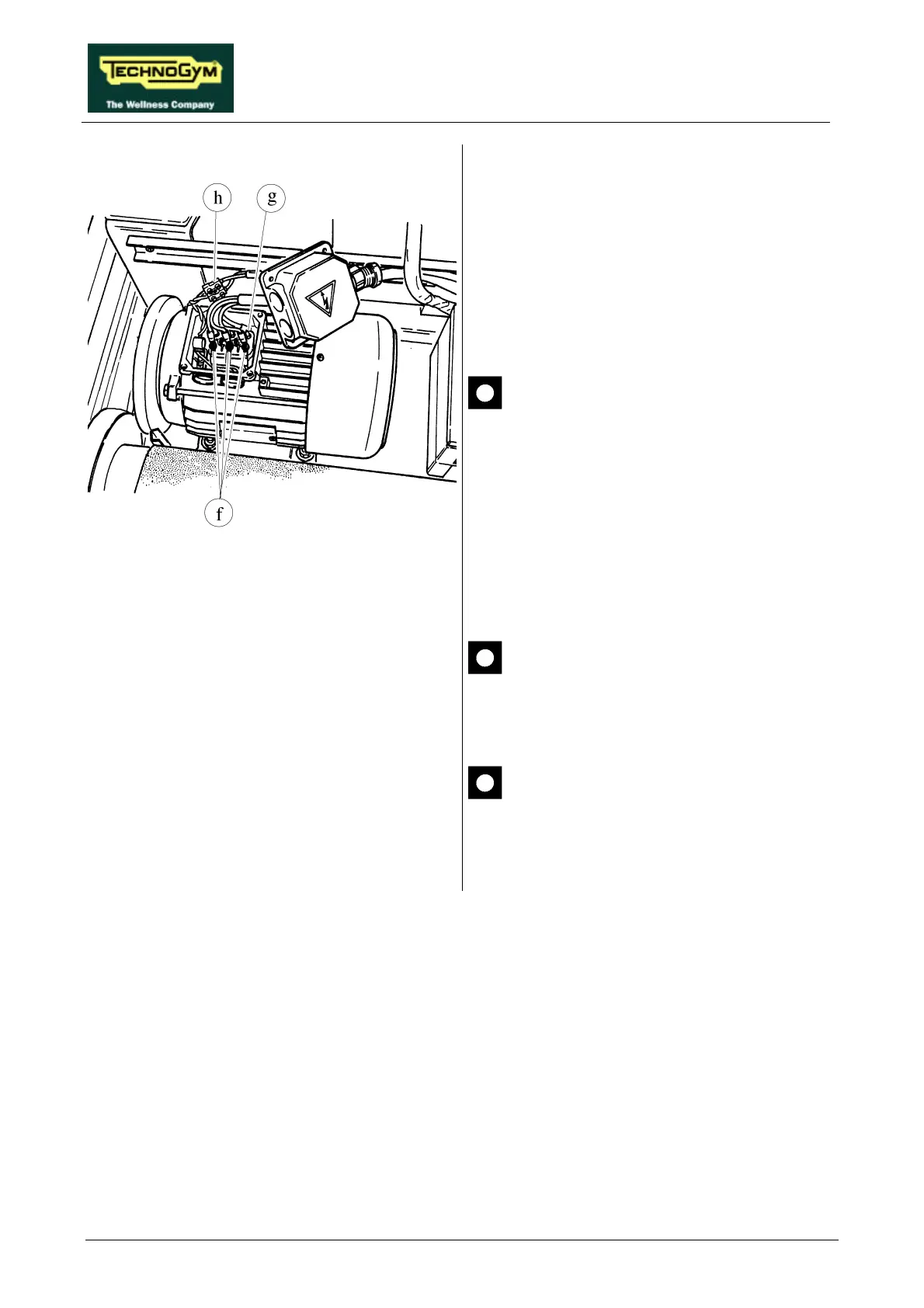

Figure 7.11-3
10. Disconnect the 3 phase conductors f using a
7-mm wrench, the ground conductor g using
a large Phillips screwdriver, and the motor
thermal cutout h using a small flat-blade
screwdriver.
Make sure that no nuts or washers fall
inside the BELT MOTOR.
11. Remove the BELT MOTOR.
To reassemble the BELT MOTOR, carry out the
above steps in reverse order.
When locking down the cover screws,
make sure that the conductors inside the
box are correctly positioned to avoid
pinching them with the cover.
After completing the procedure, adjust
the tension and alignment of the
MOTOR BELT as described in
paragraph 8.4. .
