SELECTION LINE: Service & Maintenance Manual - rev. 4.0
Page 5.8
5.6. THE BARBELL GUIDES ON MULTI POWER ARE NOT
ALIGNED
It is possible to adjust the position of the barbell guides on the Multi Power by means of cams
which can be accessed from the lower part of the frame. Proceed as follows:
1. Turn the machine over in order to access the
lower part of the frame; the cams are situated
near the bars.

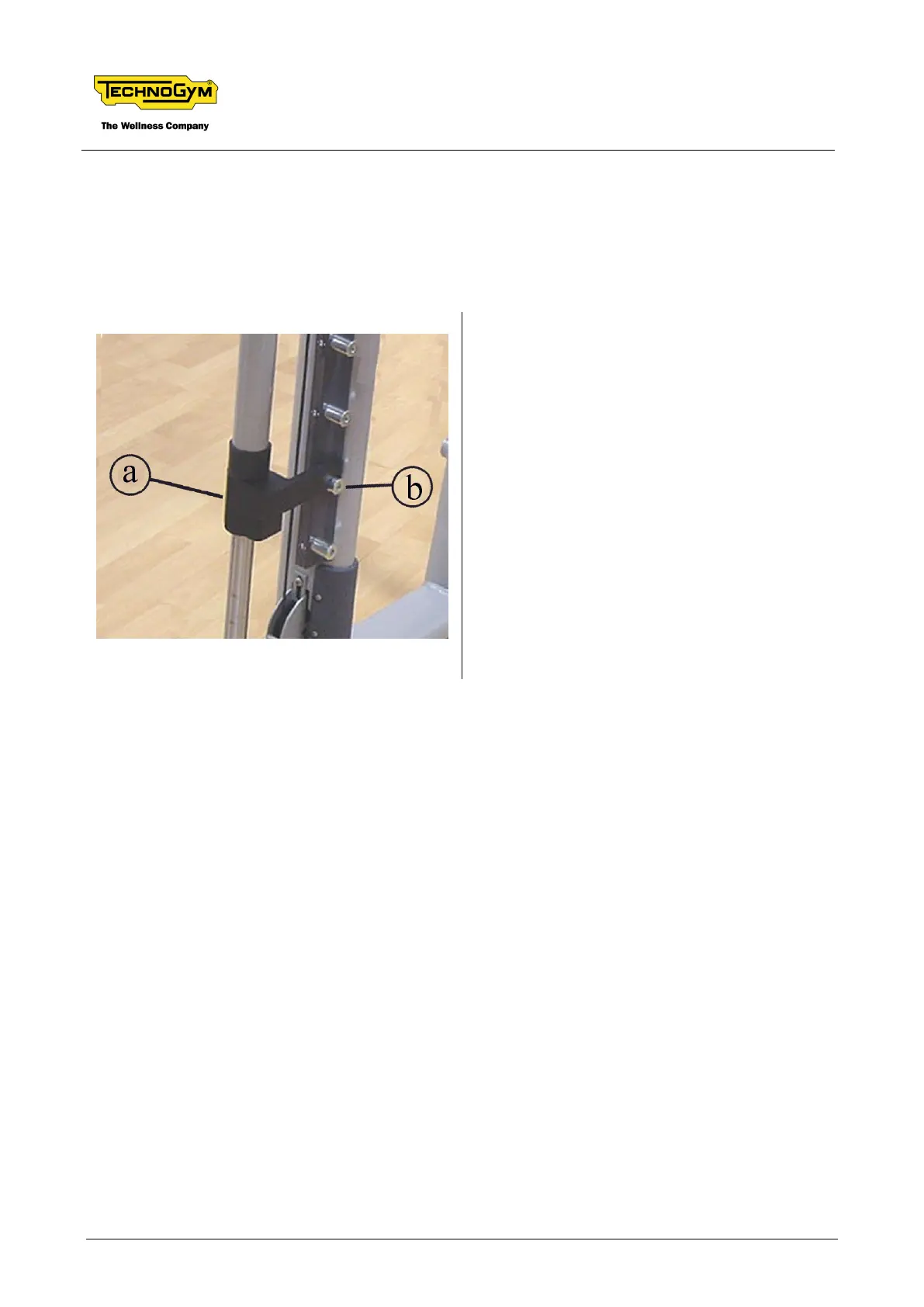

2. To make the adjustment, check that the safety
stops a correctly engage the pins b, on the
machine frame, as illustrated in the following
figure.
