4.1.2. LOWER ELECTRONIC KIT INSTALLATION
Cable passage:

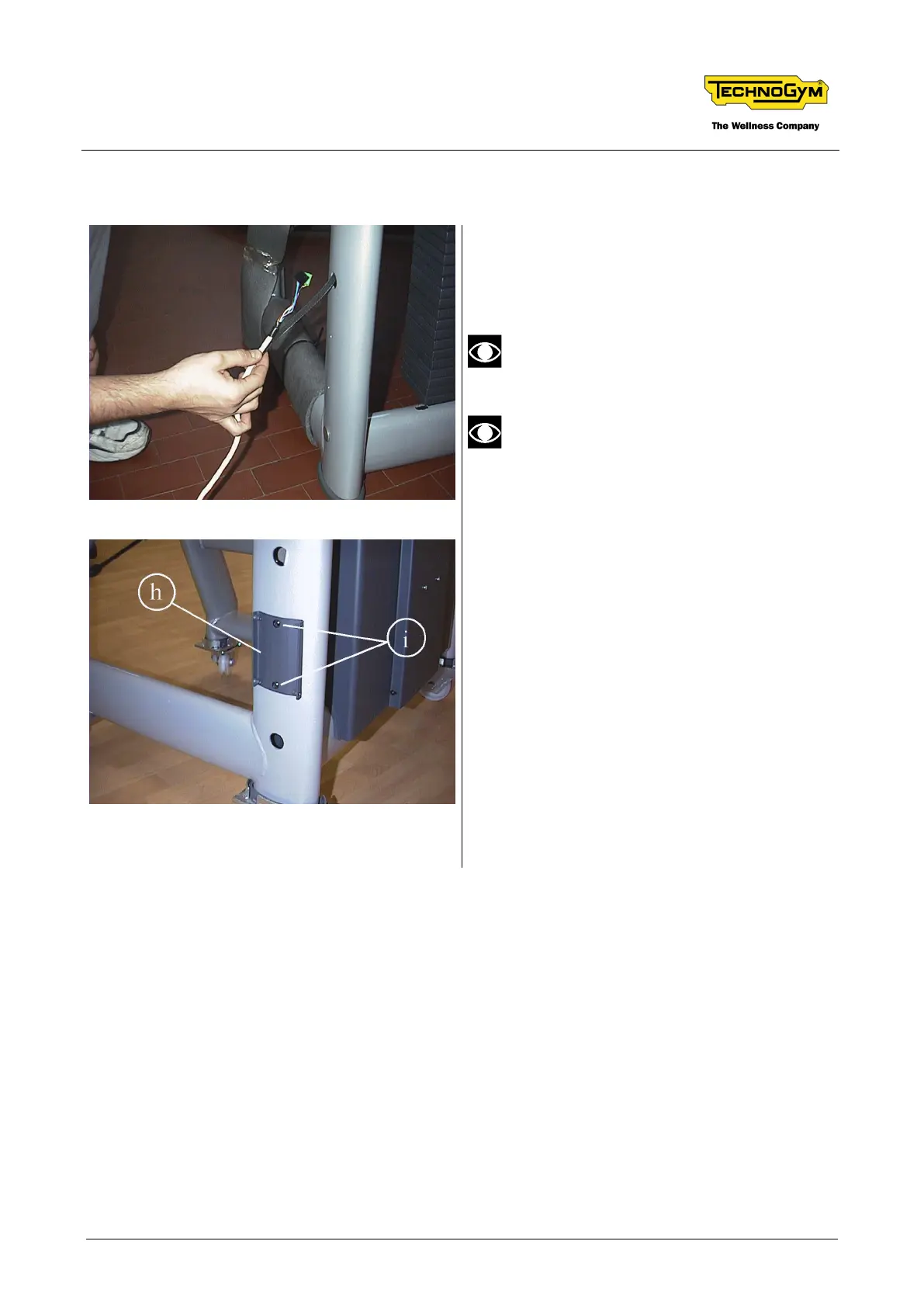

5. Pass the cables through the holes provided,
using the cable pass provided in the kit.
Pass the cables starting from the hole at
the lower electronic group to which they
are already connected.
Be careful not to invert the cables if they
are supplied disconnected from the
power supply unit. The green connector
coloured red must be connected to the
power supply side.
Assembling the lower electronic group:
6. Fasten the lower electronic group support h
to the frame using the 2 screws i using a
medium-size Philips screwdriver.
