6.5. RELEASE LEVER
This operation applies to Leg Curl, Leg Extension Lower Back, and Glute.

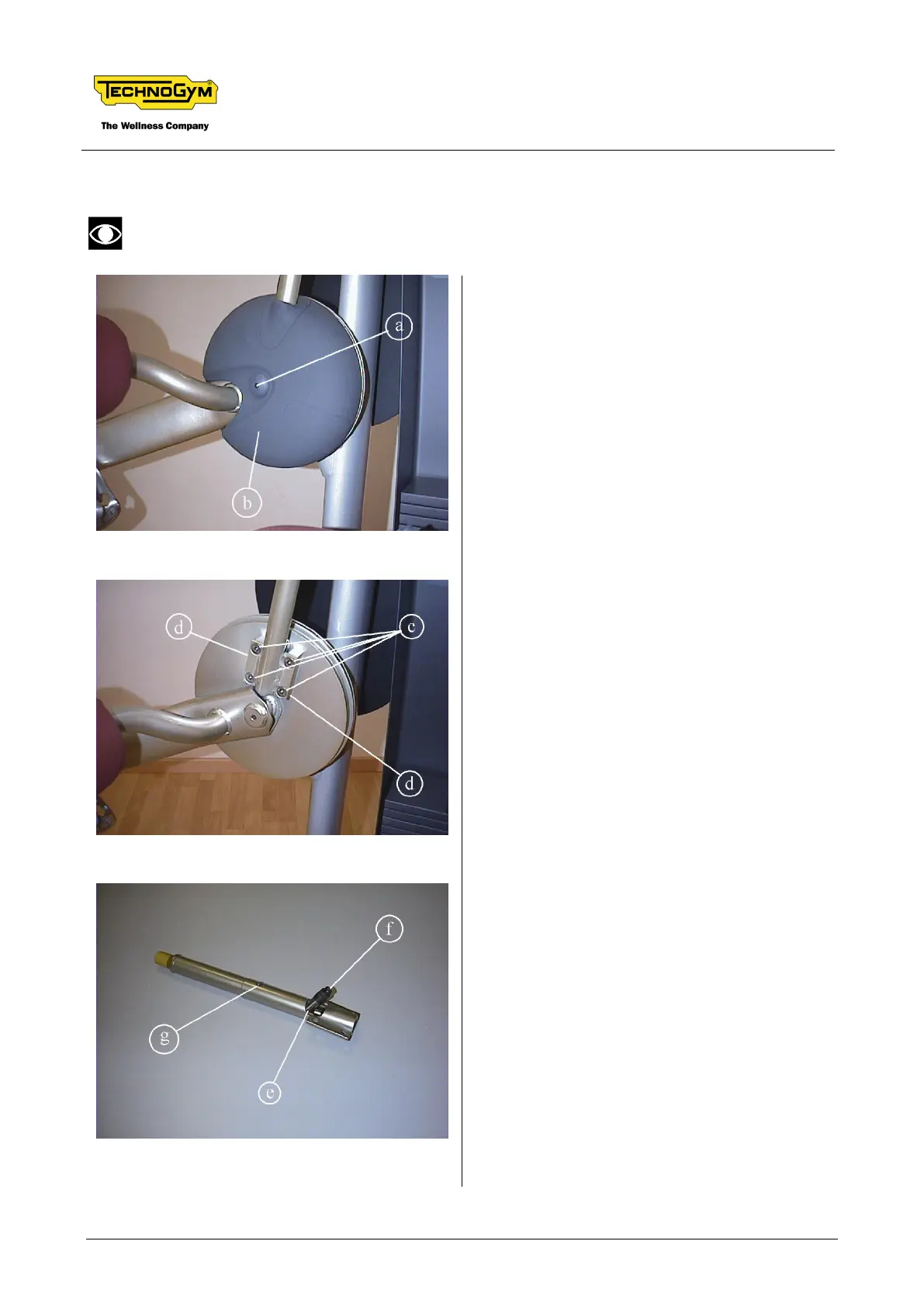

Photo 6.5-1
1. Unscrew the screw a using a 5-gauge
hexagonal T-wrench and remove the plastic
guard b, sliding it upward.
Photo 6.5-2
2. Use a 5-gauge hexagonal T-wrench to
unscrew the 4 screws c, making sure that the
2 spacers d (one on each side) do not fall out.
3. Remove the release button.
Photo 6.5-3
With the release button on a workbench:
4. According to the version, it is necessary to:
 Remove the spiral pin e with a peg
remover tool and rubber mallet.
 Remove the threaded pin e using a
Medium Philips screwdriver.
5. Remove the pin f.
6. Unscrew the screw g using a medium-sized
Philips screwdriver.
7. Open the button, sliding the inner part up or
down.
