SELECTION LINE: Service & Maintenance Manual - rev. 4.0
Page 6.9

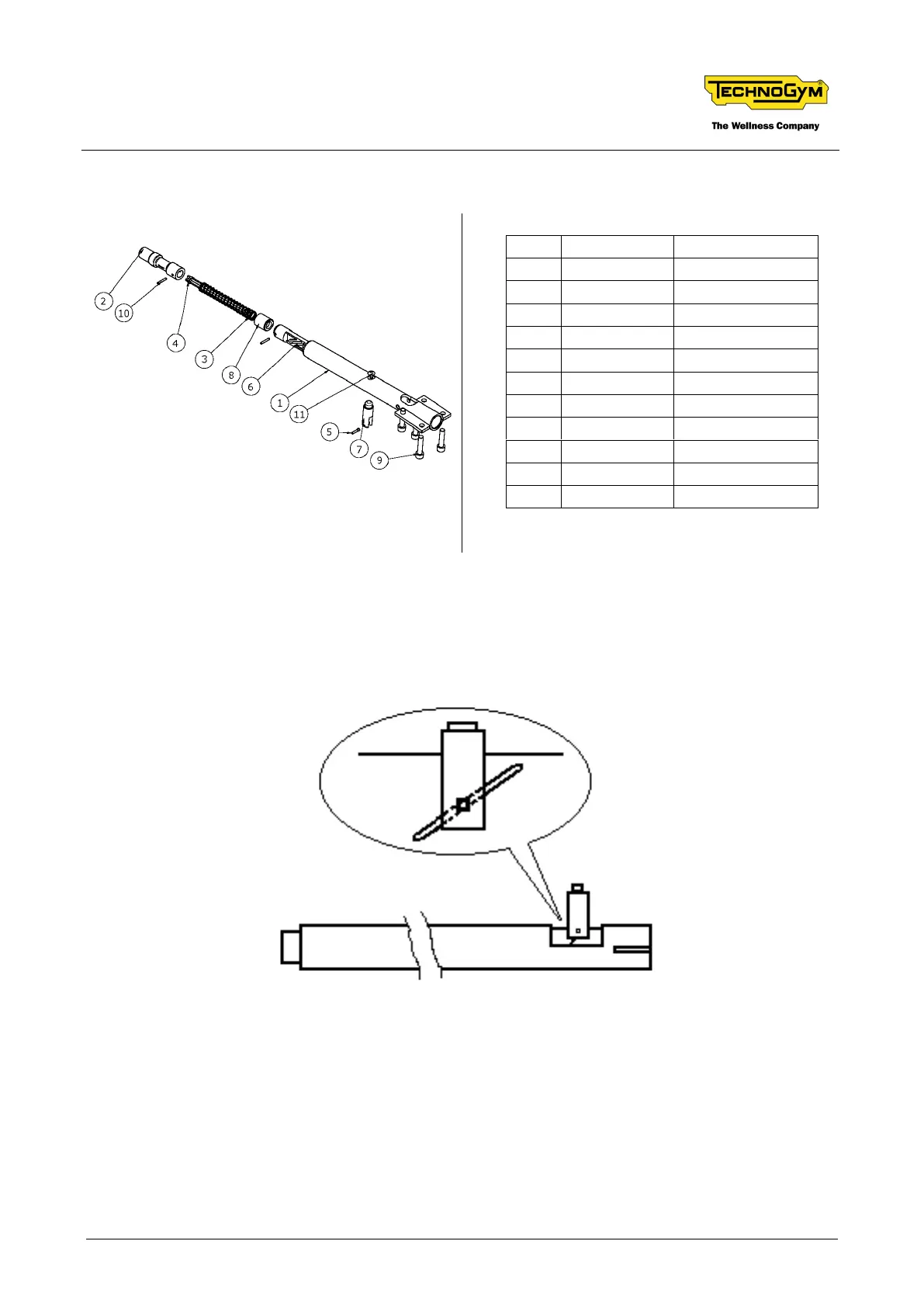

The version at present in production is composed by the following pieces:
To reassemble the button, make sure that:
1. The Phillips screw 11 is fastened in such a way to block the piece 8.
2. The threaded pin 5 is fastened to the piece 6 in such a way that the slot of the latter is positioned
as shown in the drawing below:
Figure 6.5-1
3. To reassemble it on the machine, insert it into a hole in the bell.
