SELECTION LINE: Service & Maintenance Manual - rev. 4.0
Page 6.10
6.6. SELECTOR SWITCH FOR ADDITIONAL WEIGHT
This operation does not apply to Abductor, Adductor, Cable Jungle, Ercolina Crossover
Cable, Ercolina, Ercolina Rehab., Lat Machine, Leg Press, Low Row, Pulley and Total
Abdominal.
The selector switch for additional weight is hooked onto the cross. Since there are only 2
mechanical solutions available:
 cross with crimped cable;
 cross with doubling pulley.
there are 2 different disassembly procedures detailed here below:
6.6.1. MACHINES WITH CROSS WITH CRIMPED CABLE
FITTING
This operation applies to Abdominal Crunch, Easy Chin Dip, Glute, Leg Curl, Leg
Extension, Lower Back, Rotary Calf and Total Abdominal.

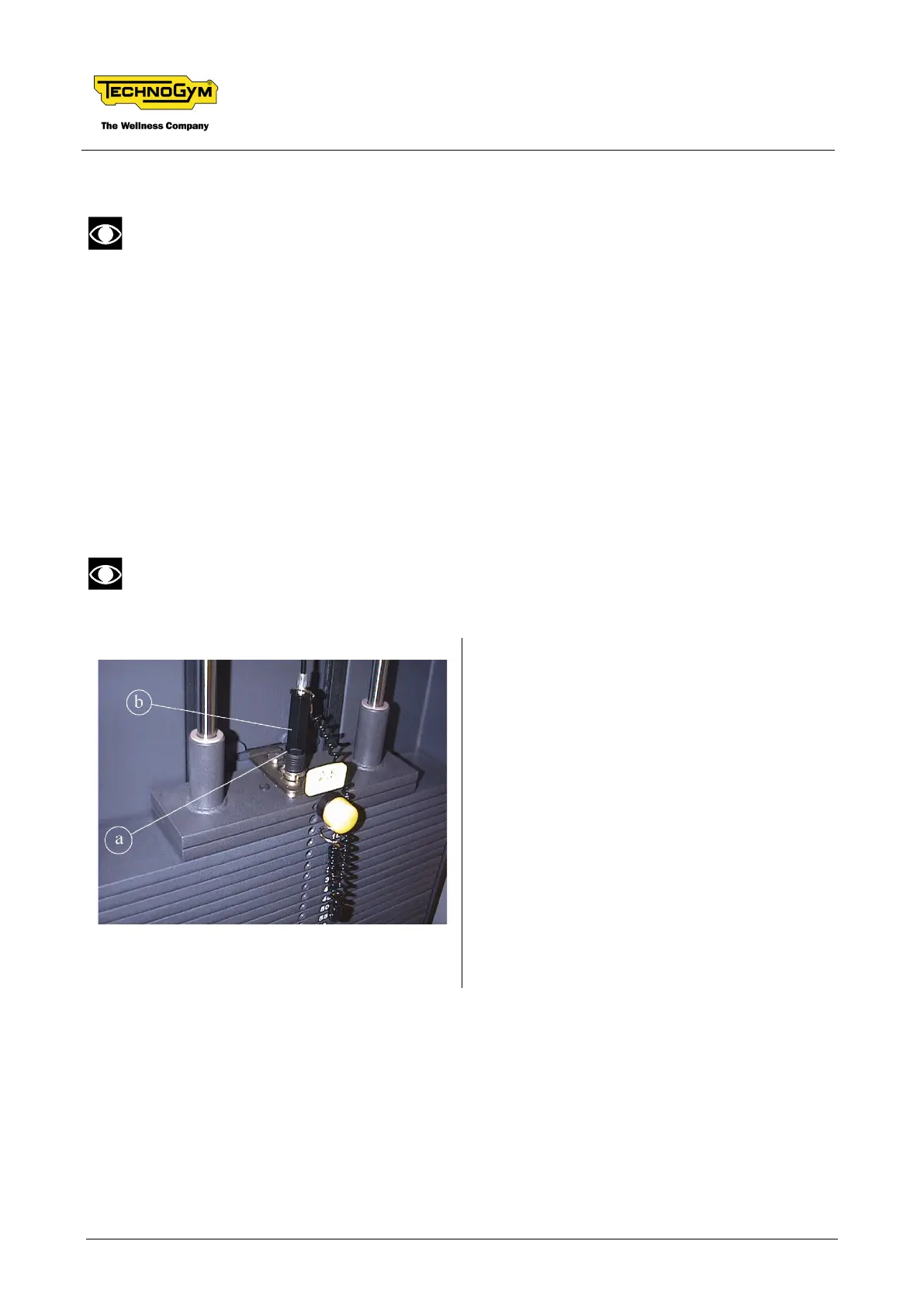

Photo 6.6-1
1. Loosen the counter-nut a using a 22-gauge
wrench.
2. Unscrew the screw b at the end of the cable
so that the cable is free.
Continued on page 6.12
