5.13. LEVERS BECOMING MISALIGNED ON EASY CHIN DIP
In order to fix the problem of the upper levers becoming misaligned as a result of excessive play on
the locking tab, which caused the right lever to give way. The problem has been corrected with the
introduction of:
 New upper levers on which the shaft key is fixed by means of 3 dowel pins
 New pin
 New shaft keys

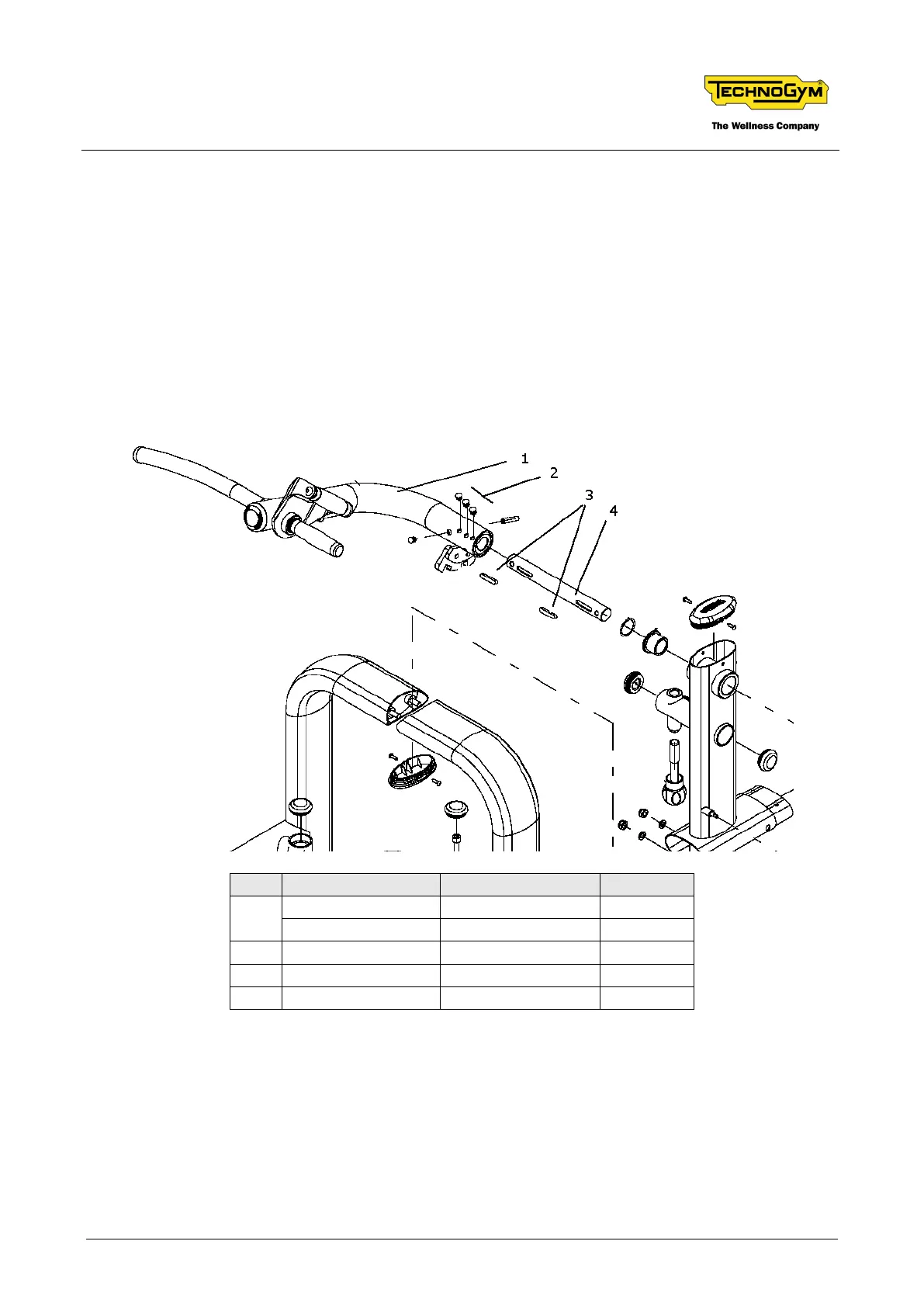

The drawing below illustrates the details of the modification:
Ref.
Code
Description
Quantity
1
0D002447AA-*
right upper lever
1
0D002448AA-*
left upper lever
1
2
0Z676
dowel
6
3
0Z741
tab
2
4
0P000717AA
pin
1
With the * character replaced by the desired color variant.
This solution is not interchangeable with the preceding one.
The first machine produced with this modification has SN M887N05000065.
