4.1.4. MAGNET ON THE SELECTOR INSTALLATION

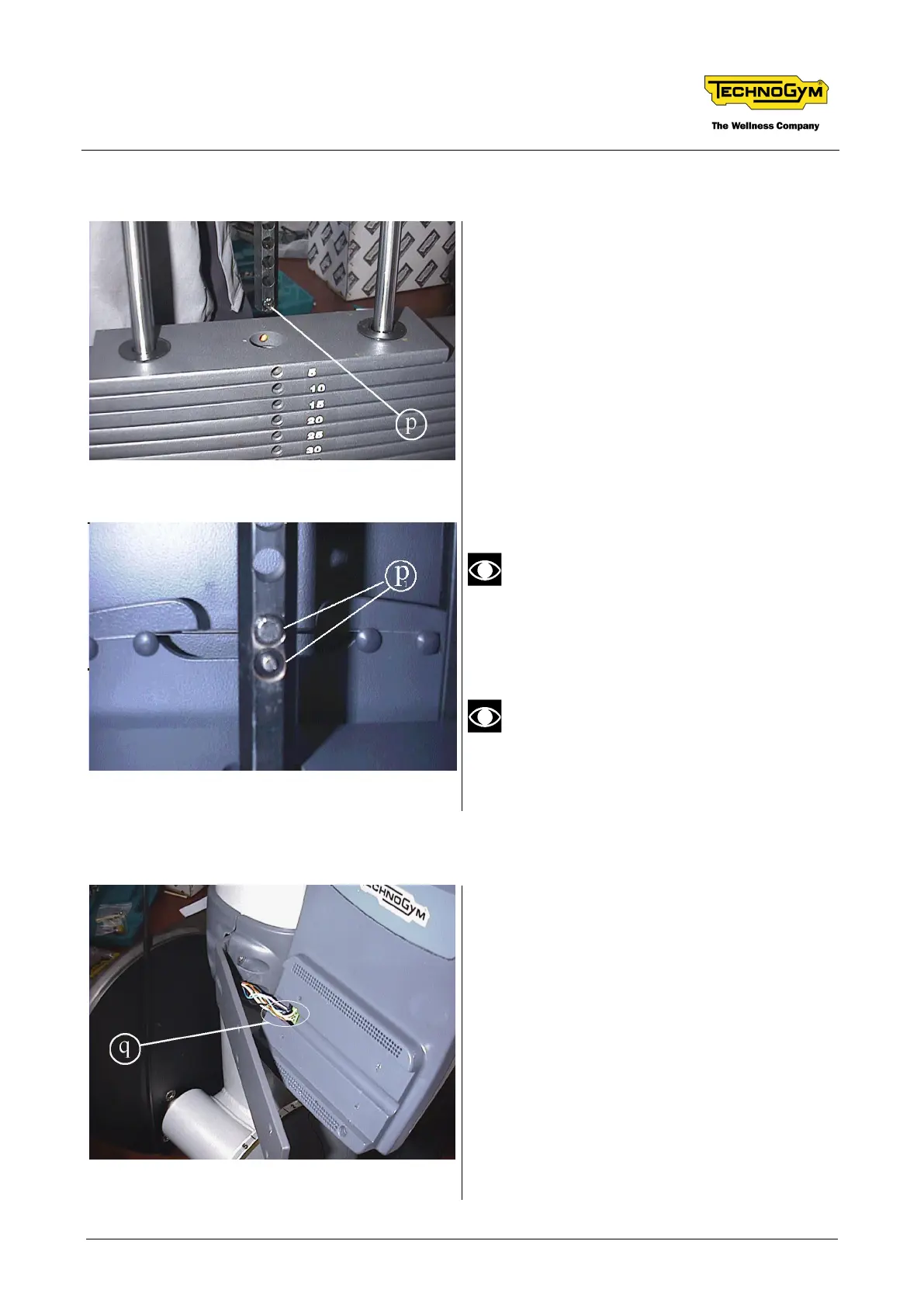

Photo 4.1-15
24. Do not select any plate, and raise the selector
until you can press the magnet p into the
lowermost hole.
Photo 4.1-16
For machines equipped with the easy
start lever, insert the small magnet in
the lowermost hole, and insert the larger
magnet in the second-last hole from the
bottom.
The magnets must be positioned with
the same pole facing the sensor.
4.1.5. WELLNESS MATE DISPLAY INSTALLATION
Photo 4.1-17
Assembling the display:
25. Pass the display cable into the slot on the
display support (see Photo 4.1-18).
26. Position the display, support and frame
holding clamps and precisely measure the
length of the display cable. The cable must be
taut, the rest must be reinserted in the frame.
27. Connect the display cable q to the connectors
provided on the back of the display.
