SELECTION LINE: Service & Maintenance Manual - rev. 4.0
Page 4.6

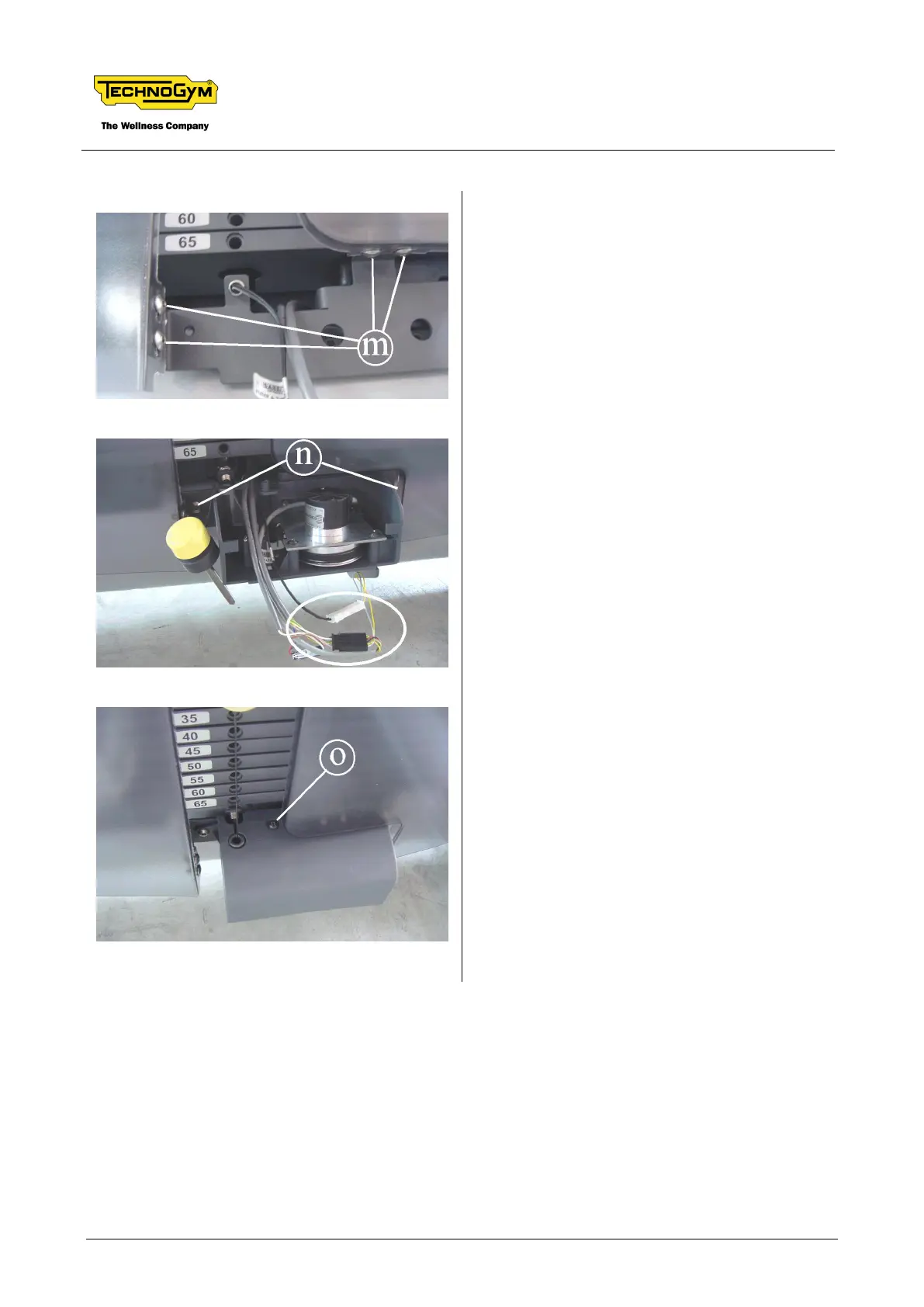

Photo 4.1-12
19. Reassemble the front casing taking care of
the four screws m which can’t be mounted
later on.
Photo 4.1-13
20. Fix the encoder assembly on its support
bracket using the screws n. Use a 4-gauge T-
wrench.
21. Connect the additional weight sensor cable
(2-pin cable) to the sensor itself and the
encoder cable (6-pin cable) to the encoder
itself.
22. Route the cables inside the encoder group, so
that they do not brush against the pulley or
against the encoder cable.
Photo 4.1-14
23. Fasten the encoder guard in place using the
screw o. Use a medium Phillips screwdriver.
