Technogym Selection M810 - Easy Start for Tall Machines

SELECTION LINE: Service & Maintenance Manual - rev. 4.0
Page 6.6
6.4. EASY START FOR TALL MACHINES
This operation applies to Chest Incline, Chest Press, Pectoral and Vertical Traction.

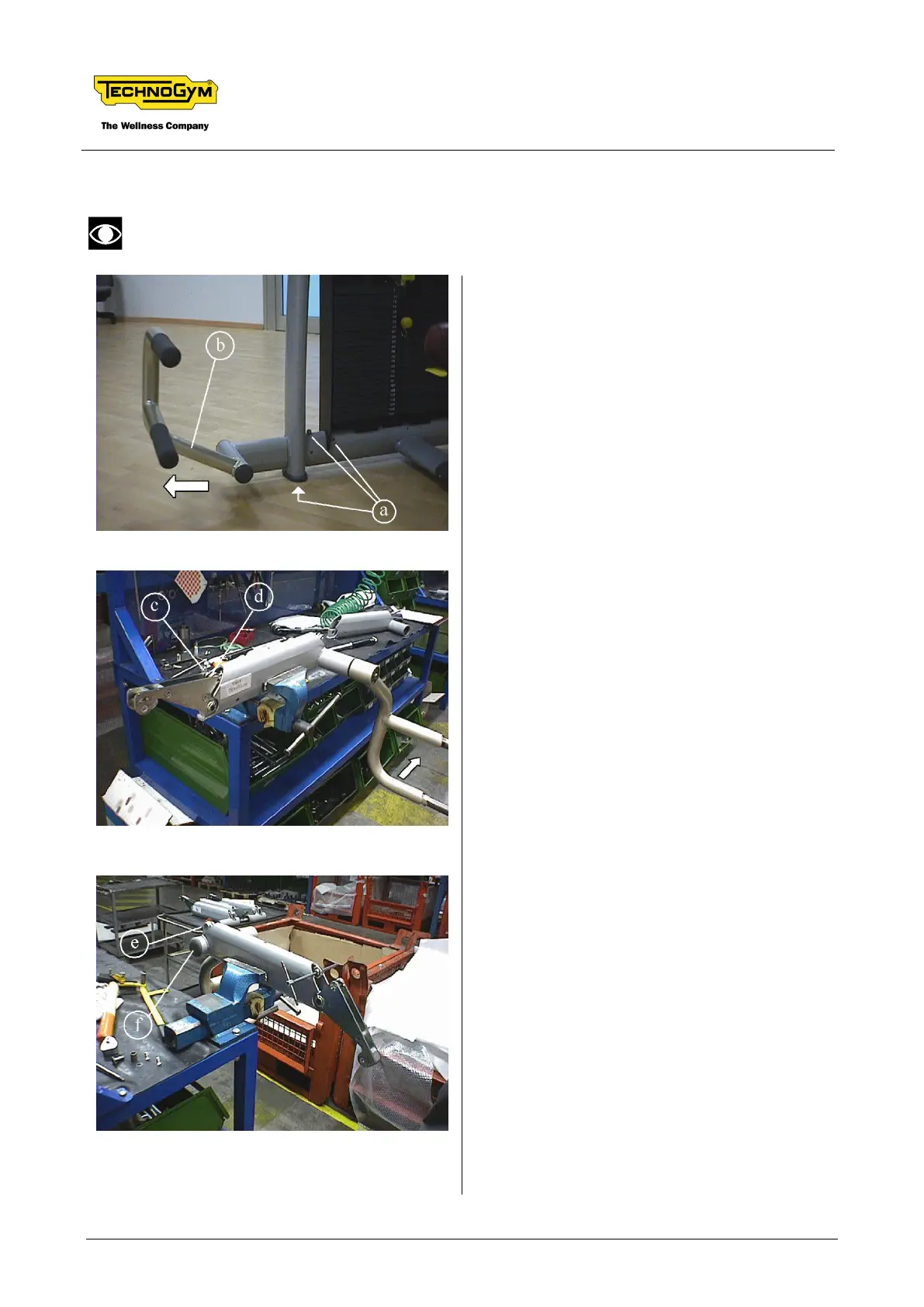

Photo 6.4-1
1. Use an 8-gauge hexagonal T-wrench to
unscrew the 3 screws a and remove the easy
start group b by sliding it forward.
Photo 6.4-2
2. Move the easy start group to the workbench
and fasten it in a vice.
3. Adjust the easy start lever in the direction
shown by the arrow.
4. Unscrew the screw c using a 6-gauge
hexagonal T-wrench.
5. Keeping the lever activated, insert a peg
remover tool in the hole of the ball joint of
the tie-rod e to keep the spring locked.
Photo 6.4-3
6. Unscrew the screw e using a 6-gauge
hexagonal T-wrench.
7. Remove the cap f and use a 25-gauge sector
wrench to unscrew the ring-nut below.
8. Remove the lever by sliding it out the side.
Continued on next page 
