6.8. BARBELL GUIDE SLEEVES ON THE MULTI POWER

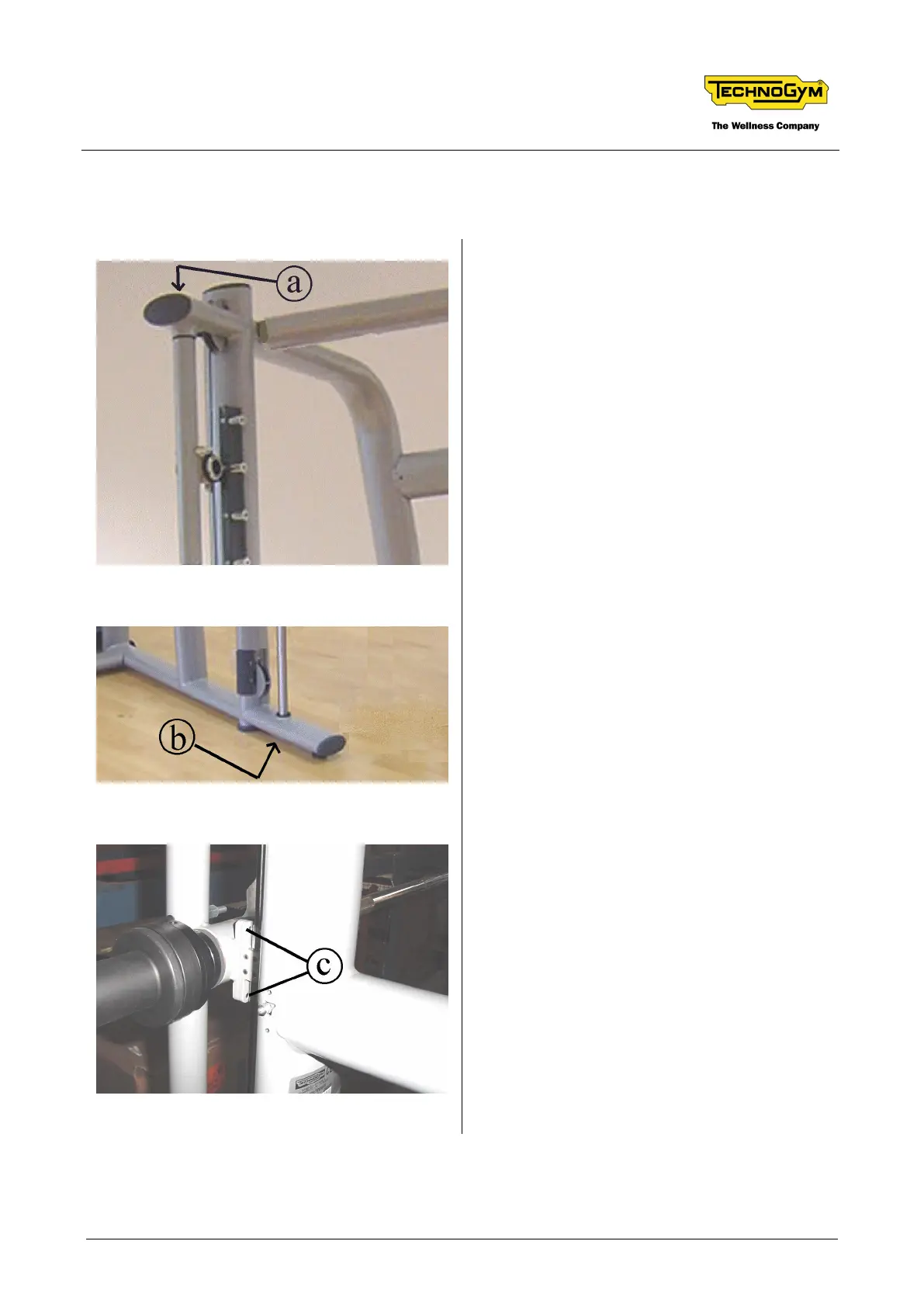

Photo 6.8-1
1. Disassemble the barbell, carrying out the
assembly procedure of paragraph 3.3.3.
M853 / M953 Multi Power in reverse order.
2. Using an 8-mm Allen wrench, back off the
screw a securing the bar on the upper part of
the frame.
Photo 6.8-2
3. Use a 14-mm hex wrench to back off the
screw b.
Photo 6.8-3
4. Use a 4-mm Allen wrench to back off the
screws c.
5. Remove the bar from its seat and pull out the
sleeve.
6. Reassemble all the components, carrying out
the procedure in reverse order.
