3.3.3. M853 / M953 MULTI POWER

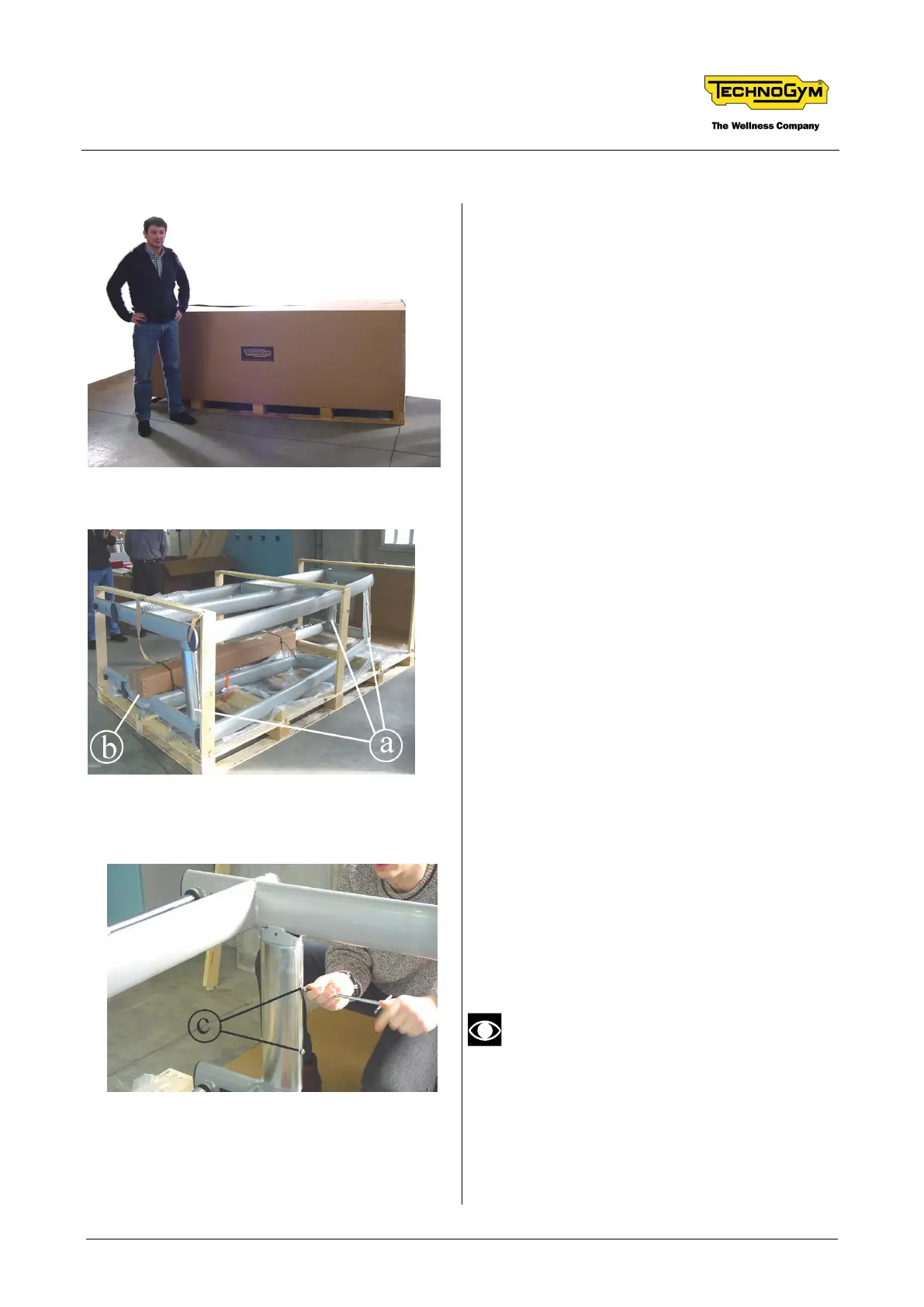

Photo 3.3-17
1. The Multi Power machine comes packed in a
single box fixed to a wooden pallet.
2. To move the machine, in view of the size of
the packing, it is necessary to use a pallet
truck.
Photo 3.3-18
3. Remove the outer packing carton, which
contains all the components necessary for
assembling the Multi Power.
 The two parts of the frame, which are
held together for shipping by three
provisional bars a;
 A box, b, which contains the definitive
crossbars for assembling the machine,
and all the weight plate storage posts
which must be assembled on either side
of the frame.
 The barbell, which comes already fully
assembled, and a shoulder rest pad.
Photo 3.3-19
4. Remove the entire wooden frame which
supports the outer carton.
5. Back off the screws c of the provisional bars
using a 6-mm Allen wrench. It is
recommended to completely back off the
upper screws, and to only loosen the lower
screws.
Keep all the screws removed during this
operation, for use subsequently to
assemble the permanent crossbars.
6. Raise the upper part of the frame, trying to
always keep it in a horizontal position to
facilitate the operation.
Continued on the following page 
