SELECTION LINE: Service & Maintenance Manual - rev. 4.0
Page 5.29
In the area circled in red in the figure above, the distance between the 2 plates has been modified
(reducing it by 2 mm) in order to facilitate movement of the selector pin.
This new lever is interchangeable with the preceding models and has order code 0N0024AA-*,
where the '*' character must be replaced with the desired color suffix:
The first machines produced with this modification have SN:
M817A04000633
M818A04000633
5.14.3. WASHERS

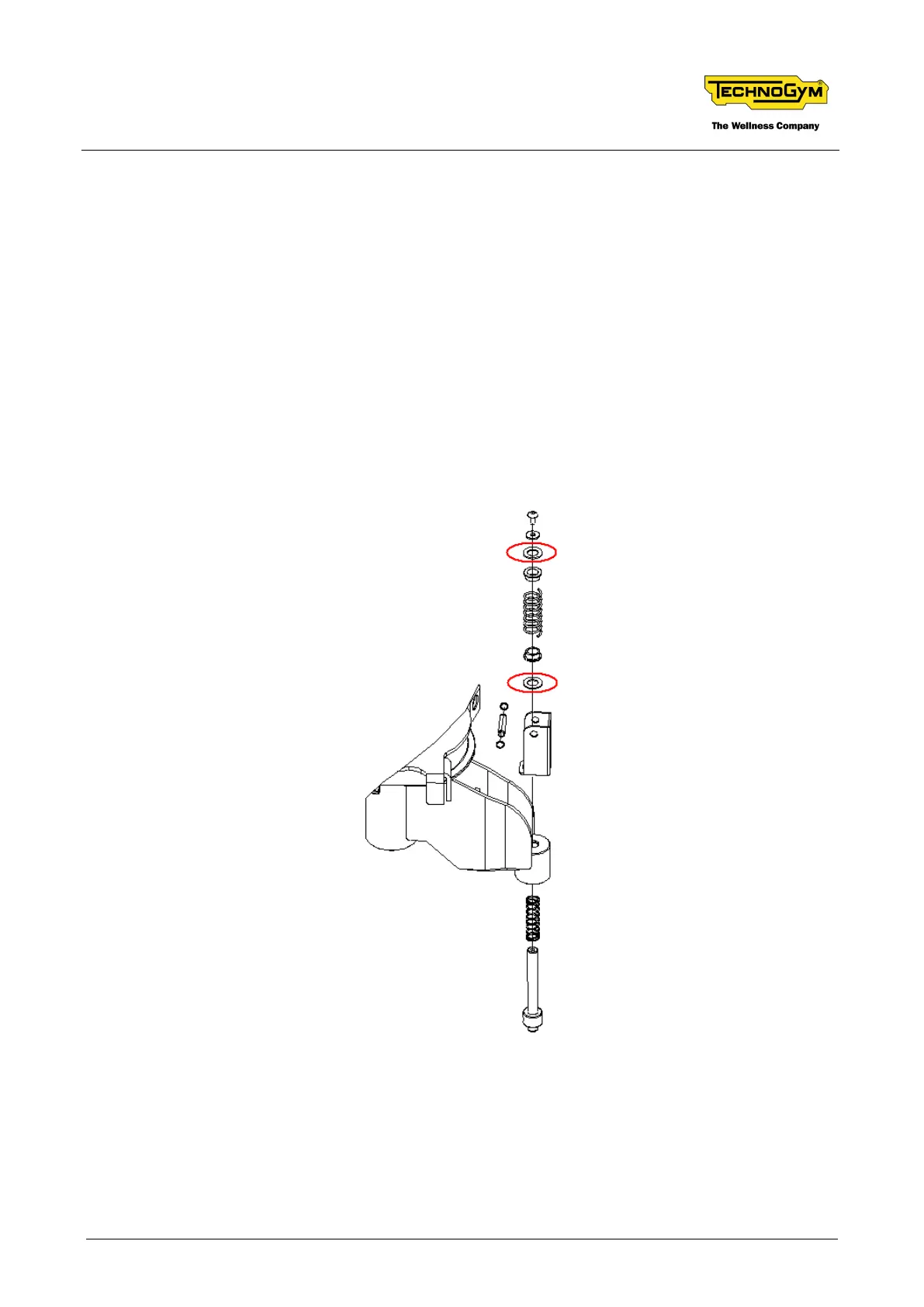

To prevent breakage of the bushings on the upper spring, and the resultant jamming of the selector
mechanism, 2 new washers have been added in the positions indicated below:
The order code of the washers is 0B000900AA. These can also be installed on already-installed
machines. Their introduction is concurrent with that of the new lever.
