Technogym Selection M810 - Appendix B: How to Replace the Old Knob-Pin Group with the New Knob-Pin Group Sh0000671

SELECTION LINE: Service & Maintenance Manual - rev. 4.0
Page 14.5
14. APPENDIX B: HOW TO REPLACE THE
OLD KNOB-PIN GROUP WITH THE
NEW KNOB-PIN GROUP SH0000671

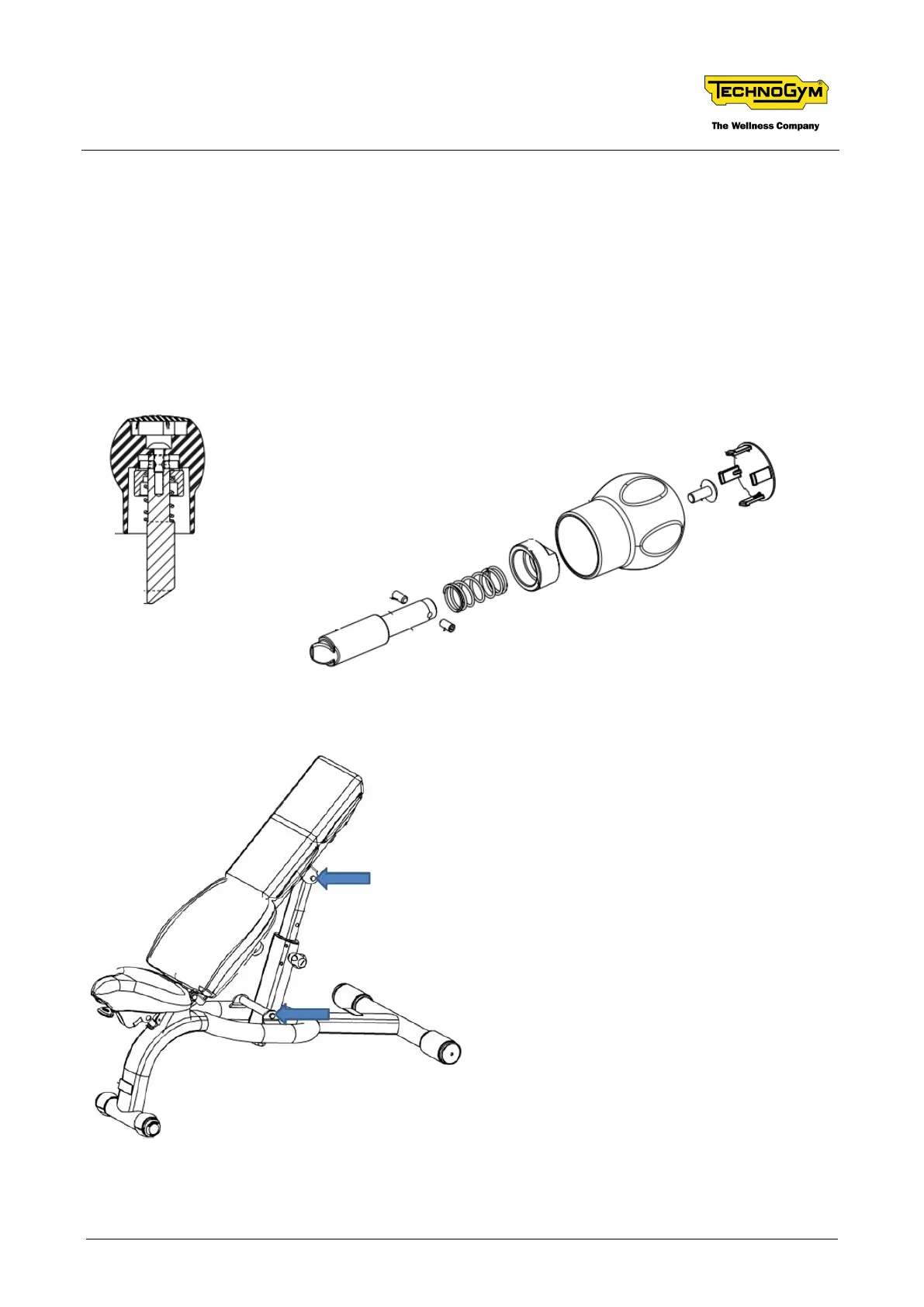

NEW KNOB – PIN GROUP CODE SH0000671:
1-Loose the bolts that fix the backrest. (TOOL: N° 2 17 mm spanner wrenches)
