SELECTION LINE: Service & Maintenance Manual - rev. 4.0

Page 14.6

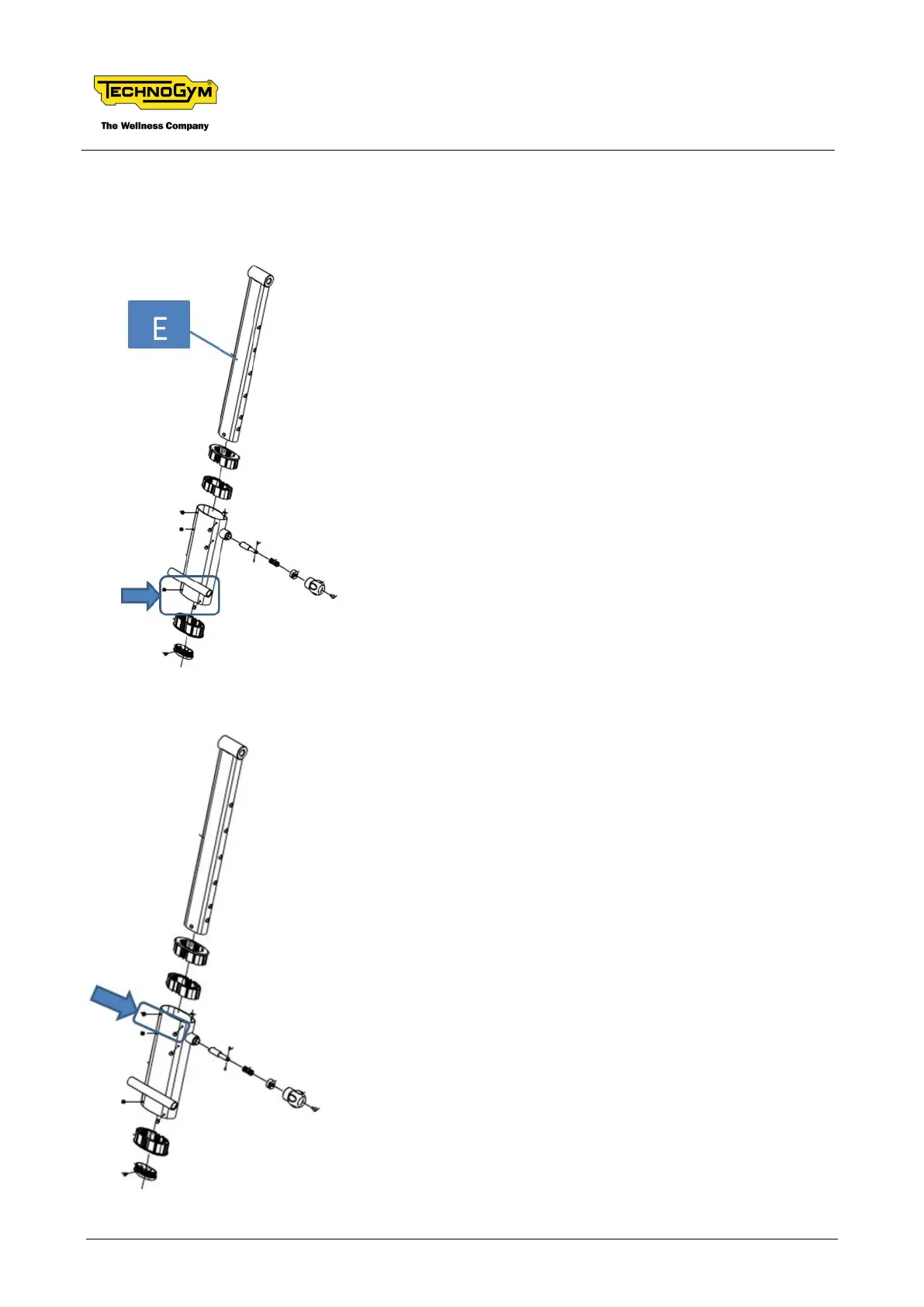

2-Remove the back adjustment (E). If necessary, remove the lower rivets (see arrow) before

removing the back adjustment (E). (TOOL: drill)

3-Remove the upper rivets (see arrow). (TOOL: drill)
