6.3. LEG PRESS SEAT

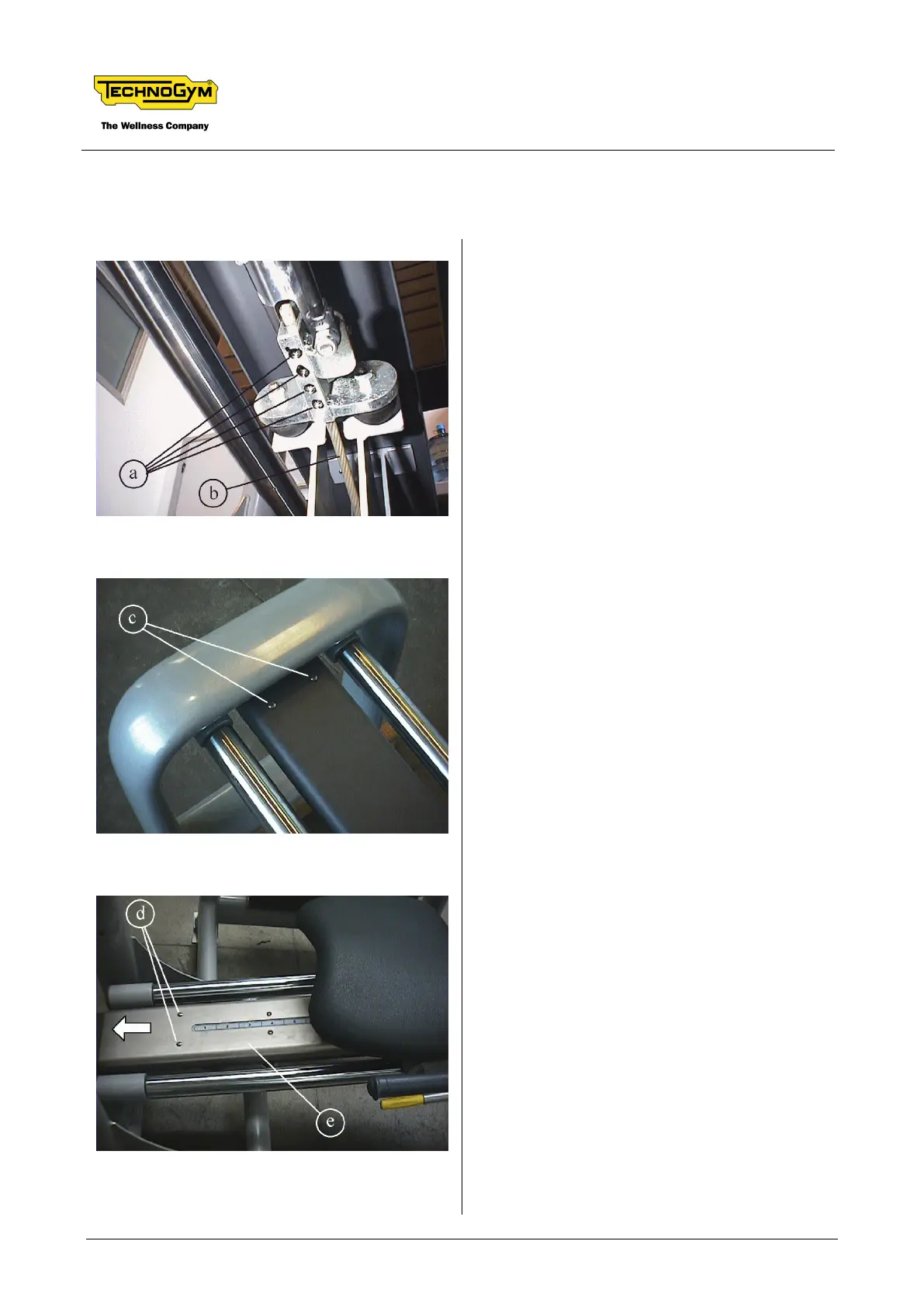

Photo 6.3-1
1. Loosen the 4 dowels a, using a 4-gauge
hexagonal T-wrench.
2. Remove the cable b.
Photo 6.3-2
3. Unscrew the 2 screws c, using a 4-gauge
hexagonal T-wrench.
Photo 6.3-3
4. Remove the mat, if present.
5. Unscrew the 2 screws d using a 4-gauge
hexagonal T-wrench.
6. Remove the sheet metal e by pulling it
forward.
Continued on next page 
