SELECTION LINE: Service & Maintenance Manual - rev. 4.0
Page 4.13
4.2. PLATES HOLDERS
Olympic Bench Press and Inclined Bench Press can be fitted with Plate holders, as an option. Plates
holders will mounted directly on the frame of the benches.

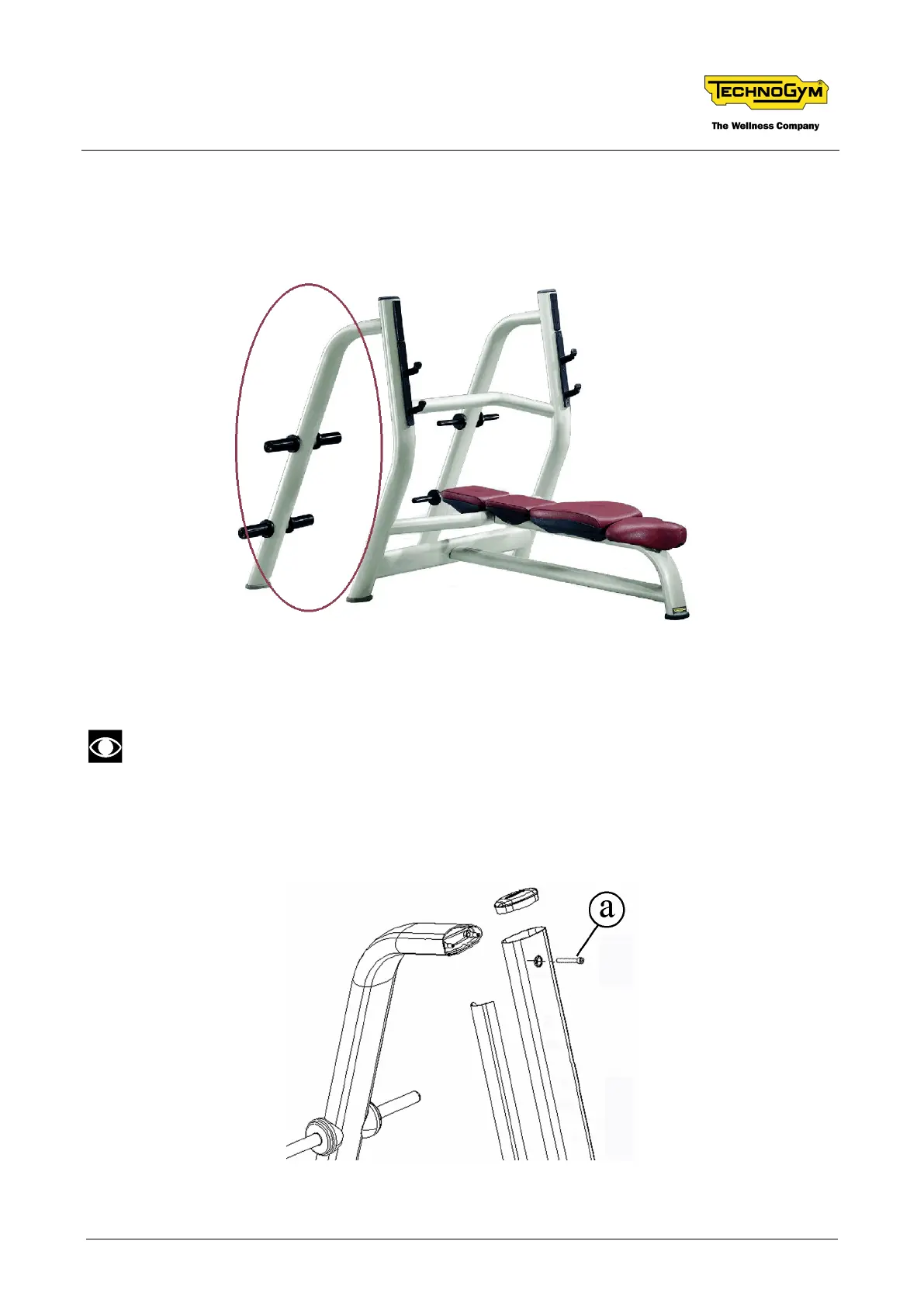

Photo 4.2-1
An accessory is highlighted in the figure above, and identified by the code A0000070-*, where “*”
is the frame colour suffix (see Table 2-1 and Table 2-3).
Personal Selection machines need to add the suffix “GD” (plastic colour) after the frame
colour suffix, ex. A0000070-CLGD.
To assemble this accessory, simply lock down the screw a shown in the figure below using an 8-mm
Allen wrench.
