6.2. SEAT ON TALL MACHINES
This operation applies to Arm Curl, Arm Extension, Chest Incline, Chest Press, Delts,
Low Row, Pectoral, Pull Down, Shoulder Press, Upper Back e Vertical Traction.

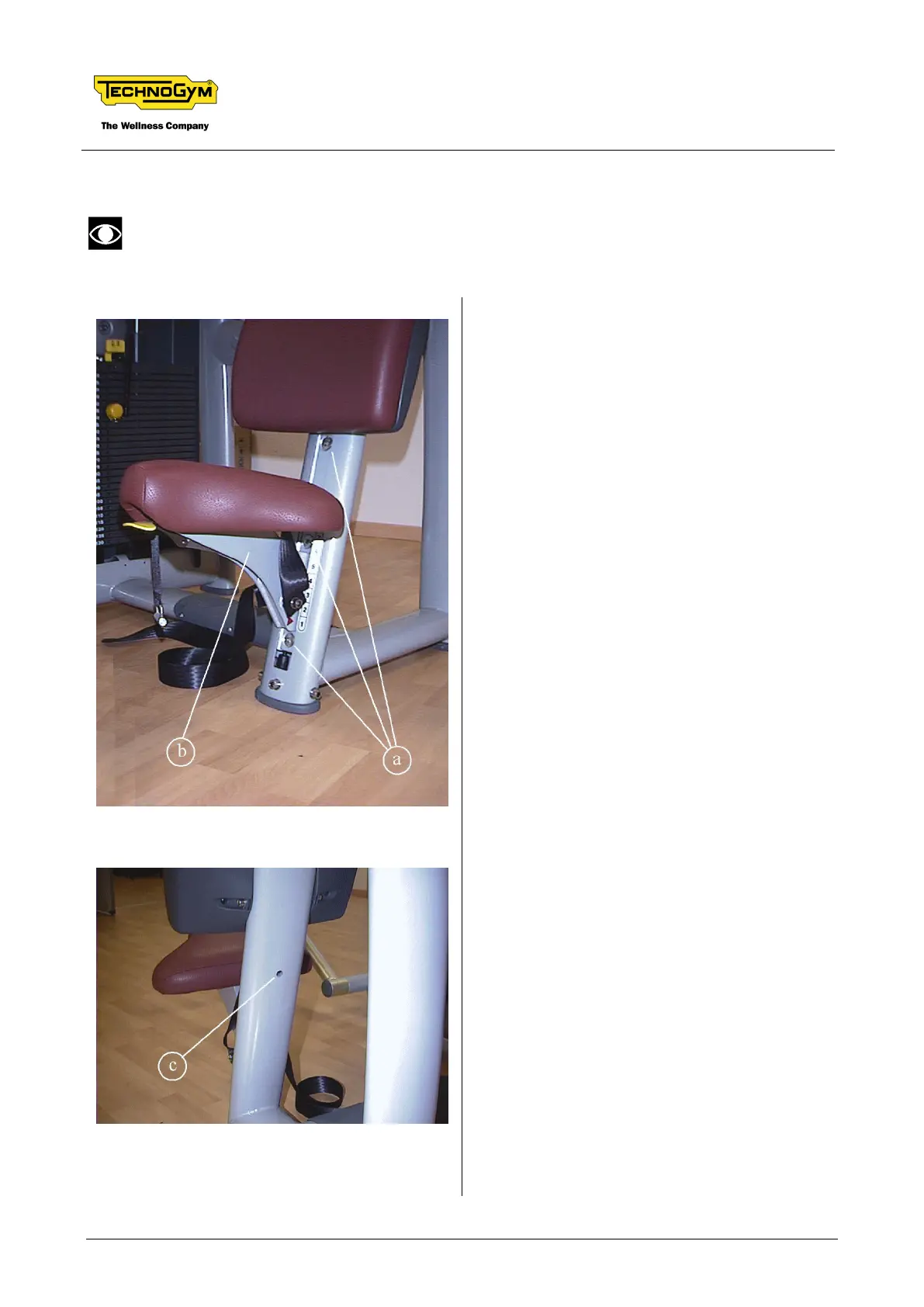

Photo 6.2-1
1. Move the seat into position 1 (all the way up)
so that the gas spring is as fully extended as
possible.
2. Unscrew one of the three screws a using an
8-gauge hexagonal T-wrench.
3. Screw the removed screw into the hole c
shown in Photo 6.2-2 to fasten the seat
sliding group to the machine frame.
Photo 6.2-2
4. Unscrew the other 2 screws a using an 8-
gauge hexagonal T-wrench.
5. Remove the seat b.
Continued on next page 
