Technogym Selection M810 - Machines with Cross with Doubling Pulley

SELECTION LINE: Service & Maintenance Manual - rev. 4.0
Page 6.11
6.6.2. MACHINES WITH CROSS WITH DOUBLING PULLEY
This operation applies to Arm Curl, Arm Extension, Chest Incline, Chest Press, Delts,
Multi Hip, Pectoral, Pull Down, Rotary Torso, Shoulder Press, Upper Back and Vertical
Traction.

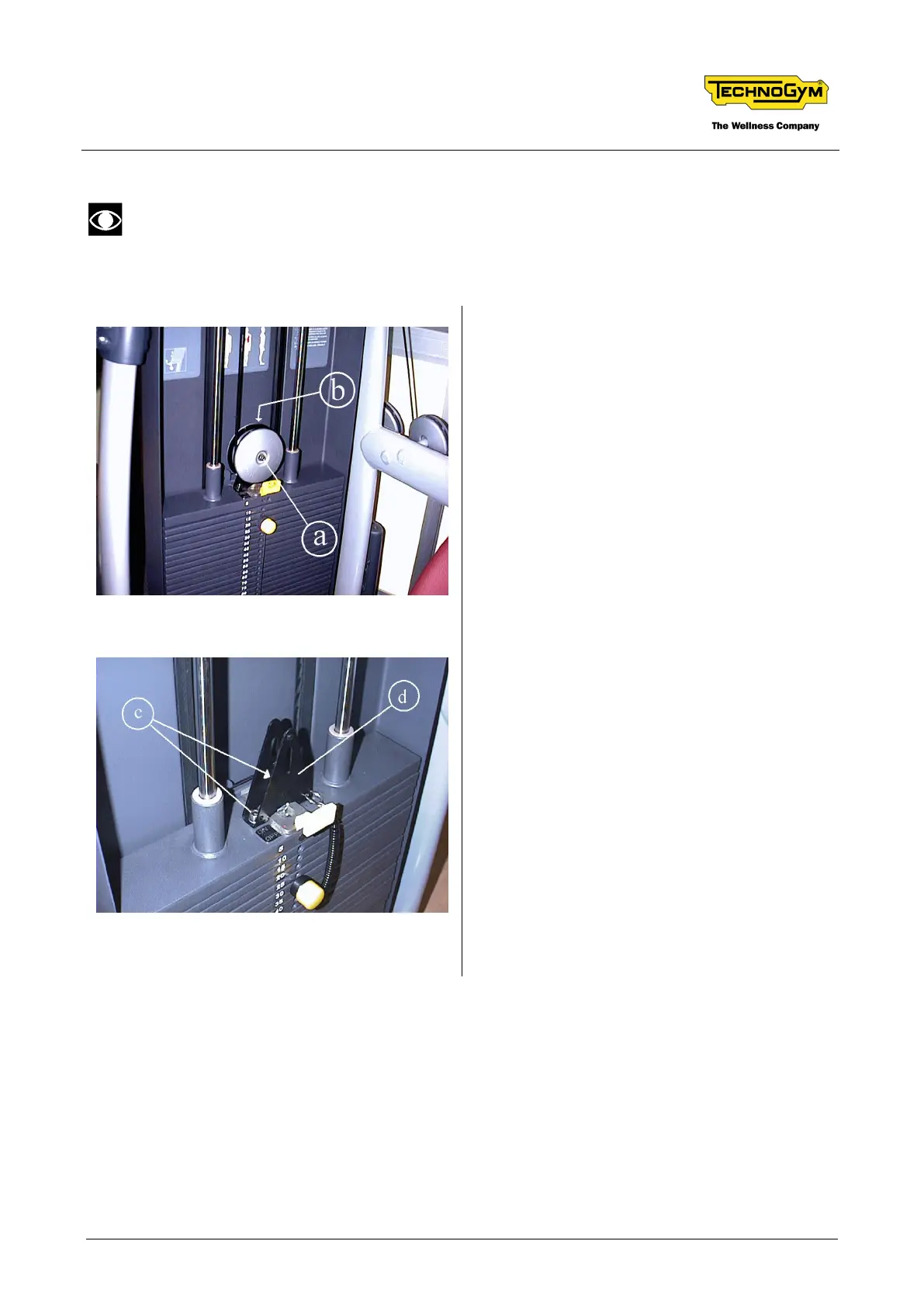

Photo 6.6-2
For machines with doubling pulley:
1. Loosen the cable tension and lock the levers.
2. Unscrew the screw a using an 8-gauge
hexagonal T-wrench, holding the nut b in
place with a 17-gauge wrench.
3. Remove the pulley and pulley cover to free
the cable.
Photo 6.6-3
4. Unscrew the 2 screws c, using an 8-gauge
hexagonal T-wrench.
5. Remove the support d.
Continued on page 6.12
