5.11.2. MACHINES WITH M12 JOINT
It’s now available the solution to update all the machines with the old M12 joint to M18 one.

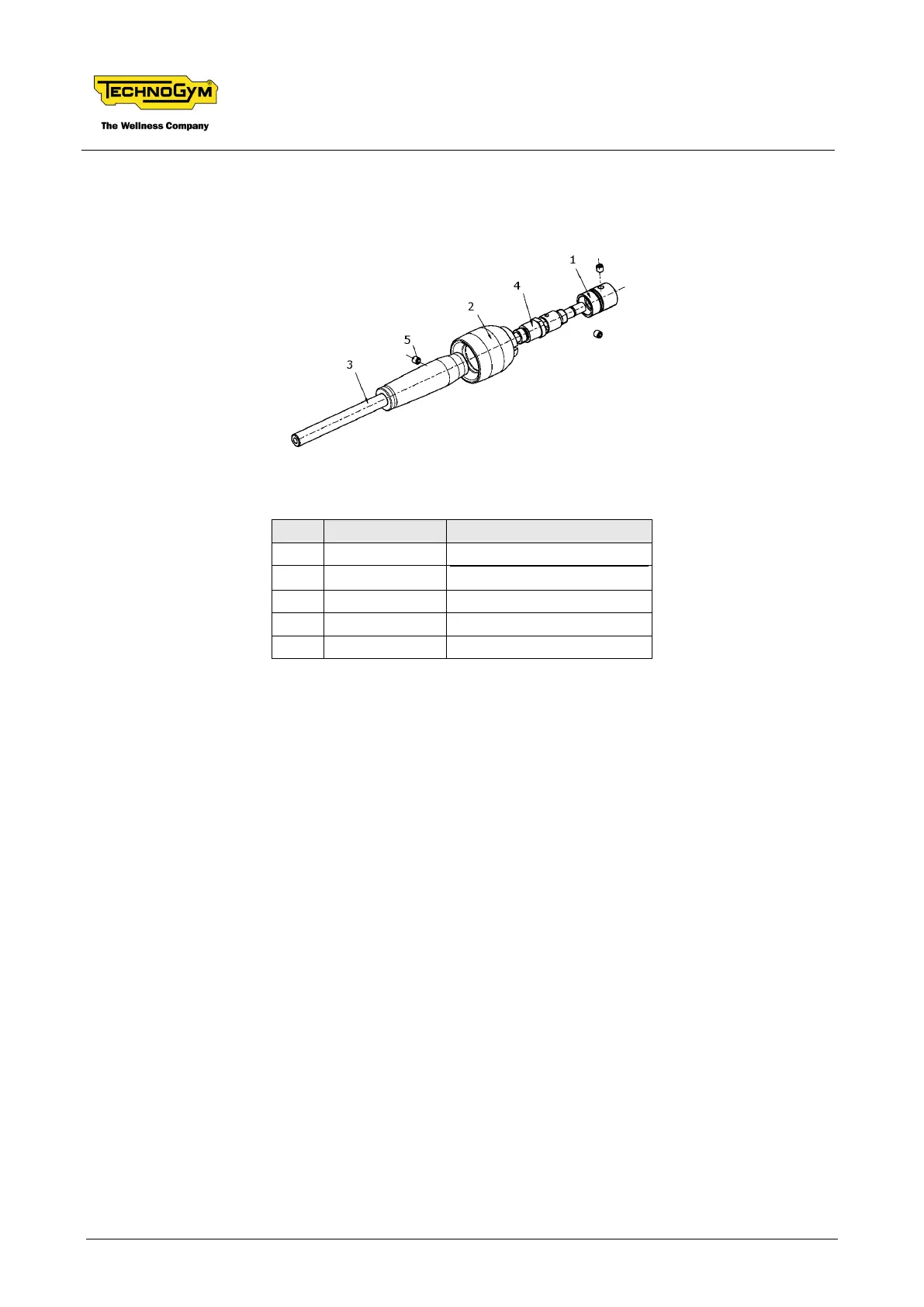

The following parts are necessary:
Ref.
Code
Description
1
0B000724AA
M30 reducer to M18
2
0G000271AB
Lever cap
3
0N000137
Handle M18
4
0R000064AB
Coupling M18
5
0ZV00054
Dowel M8
A kit has been created containing all of these pieces for both levers, with code A0000149AA.
Proceed as follows to install:
1. Remove the handle, coupling and M30-M12 adapter from the machine;
2. Mount the coupling (0R000064AB) on the handle using an 18-gauge wrench;
3. Tighten a metal dowel (0ZV00054) to fasten the coupling to the handle;
4. Enter the plastic bushing (0G000271AB);
5. With a peg remover tool inserted in the hole, mount the coupling-handle on the M18-M30
adapter (0B000724AA) and tighten the dowel (0ZV00054);
6. Screw the adapter onto the lever;
7. Tighten the dowel to fasten it all to the lever.
