4. ACCESSORIES
For details, see Marketing Material.
4.1. INTEGRATION WITH THE WELLNESS SYSTEM
On the Selection machines is possible to install both Wellness Mate and Power Control. The
installation procedure is similar and differs only for what concern the display installation. What
follows is the detailed installation procedures of both upgrade kit:
4.1.1. ADDITIONAL WEIGHT INSTALLATION
Do that only on machines provided with additional weight.

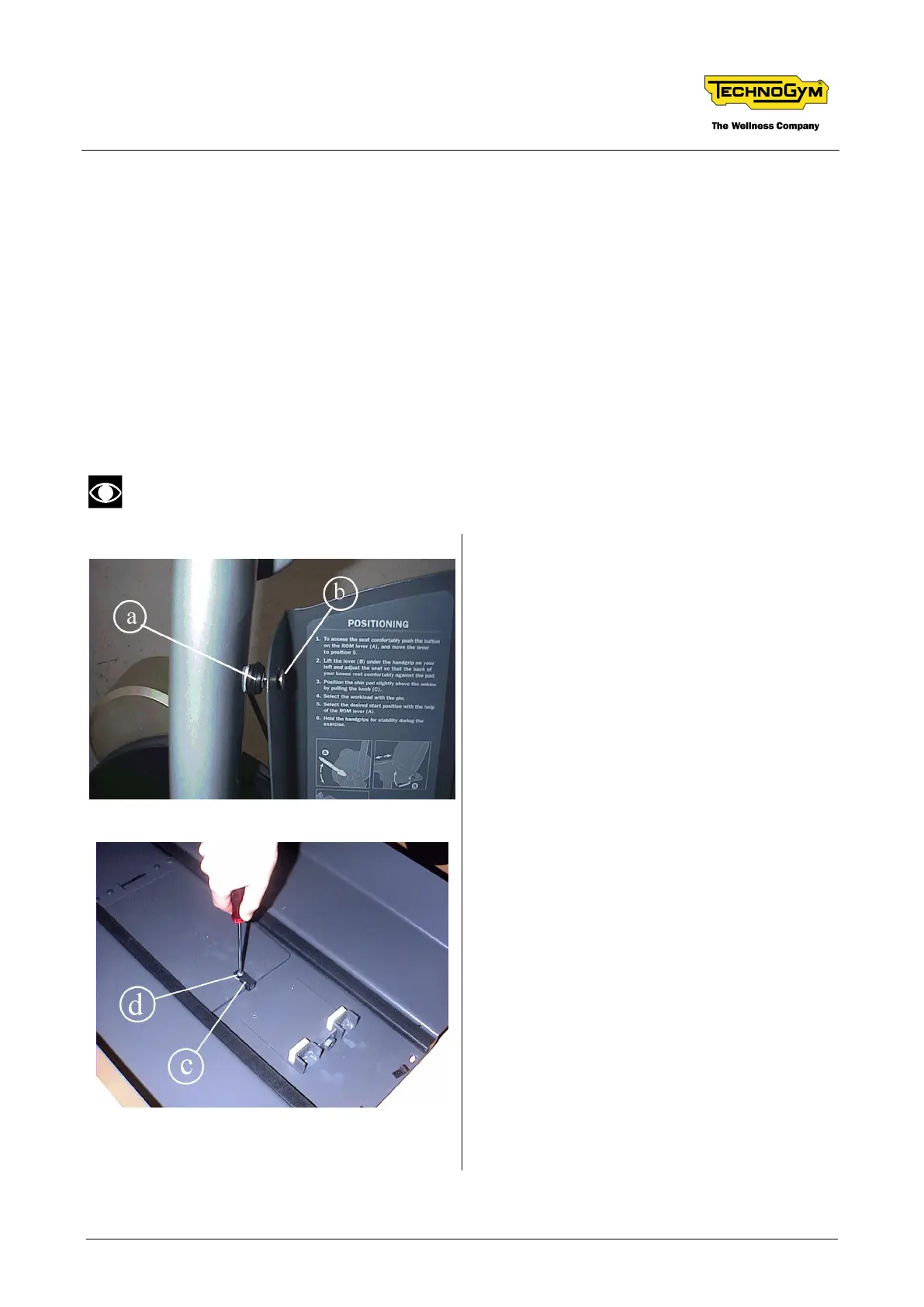

Photo 4.1-1
Disassembling the front casing on Personal
Selection:
Disassemble the front casing as detailed in
paragraph 6.9. “Front weight stack casing”.
Disassembling the weight stack safety guard:
On both side:
1. Loosen the counter-nut a using a 13-gauge
wrench.
2. Unscrew the screw b using a 4-gauge
hexagonal T-wrench.
Photo 4.1-2
Changing the additional weight (if available):
Tip the previously disassembled weight stack
safety guard over onto the floor:
3. Fasten the magnet holder c to the additional
weight using the screw d with a medium-size
Philips screwdriver.
