3.3. INSTALLING THE MACHINE TO BE ASSEMBLED
3.3.1. M824 / M924 ERCOLINA CROSSOVER CABLE

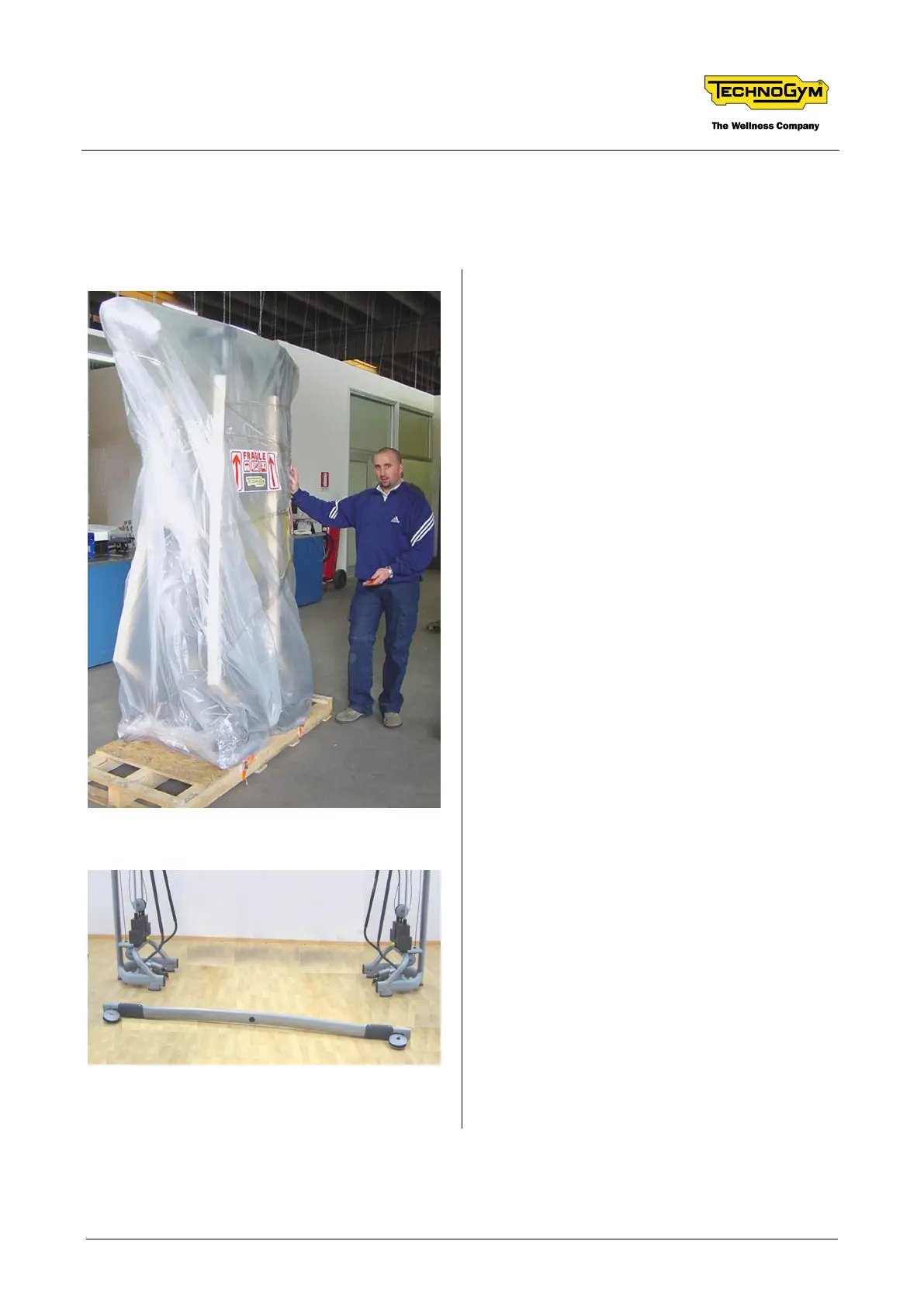

Photo 3.3-1
1. The Crossover Cable is delivered on a
wooden pallet, wrapped in nylon bag as
shown in the figure.
2. To move the machine, it is necessary to use a
pallet truck or fork lift truck
Photo 3.3-2
3. Remove the nylon bag and arrange the
various components needed to assemble the
machine on the floor, as shown in the figure:
 The two columns with the weight stack
(Ercolina);
 The crossbar.
Continued on the following page 
