5.12.2. NEW MACHINES
Starting from the SN M850A04000293 machine, has been introduced the following modification.

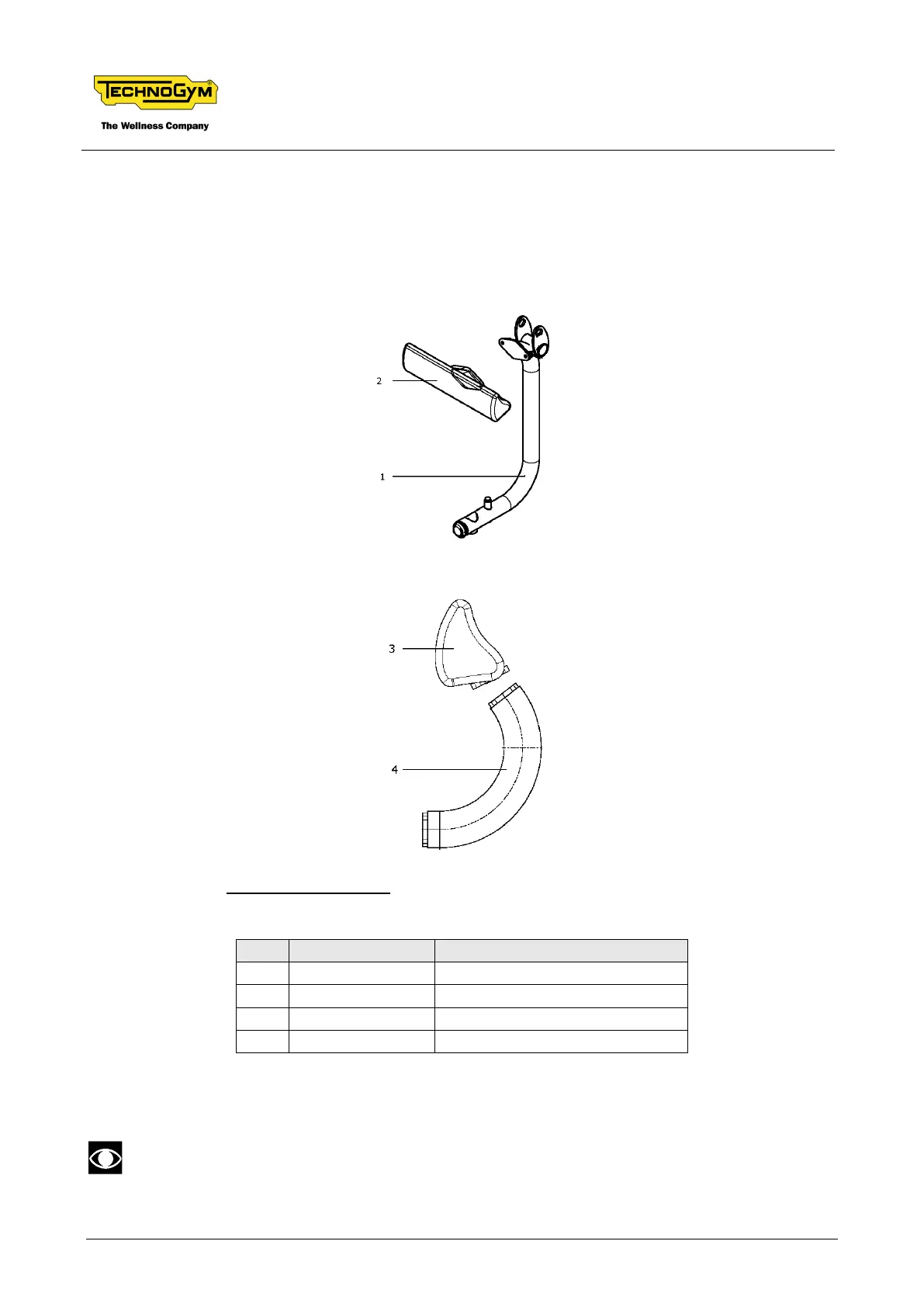

The solution, illustrated in the figure below, involves adoption of a new single-piece lever, and also
requires modification of the back rest pad:
and the lumbar pad:
This solution is not interchangeable with the preceding one. The order codes of the new
components are:
Ref.
Code
Description
1
0D001476AA-*
Lever
2
0I000264AA-§
Upper pad (back)
3
0I000297AA-§
Lower pad (lumbar)
4
0D001480AA-*
Lumbar pad support
Where the * character must be replaced by the desired frame color variants, and the § character with
the desired padding color variant.
As a result of this modification, the rubber cover 0G0064, which previously protected
the join between the 2 parts of the lever, is no longer used.
