SELECTION LINE: Service & Maintenance Manua
l -
rev. 4.0
Page 3.46

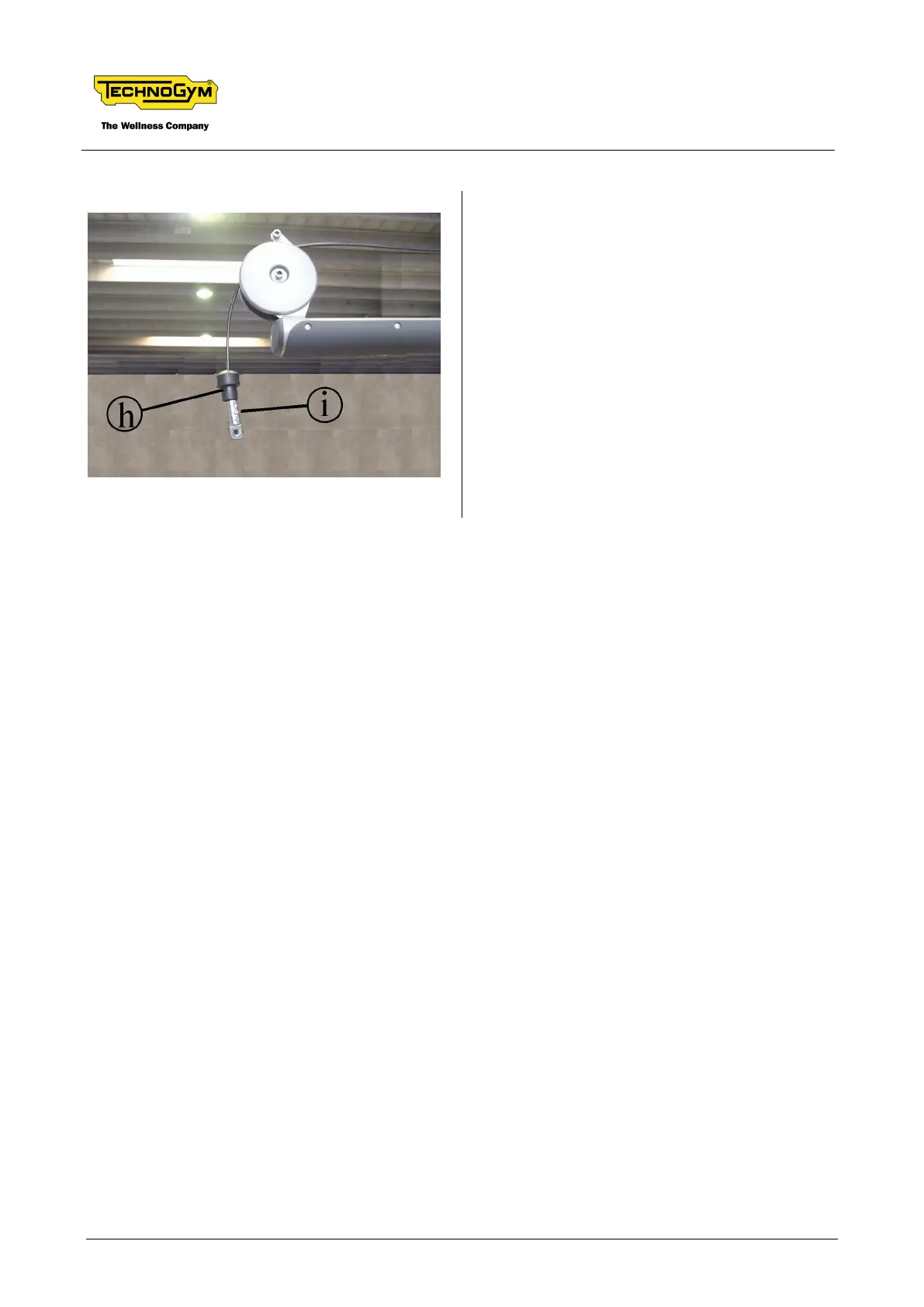

Photo 3.3-16
14.
After
passing
the
cable
through
both
pulley
s
of
the
arm,
insert
the
rubber
cover
h
on
the
cable
and
assemble
the
end
piece
i
,
locking
down
the
three
grub
screws
shown
in
the
figure, using
a 4-mm Allen wrench.
