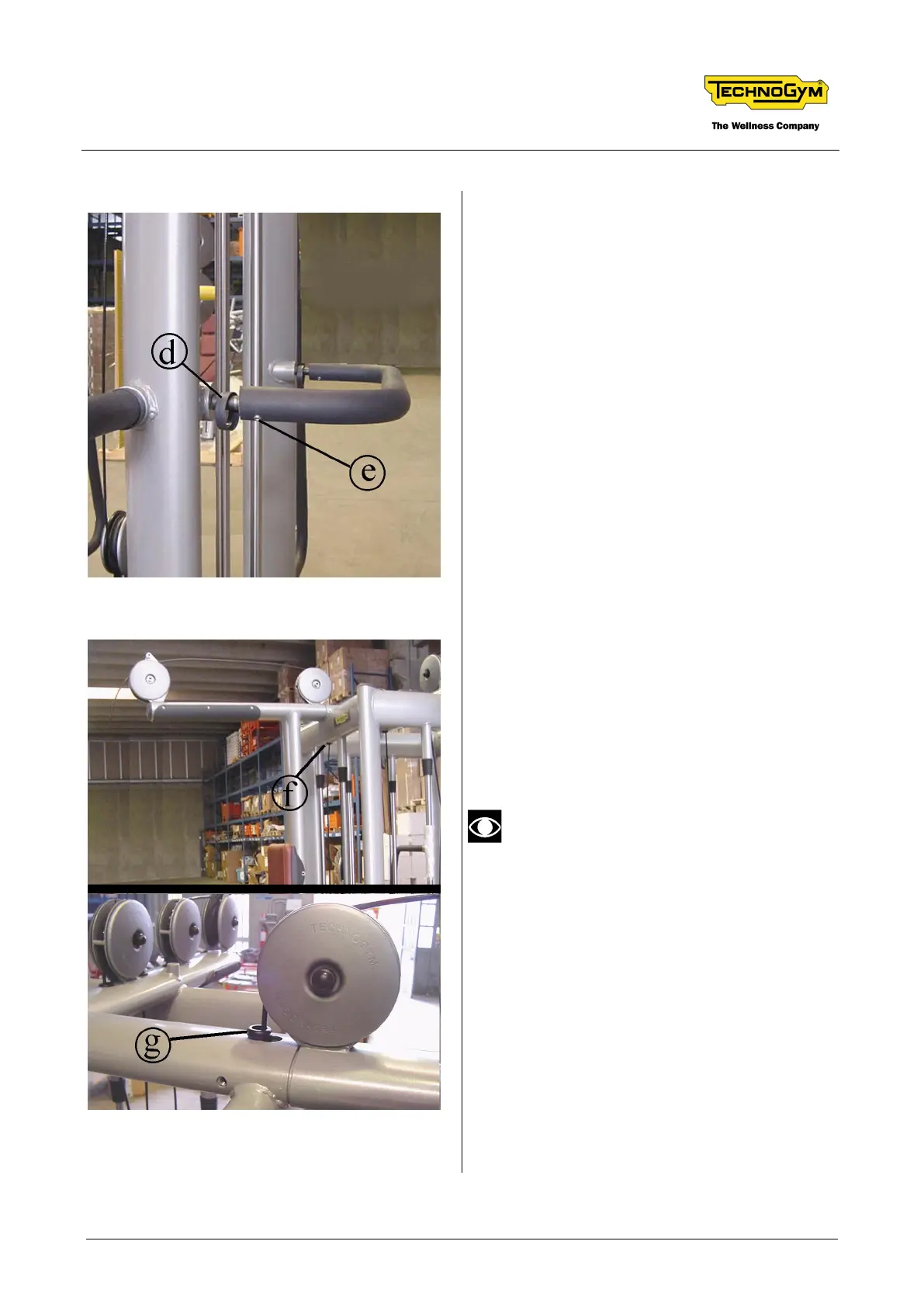

9. Insert the handlebar on its posts, after having
also inserted the components d.
10. Lock down the grub screws of the handlebars
e using a 4-mm Allen wrench.
11. Take the cables from the wooden box and
screw the crimped end onto the weight stack
cross using a 22-mm wrench.
The longer cable goes on the weight
stack of the side with back rest.
12. Pass the cable through the hole f in the frame
so that it comes out from the top, fit the
rubber cable holder g to protect the cable
from the edges of the hole, and pass the cable
through the pulleys of the arm.
13. Repeat the procedure for the second arm.
