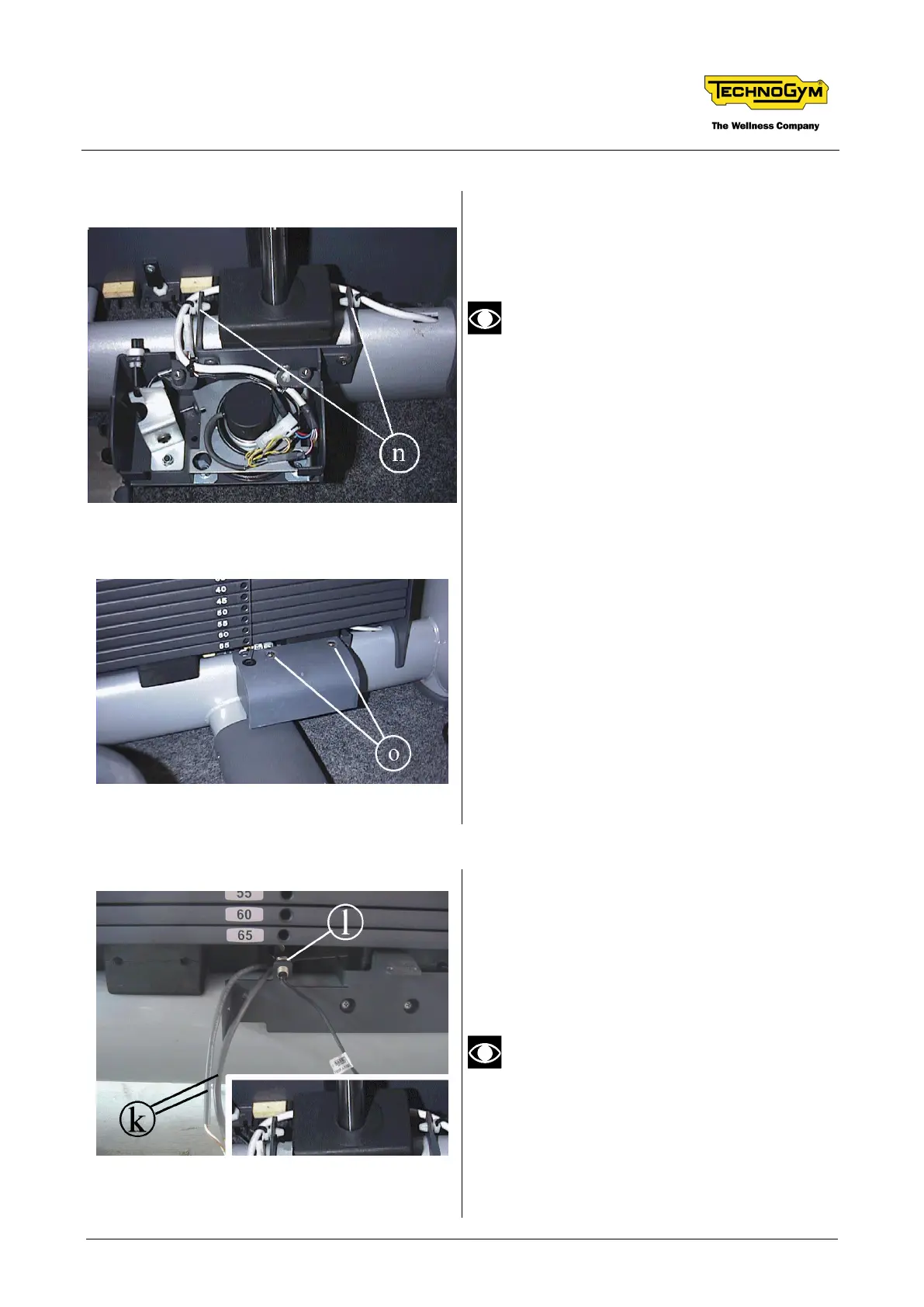

12. Pass the cables as shown in the photo
alongside, and fasten them to the encoder
support using parts n.
Make sure that the cables are not
crushed by the weight stack and guard
to be mounted later.
13. Connect the additional weight sensor cable
(2-pin cable) to the sensor itself.
14. Connect the encoder cable (6-pin cable) to
the encoder itself.
15. Route the cables inside the encoder group, so
that they do not brush against the pulley or
against the encoder cable.
16. Fasten the encoder guard in place using the 4
screws o. Use a 4-gauge T-wrench.
4.1.3.2. Personal Selection
Assembling the encoder group:
17. Pass the cables under the weight stack and
fasten them to the encoder support using two
cable ties, as shown in the photo alongside.
Make sure that the cables are not
crushed by the weight stack and guard
to be mounted later.
18. Mount the reed sensor on the encoder support
bracket using its threaded support l.
