SELECTION LINE: Service & Maintenance Manual - rev. 4.0
Page 4.8

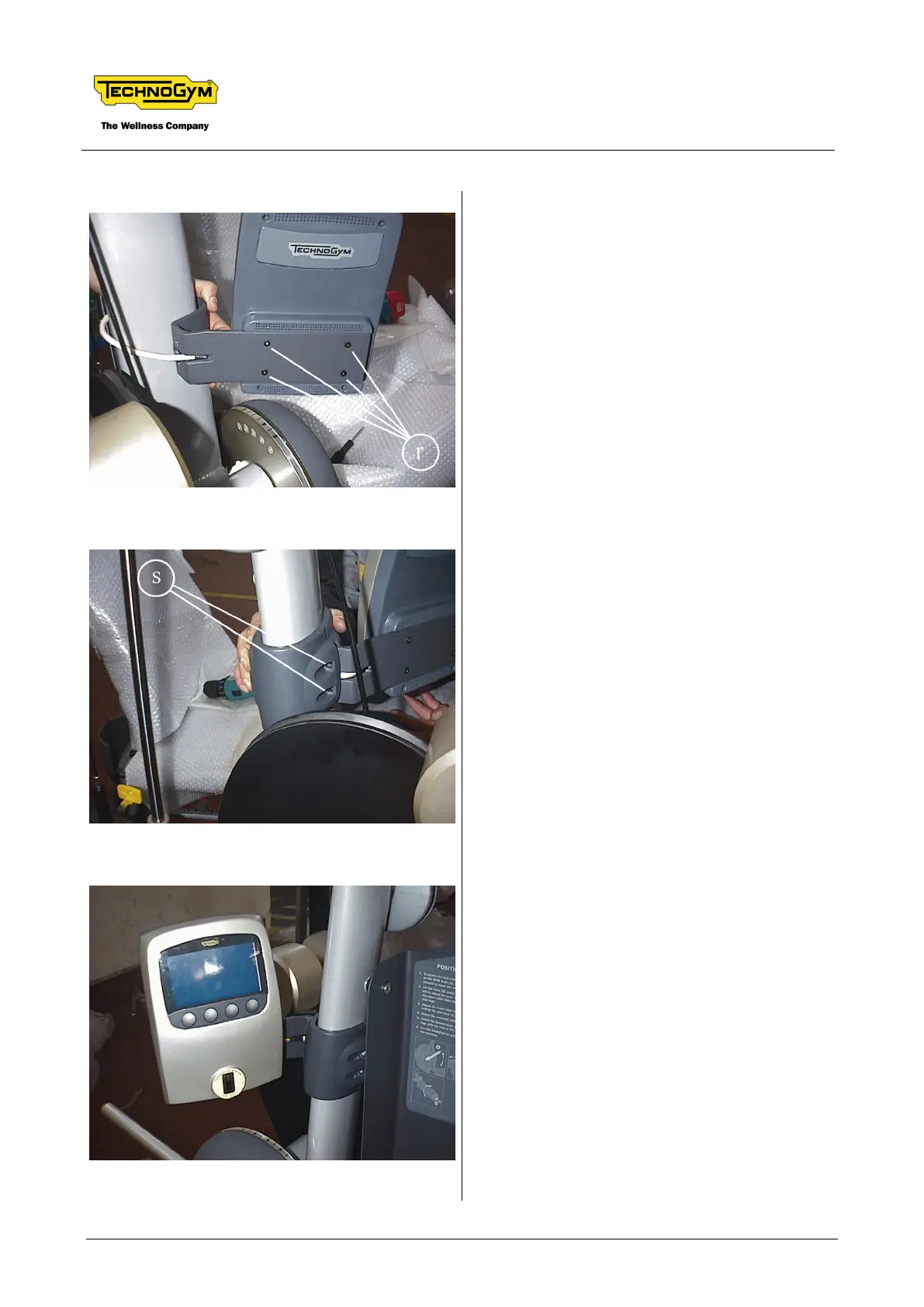

28. Fasten the display to its support using the 4
screws r (use a medium-size Philips
screwdriver).
29. Fasten the display support to the frame using
the locking clamps.
30. Pass the cable inside the rear clamp (see
Photo 4.1-18).
31. Fasten the clamps using the 4 screws s, 2 on
each side (use a 4-gauge hexagonal T-
wrench). The holding nuts of the screws may
be sunk in the clamps, or external (use an 8-
gauge pipe wrench).
Reassembling the weight stack safety guard:
32. Reassemble the previously disassembled
weight stack safety guard.
33. The installation is now complete.
