SELECTION LINE: Service & Maintenance Manual - rev. 4.0

Page 5.13

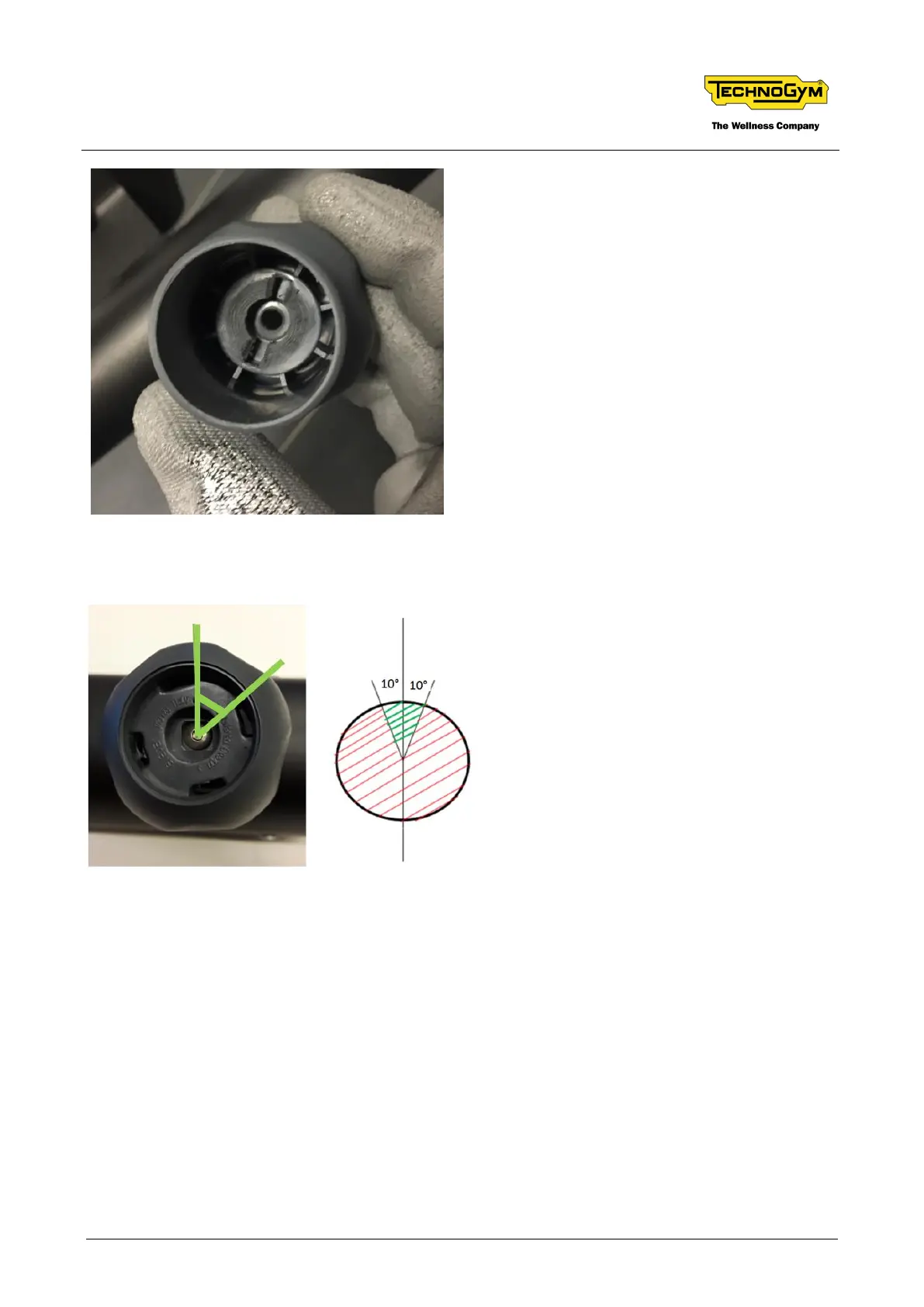

KNOB IN DETAIL

NOTE: if you turn the knob, the rotation must be within the angle highlighted in figure below, in

correspondence of two sections.
