SELECTION LINE: Service & Maintenance Manual - rev. 4.0

Page 5.15

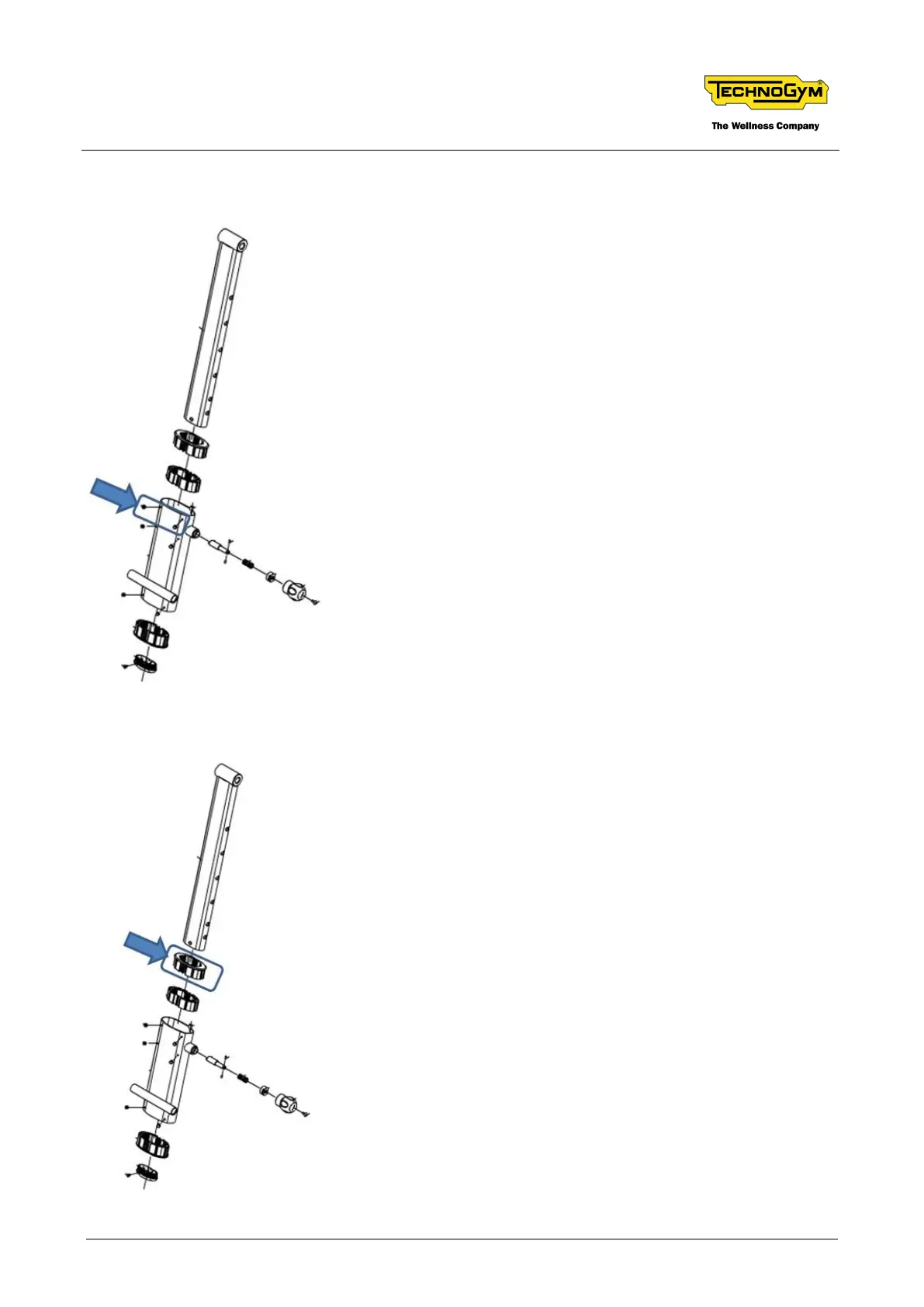

3-Remove the upper rivets (see arrow). (TOOL: drill)

4-Slide the bushing (see arrow) out of the selector tube.
