SELECTION LINE: Service & Maintenance Manual - rev. 4.0
Page 7.4

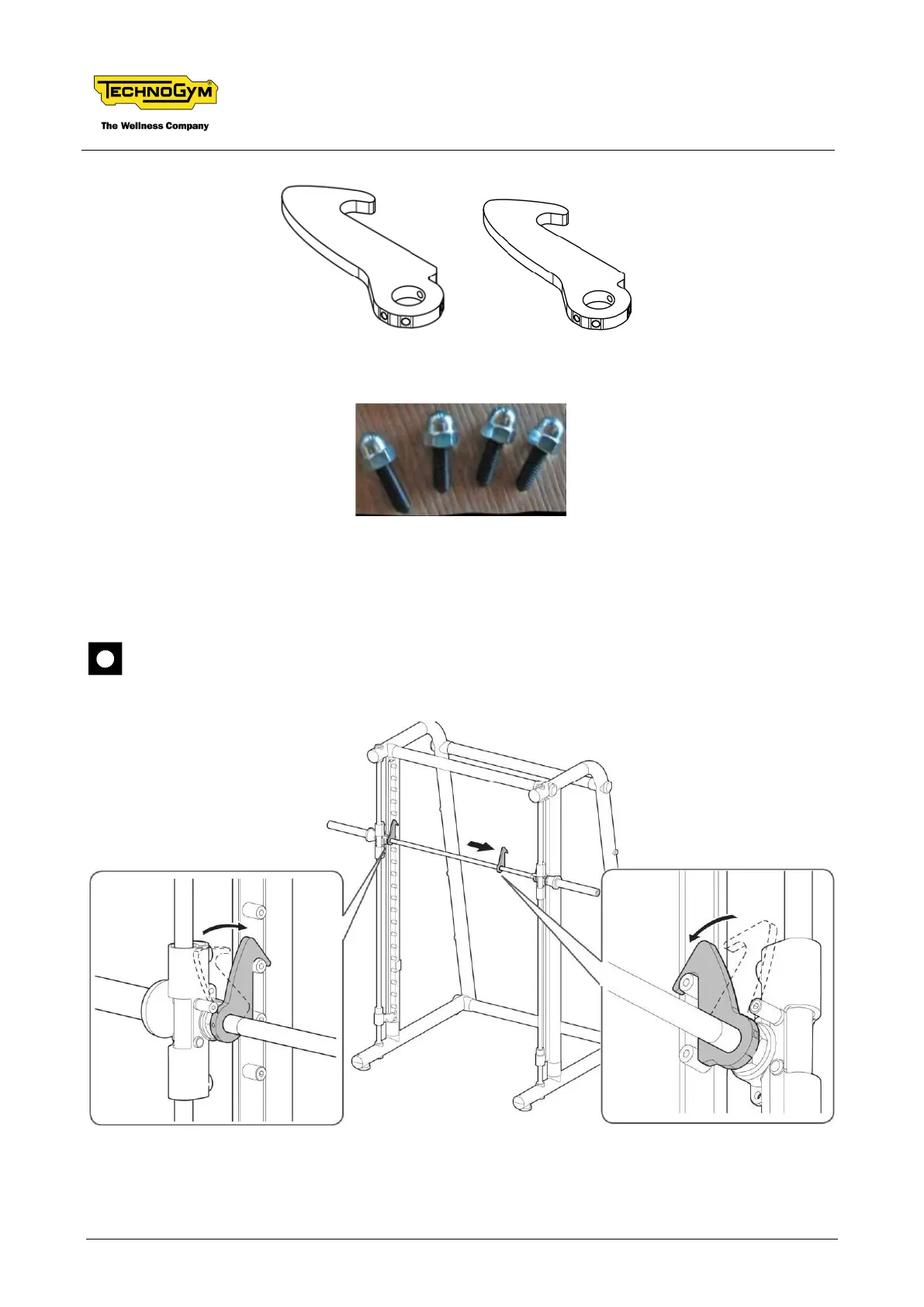

HOOKS IN DETAIL
SCREWS IN DETAIL
INSTALLATION PROCEDURE OF THE KIT
Replace the two hooks with the hooks provided in the kit. Secure them with the special sharp screws,
using a 13mm hexagonal wrench.
WARNING: Apply Loctite 243 along the thread of each special sharp screw, and tighten it using
a torque wrench set to 25N m – 18.5 lbf-ft.
