SELECTION LINE: Service & Maintenance Manual - rev. 4.0

Page 7.6

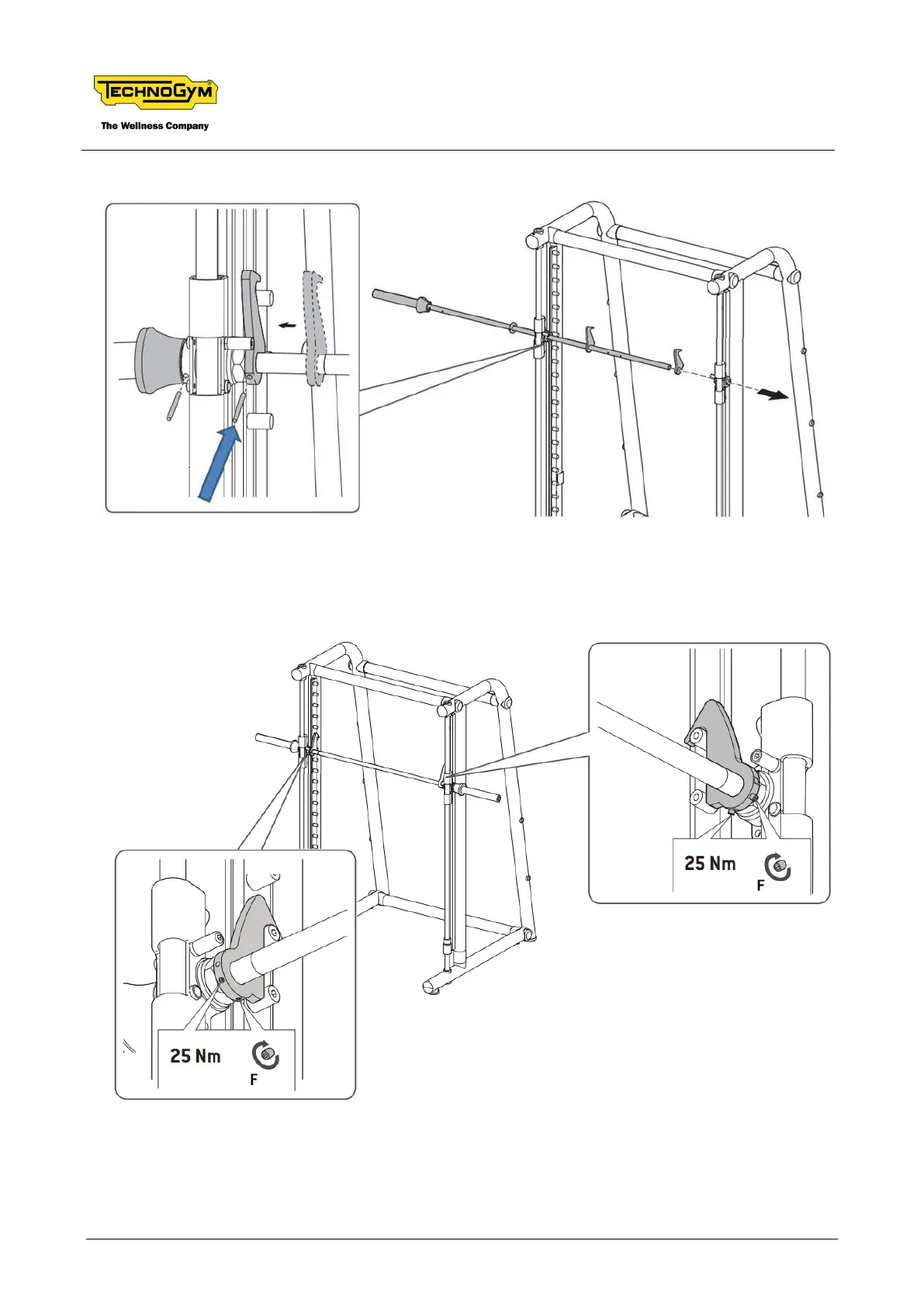

Moreover, for each hook, on the left and right, the 2 sharp grub screws must be tightened with a torque

wrench set to 25N m – 18.5 lbf-ft.
