SELECTION LINE: Service & Maintenance Manual - rev. 4.0
Page 14.8

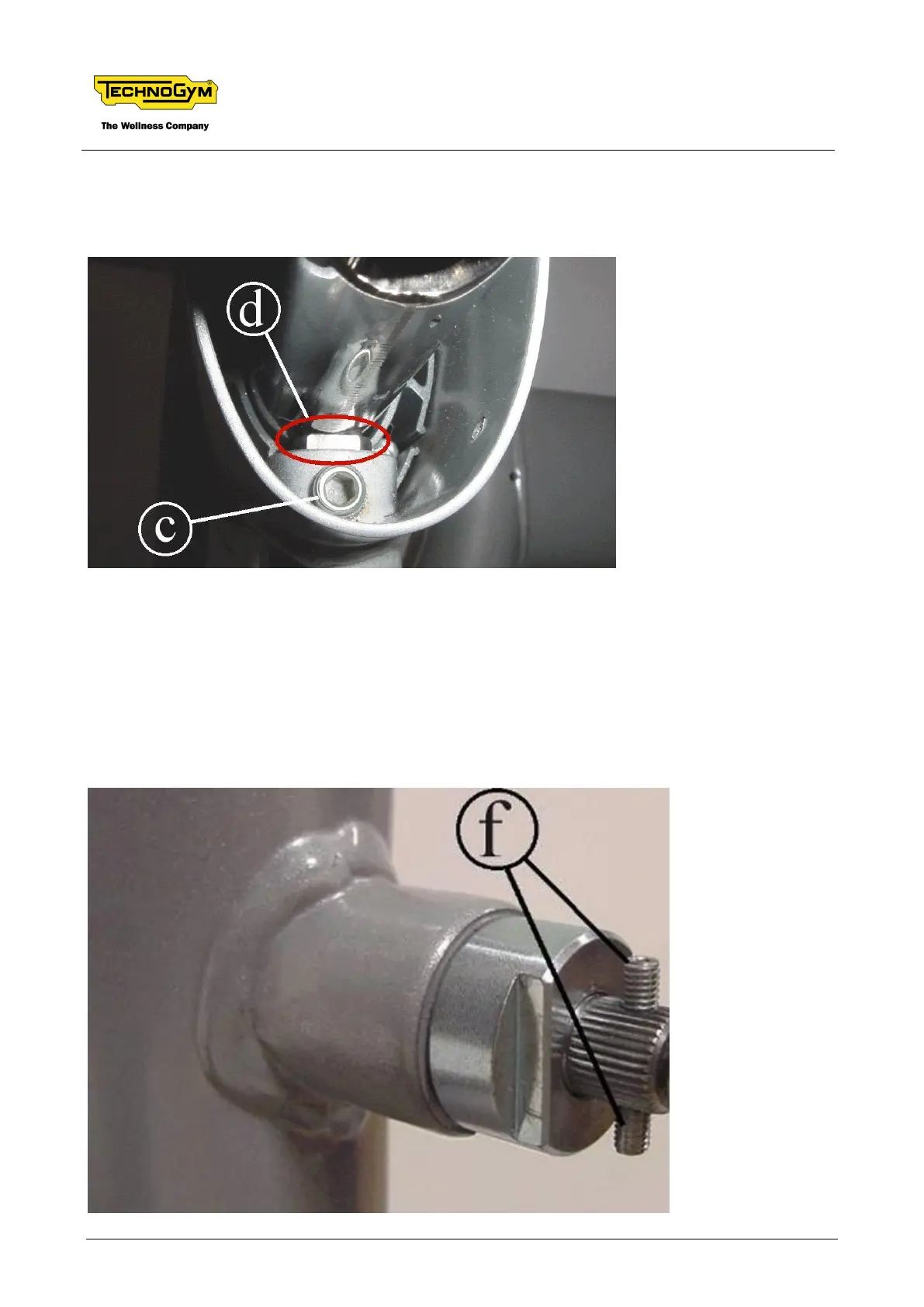

7-Remove the safety grub screw (c), shown below. (TOOL: 5-mm Allen key)
8-Rotate the selector pin until the flat surface of the pin (d) is facing upward, as shown below.
9-Once the selector pin is properly positioned, apply Loctite 270 or 2700 or strong / permanent glue
to the threads of the safety grub screw (c). Tighten the grub screw (c) until the end (TOOL: 5-mm
Allen key). In this position the pin must be blocked. Now, loose the grub screw of 180 degrees (half
of a turn), so the selector pin is not allowed to rotate more than 10 degrees in either direction.
10-Apply Loctite 2700 or 270 or strong / permanent glue along the thread of the 2 grub screws (f).
Insert the two grub screws, so that the grub screws (f) will not interfere with the screw (e). (TOOL:
2mm Allen key).
