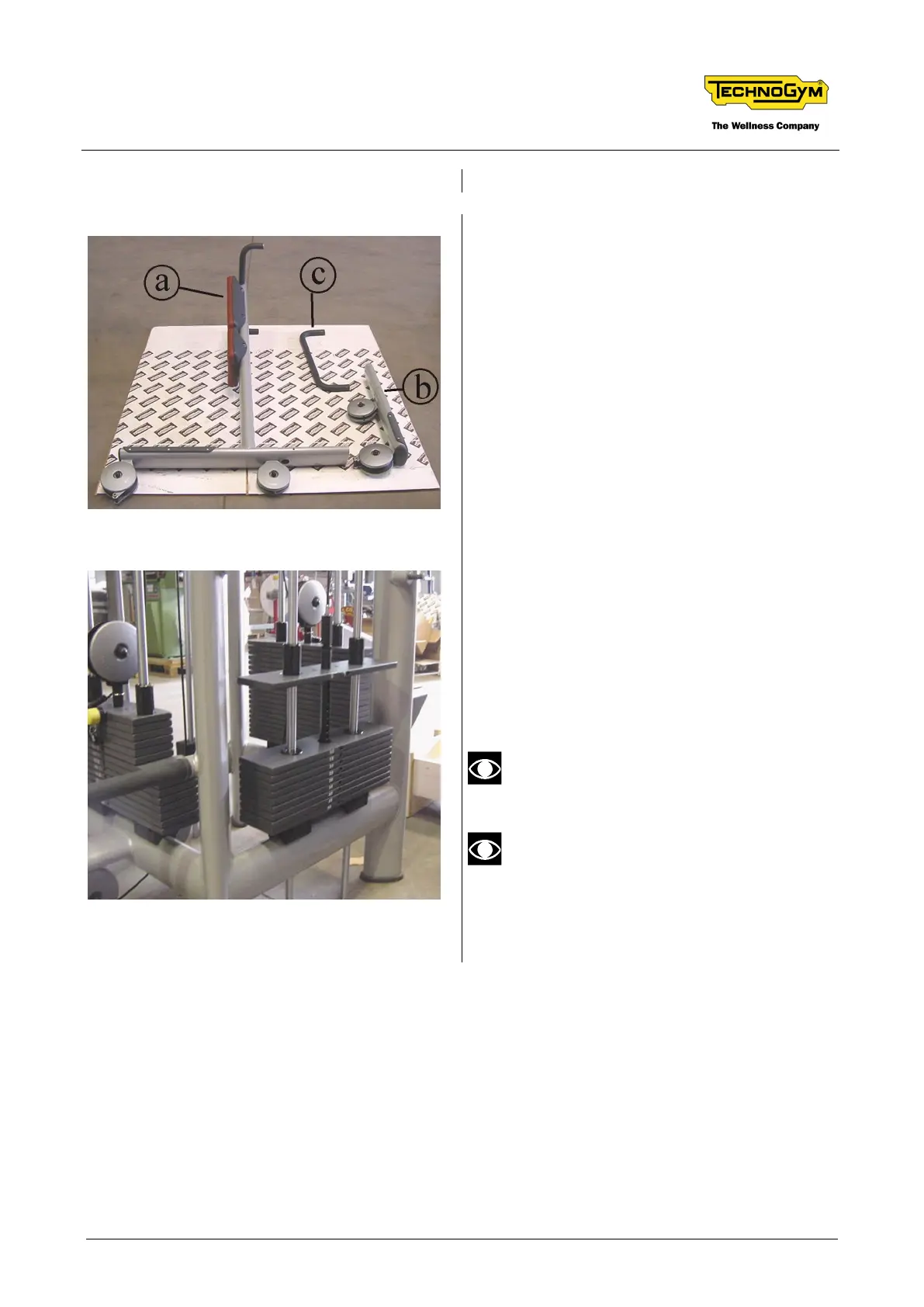

4. The figure shows the two arms a and b and
the handlebar c, which are supplied
disassembled inside the packing.
5. Position the machine on the floor.
6. Back off the grub screws securing the guide
rods (using a 4-mm Allen wrench) to slide
them downward and insert, from the top, all
the weight stack plates on the two sides
where they are missing.
The 50 kg weight stack goes on the side
of the arm with back rest, while the 70
kg weight stack goes on the other side.
When assembling the weight stack, be
careful to follow the numbering of the
stickers on the plates.
