Technogym Selection M810 - Page 71

SELECTION LINE: Service & Maintenance Manual - rev. 4.0
Page 3.59

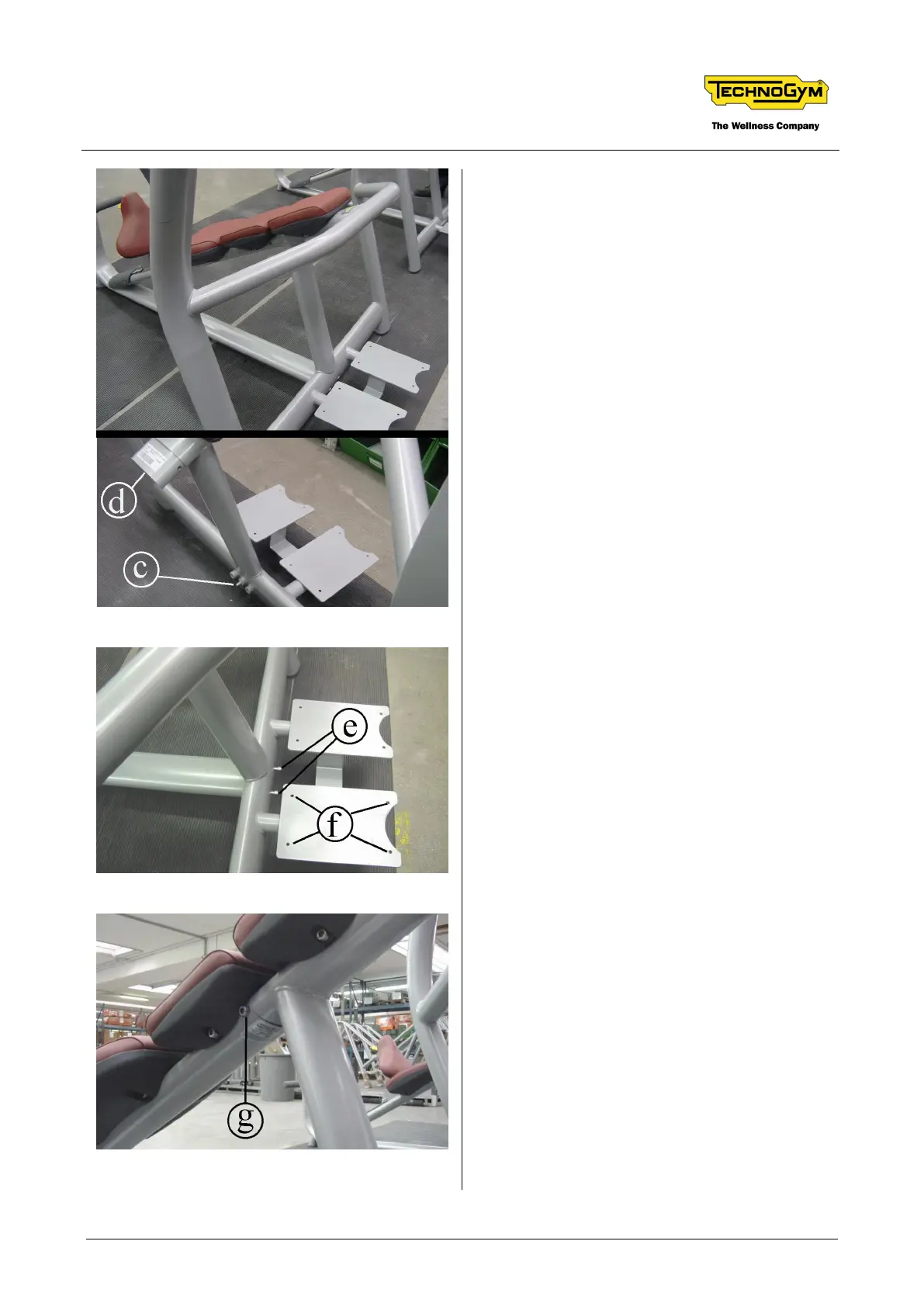

Photo 3.3-45
4. Place the two parts on the ground and join
them by means of the post d and the pin c on
the frame.
Photo 3.3-46
5. Use an 8-mm Allen wrench and the two
screws a shown in Photo 3.3-44, to connect
the two parts in position e, as shown in the
figure.
6. Assemble the two footboards, shown in
Photo 3.3-44, locking down (accessing from
below) the 4 bolts b in position f using 5-mm
Allen wrench.
Photo 3.3-47
7. Complete the assembly, locking down the 2
bolts g, left un-tight, using an 8-mm Allen
wrench.
