SELECTION LINE: Service & Maintenance Manual - rev. 4.0
Page 3.71

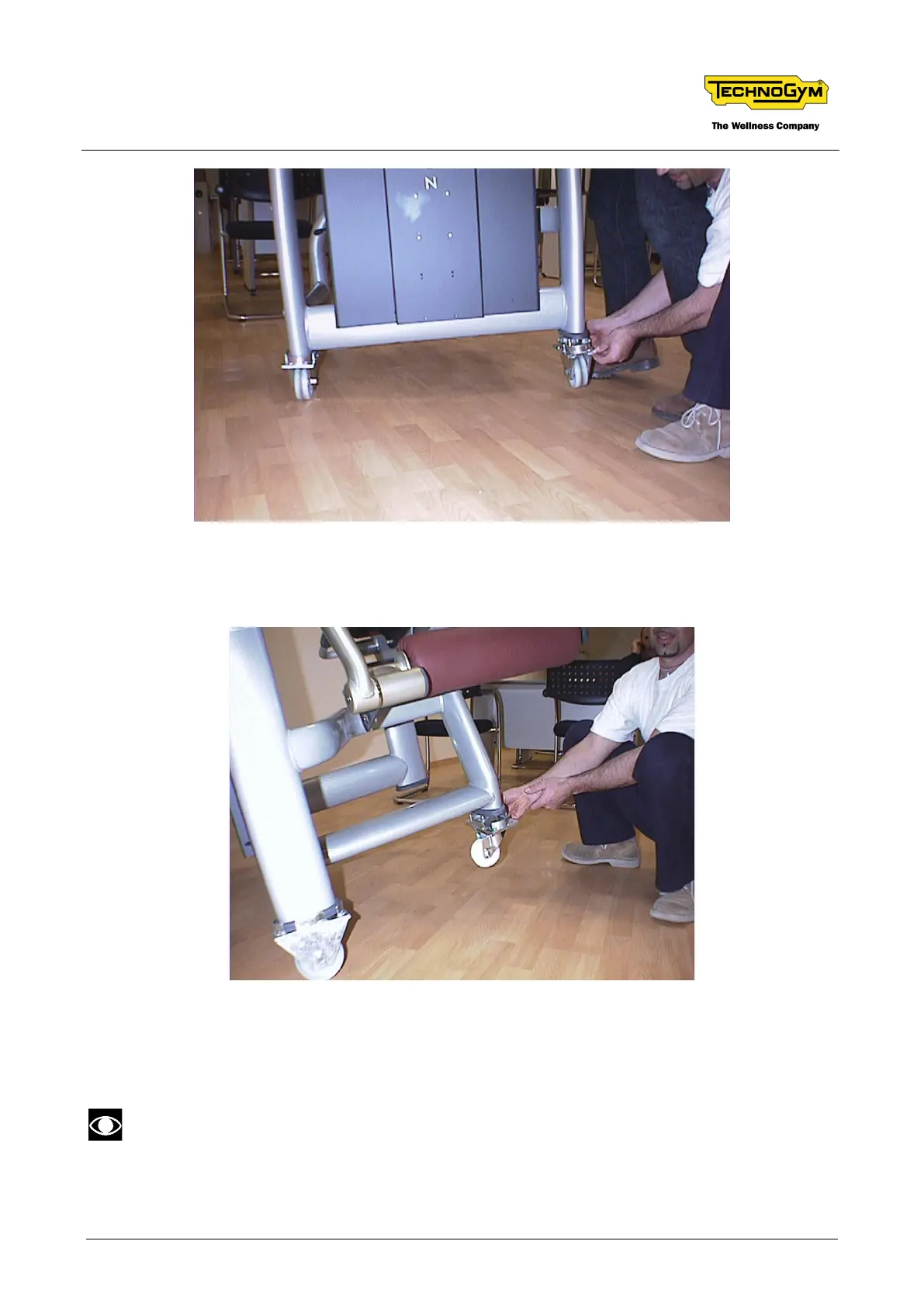

Photo 3.4-2
2. Tip the machine from the weight stack side and insert 1 or 2 steering wheels under the user side
hoists, as illustrated in the following photo:
Photo 3.4-3
Depending on the wheel model used, it could be necessary to back off the screw fixing the foot,
inserter the wheel and secure it using the screw previously removed.
3. This allows the machine to be moved easily, pushing it from the weight stack side.
Once the machine is in the desired place of installation, level it by adjusting the height of
one or more of the machine feet as described in paragraph 5.3. “The machine is not
flat”.
