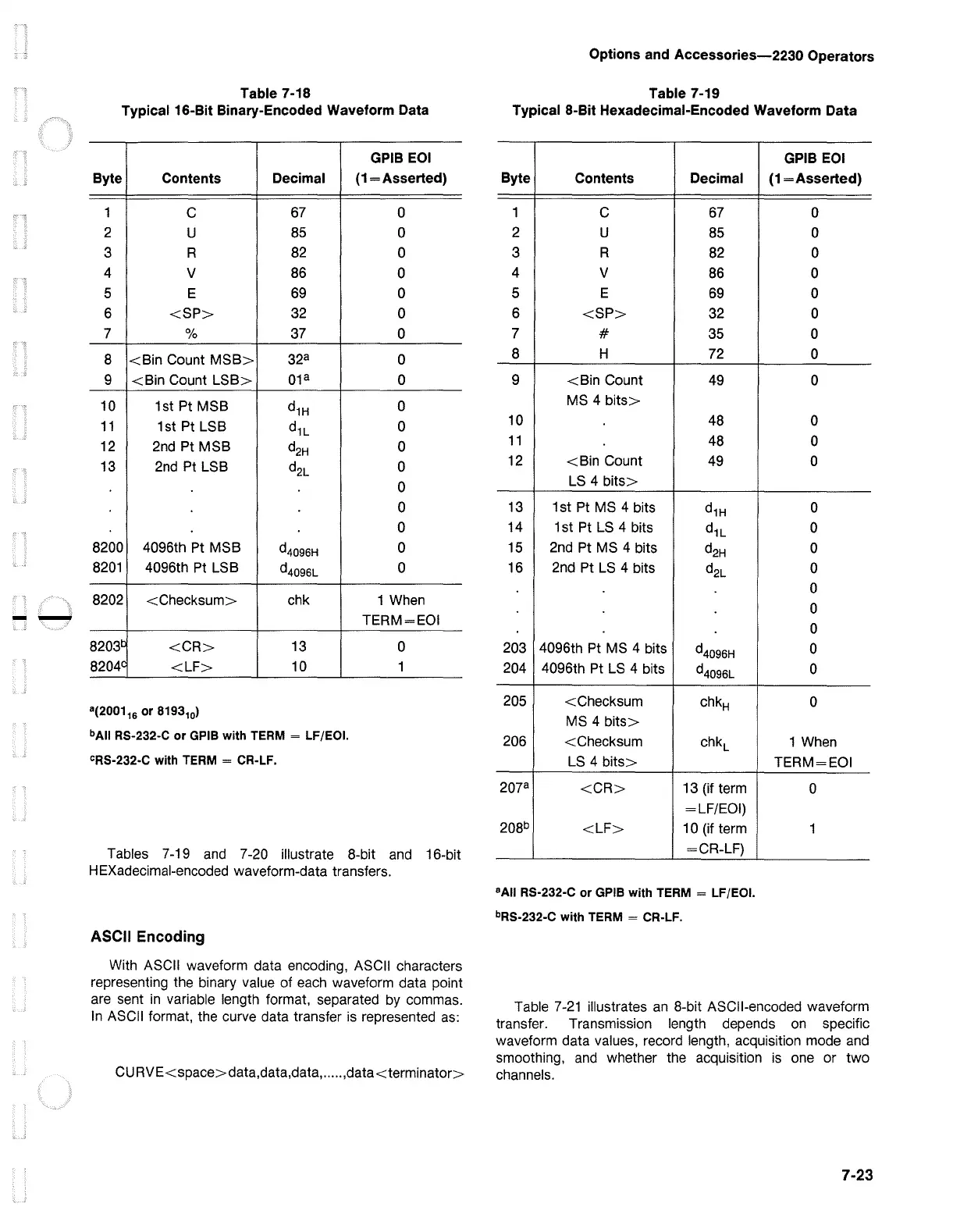

Table 7-18
Typical 16-Bit Binary-Encoded Waveform Data
Byte Contents Decimal
1
C
67
2
u
85
3 R
82
4 V 86
5 E 69
6
<SP>
32
7 % 37
8
<Bin Count MSB>
32a
9
<Bin Count LSB>
01a
10 1st Pt MSB
d1H
11 1st Pt LSB
d1L
12 2nd Pt MSB
d2H
13 2nd Pt LSB
d2L
8200 4096th Pt MSB
d4096H
8201 4096th Pt LSB
d4096L
8202
<Checksum>
chk
8203t
<CR>
13
8204<
<LF>
10
8
(2001
16
or 8193
10
)
hAII RS-232-C or GPIB with TERM = LF/EOI.
CRS-232-C with TERM = CR-LF.
GPIB EOI
(1 =Asserted)
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
1 When
TERM=EOI
0
1
Tables 7-19 and 7 -20 illustrate 8-bit and 16-bit
HEXadecimal-encoded waveform-data transfers.
ASCII Encoding
With ASCII waveform data encoding, ASCII characters
representing the binary value of each waveform data point
are sent in variable length format, separated by commas.
In ASCII format, the curve data transfer is represented as:
CURVE< space> data,data,data, ..... ,data <terminator>
Options and Accessories-2230 Operators
Table 7-19
Typical 8-Bit Hexadecimal-Encoded Waveform Data
Byte
Contents Decimal
1
C 67
2 u
85
3 R 82
4
V
86
5
E
69
6
<SP>
32
7 #
35
8 H
72
9
<Bin Count 49
MS 4 bits>
10
48
11
48
12 <Bin Count
49
LS 4 bits>
13 1st Pt MS 4 bits
d1H
14 1 st Pt LS 4 bits
d1L
15 2nd Pt MS 4 bits
d2H
16 2nd Pt LS 4 bits
d2L
203 4096th Pt MS 4 bits
d4096H
204
4096th Pt LS 4 bits
d4096L
205
<Checksum
chkH
MS 4 bits>
206
<Checksum
chkL
LS 4 bits>
207a
<CR>
13 {if term
=LF/EOI)
208b
<LF>
10 {if term
=CR-LF)
8
AII RS-232-C or GPIB with TERM = LF/EOI.
bRS-232-C with TERM = CR-LF.
GPIB EOI
(1 =Asserted)
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
1 When
TERM=EOI
0
1
Table 7-21 illustrates an 8-bit ASCII-encoded waveform
transfer. Transmission length depends on specific
waveform data values, record length, acquisition mode and
smoothing, and whether the acquisition is one or two
channels.
7-23
