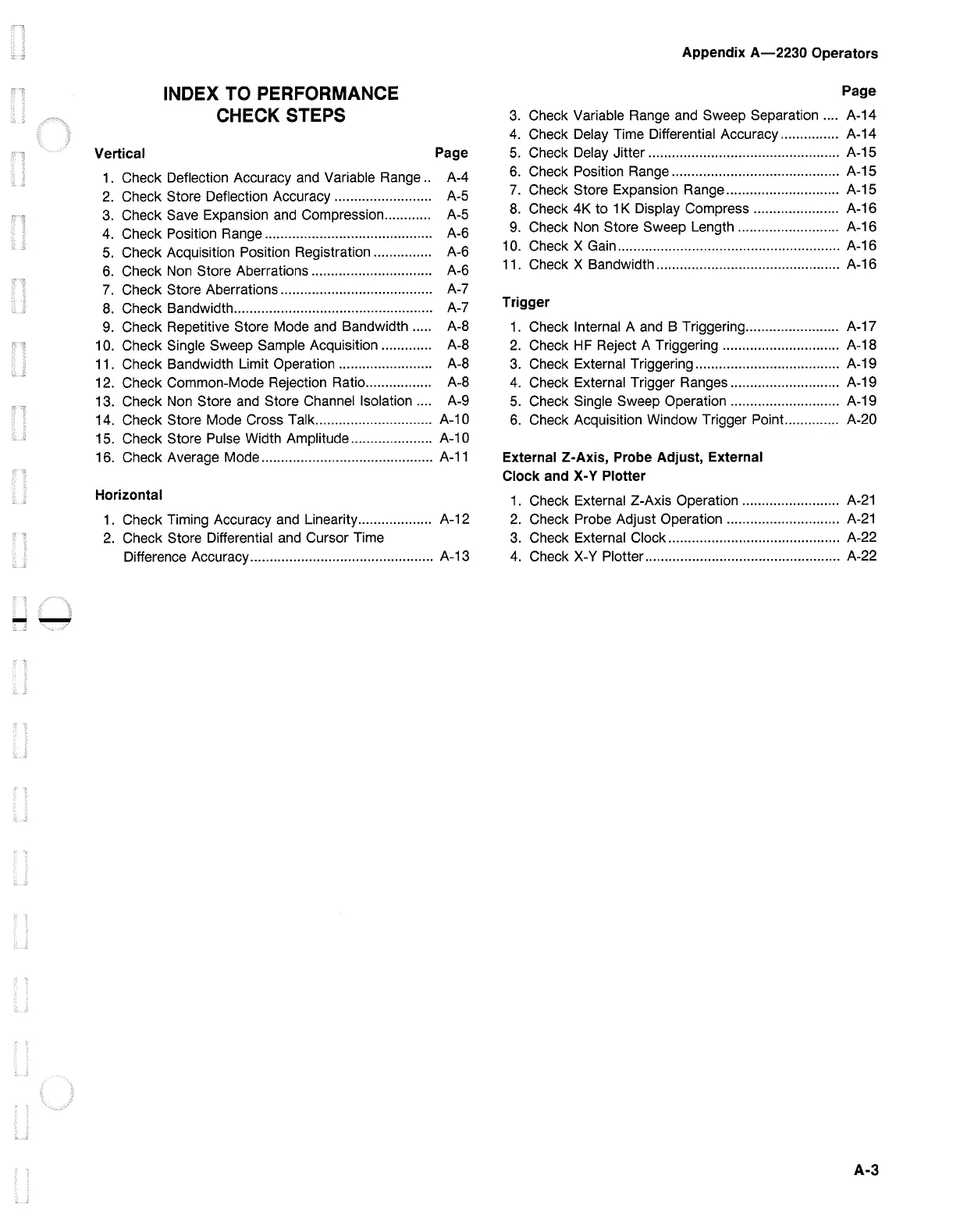

Tektronix 2230 Operator's Manual

--
INDEX TO PERFORMANCE
CHECK STEPS
Vertical Page
1. Check Deflection Accuracy and Variable Range.. A-4
2. Check Store Deflection Accuracy . . . . . . . .. . . . . . .. . . . . . .. .. A-5
3. Check Save Expansion and Compression............ A-5
4. Check Position Range........................................... A-6
5. Check Acquisition Position Registration ............... A-6
6. Check Non Store Aberrations............................... A-6
7. Check Store Aberrations....................................... A-7
8. Check Bandwidth................................................... A-7
9. Check Repetitive Store Mode and Bandwidth ..... A-8
10. Check Single Sweep Sample Acquisition ............. A-8
11 . Check Bandwidth Limit Operation ..... .... ... ... .. .. ... .. A-8
12. Check Common-Mode Rejection Ratio................. A-8
13. Check Non Store and Store Channel Isolation .... A-9
14. Check Store Mode Cross Talk .............................. A-10
15. Check Store Pulse Width Amplitude ..................... A-10
16. Check Average Mode............................................ A-11
Horizontal
1. Check Timing Accuracy and Linearity ................... A-12
2. Check Store Differential and Cursor Time
Difference Accuracy............................................... A-13
Appendix A-2230 Operators
Page
3. Check Variable Range and Sweep Separation .... A-14
4. Check Delay Time Differential Accuracy............... A-14
5. Check Delay Jitter ................................................. A-15
6. Check Position Range ........................................... A-15
7. Check Store Expansion Range............................. A-15
8. Check 4K to 1 K Display Compress .... .. . .. ...... ....... A-16
9. Check Non Store Sweep Length .......................... A-16
10. Check X Gain ......................................................... A-16
11 . Check X Bandwidth .. . .. .. .. .. .. .. .. . .. .. .. .. .. . . . .. . . . .. .. . . . . . . . A-16
Trigger
1. Check Internal A and B Triggering ........................ A-17
2. Check HF Reject A Triggering .............................. A-18
3. Check External Triggering ..................................... A-19
4. Check External Trigger Ranges ............................ A-19
5. Check Single Sweep Operation ............................ A-19
6. Check Acquisition Window Trigger Point.............. A-20
External Z-Axis, Probe Adjust, External
Clock and X-Y Plotter
1. Check External Z-Axis Operation ......................... A-21
2. Check Probe Adjust Operation ............................. A-21
3. Check External Clock ............................................ A-22
4. Check X-Y Plotter.................................................. A-22
