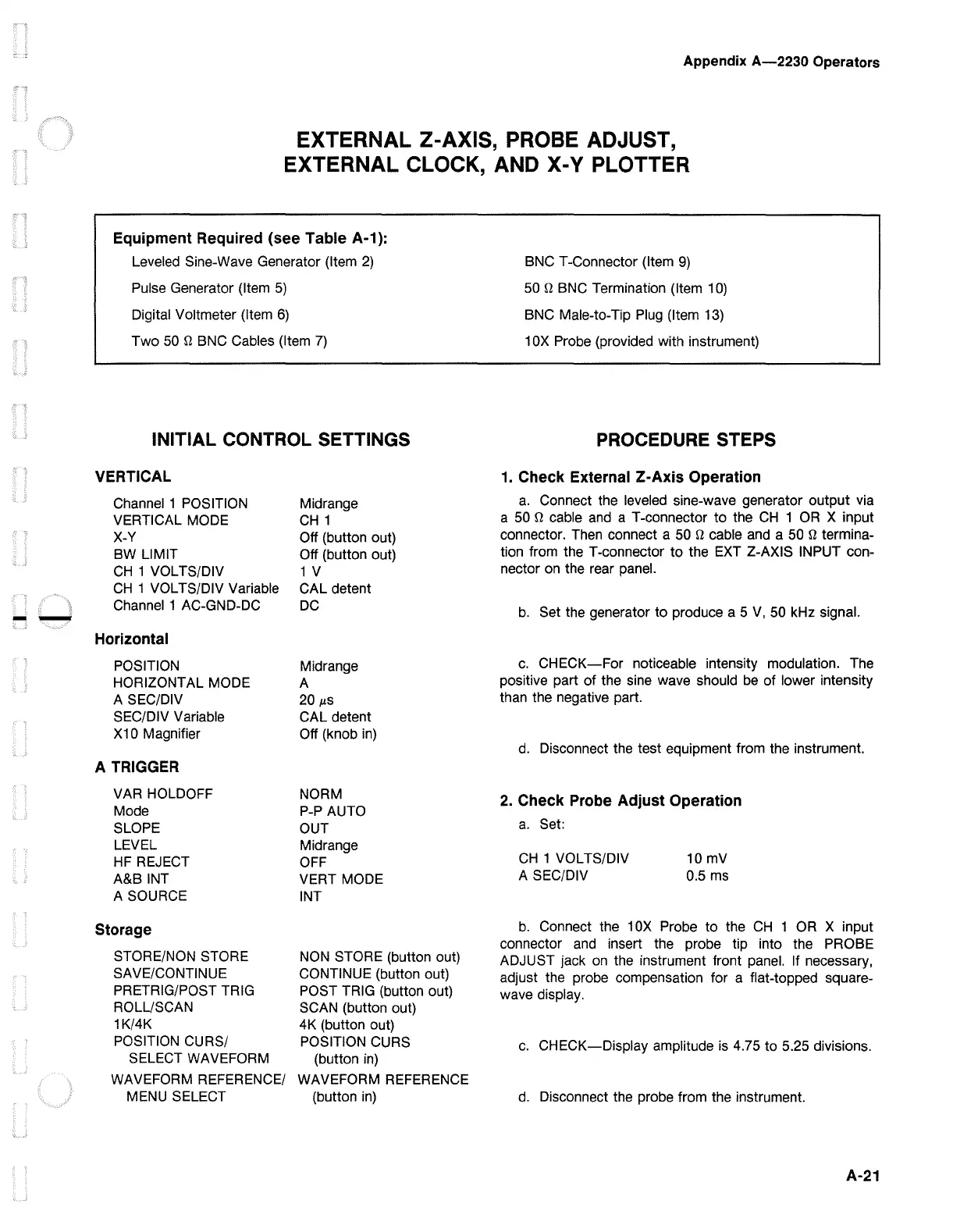

Page #159 background imageLoading...
Page #159 background image
--
Appendix
A-2230
Operators
EXTERNAL Z-AXIS, PROBE ADJUST,
EXTERNAL CLOCK, AND X-Y PLOTTER
Equipment Required (see Table A-1):
Leveled Sine-Wave Generator (Item
2)
Pulse Generator (Item
5)
Digital Voltmeter (Item 6)
Two
50
n BNC Cables (Item
7)
INITIAL CONTROL SETTINGS
VERTICAL
Channel 1 POSITION
VERTICAL MODE
X-Y
BW LIMIT
CH
1 VOL TS/DIV
CH
1 VOL TS/DIV Variable
Channel 1 AC-GND-DC
Horizontal
POSITION
HORIZONTAL MODE
A SEC/DIV
SEC/DIV Variable
X10
Magnifier
A TRIGGER
VAR HOLDOFF
Mode
SLOPE
LEVEL
HF
REJECT
A&BINT
A SOURCE
Storage
STORE/NON STORE
SAVE/CONTINUE
PRETRIG/POST TRIG
ROLL/SCAN
1K/4K
POSITION CURS/
SELECT WAVEFORM
WAVEFORM REFERENCE/
MENU SELECT
Midrange
CH
1
Off (button out)
Off (button out)
1 V
CAL detent
DC
Midrange
A
20
µS
CAL detent
Off (knob
in)
NORM
P-P
AUTO
OUT
Midrange
OFF
VERT MODE
INT
NON
STORE (button out)
CONTINUE (button out)
POST TRIG (button out)
SCAN (button out)
4K (button out)
POSITION CURS
(button
in)
WAVEFORM REFERENCE
(button
in)
BNC T-Connector (Item
9)
50
n BNC Termination (Item
10)
BNC Male-to-Tip Plug (Item 13)
1
OX
Probe (provided with instrument)
PROCEDURE STEPS
1.
Check External Z-Axis Operation
a.
Connect the leveled sine-wave generator output via
a
50
n cable and a T-connector to the
CH
1
OR
X input
connector. Then connect a
50
n cable and a 50 n termina-
tion from the T-connector to the EXT Z-AXIS INPUT con-
nector
on
the rear panel.
b.
Set the generator to produce a 5
V,
50
kHz signal.
c.
CHECK-For
noticeable intensity modulation. The
positive part of the sine wave should
be
of lower intensity
than the negative part.
d.
Disconnect the test equipment from the instrument.
2.
Check Probe Adjust Operation
a.
Set:
CH
1 VOL TS/DIV
A SEC/DIV
10 mV
0.5 ms
b.
Connect the 1
OX
Probe to the
CH
1
OR
X input
connector
and
insert the probe tip into the PROBE
ADJUST jack
on
the instrument front panel. If necessary,
adjust the probe compensation for a flat-topped square-
wave display.
c.
CHECK-Display
amplitude is 4.75 to 5.25 divisions.
d.
Disconnect the probe from the instrument.
A-21
