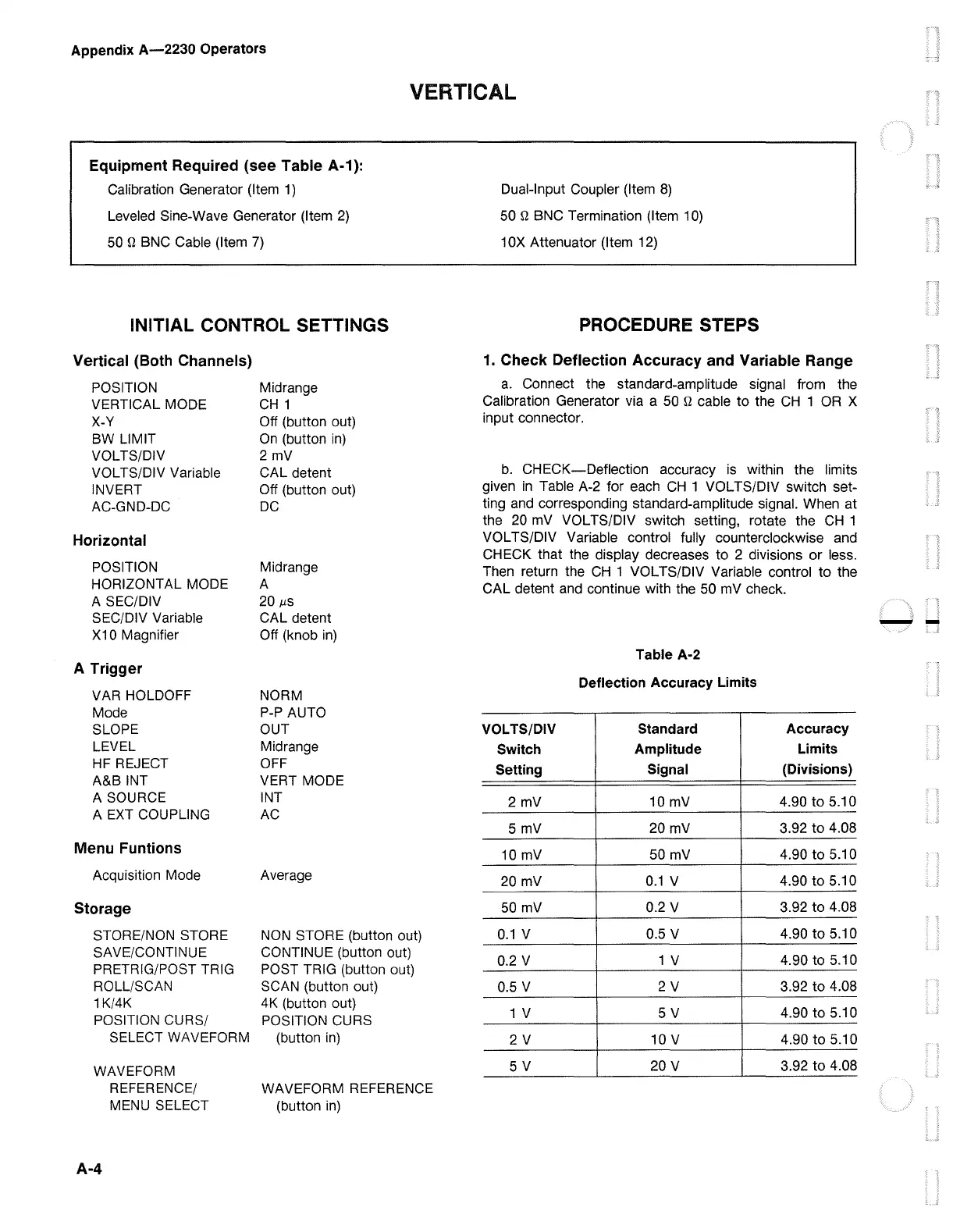

Appendix
A-2230
Operators
VERTICAL
Equipment Required (see Table A-1):
Calibration Generator (Item 1)
Leveled Sine-Wave Generator (Item
2)
50 Q BNC Cable (Item
7)
INITIAL CONTROL SETTINGS
Vertical (Both Channels)
POSITION
VERTICAL MODE
X-Y
BW LIMIT
VOLTS/DIV
VOL TS/DIV Variable
INVERT
AC-GND-DC
Horizontal
POSITION
HORIZONTAL MODE
A SEC/DIV
SEC/DIV Variable
X1
0 Magnifier
A Trigger
VAR HOLDOFF
Mode
SLOPE
LEVEL
HF REJECT
A&BINT
A SOURCE
A EXT COUPLING
Menu Funtions
Acquisition Mode
Storage
STORE/NON STORE
SAVE/CONTINUE
PRETRIG/POST TRIG
ROLL/SCAN
1 K/4K
POSITION CURS/
SELECT WAVEFORM
WAVEFORM
REFERENCE/
MENU SELECT
A-4
Midrange
CH
1
Off (button out)
On
(button
in)
2 mV
CAL detent
Off (button out)
DC
Midrange
A
20
µS
CAL detent
Off (knob
in)
NORM
P-P AUTO
OUT
Midrange
OFF
VERT MODE
INT
AC
Average
NON
STORE (button out)
CONTINUE (button out)
POST TRIG (button out)
SCAN (button out)
4K (button out)
POSITION CURS
(button
in)
WAVEFORM REFERENCE
(button
in)
Dual-Input Coupler (Item
8)
50 Q BNC Termination (Item 10)
1
OX
Attenuator (Item 12)
PROCEDURE STEPS
1.
Check Deflection Accuracy and Variable Range
a.
Connect the standard-amplitude signal from the
Calibration Generator via a 50 Q cable
to
the
CH
1
OR
X
input connector.
b.
CHECK-Deflection
accuracy is within the limits
given
in
Table A-2 for each
CH
1 VOL TS/DIV switch set-
ting and corresponding standard-amplitude signal. When at
the 20 mV VOL TS/DIV switch setting, rotate the
CH
1
VOL TS/DIV Variable control fully counterclockwise and
CHECK that the display decreases
to
2 divisions
or
less.
Then return the
CH
1 VOL TS/DIV Variable control
to
the
CAL detent and continue with the 50 mV check.
VOLTS/DIV
Switch
Setting
2 mV
5 mV
10 mV
20 mV
50 mV
0.1
V
0.2 V
0.5 V
1 V
2V
5V
Table A-2
Deflection Accuracy Limits
Standard
Amplitude
Signal
10 mV
20 mV
50 mV
0.1
V
0.2 V
0.5 V
1 V
2V
5V
10 V
20 V
Accuracy
Limits
(Divisions)
4.90
to
5.10
3.92
to
4.08
4.90
to
5.10
4.90
to
5.10
3.92
to
4.08
4.90
to
5.10
4.90 to 5.10
3.92
to
4.08
4.90
to
5.10
4.90
to
5.10
3.92
to
4.08
--
