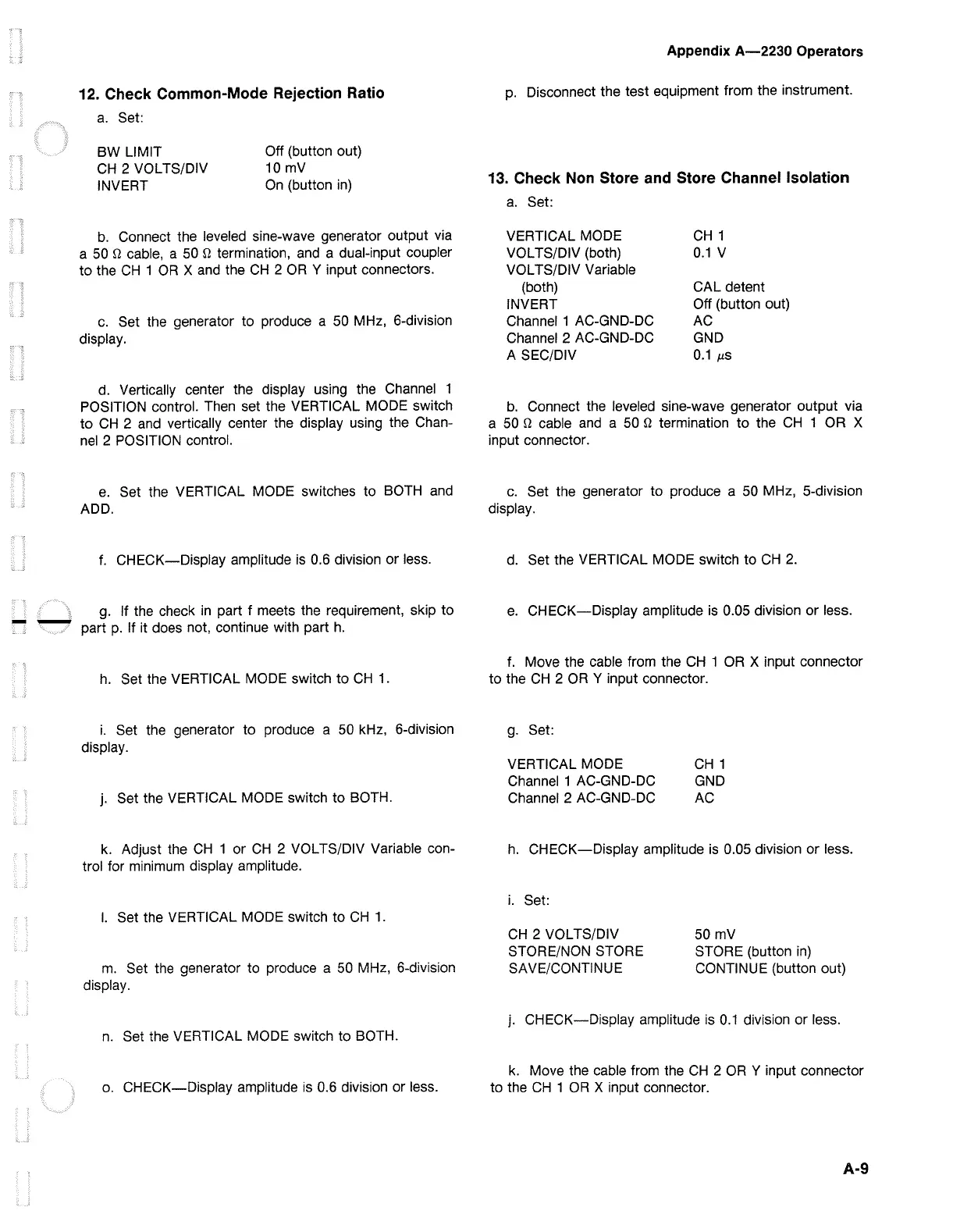

12. Check Common-Mode Rejection Ratio
a.
Set:
BW LIMIT
CH
2 VOL TS/DIV
INVERT
Off (button out)
10 mV
On (button in)
b.
Connect the leveled sine-wave generator output via
a 50
!2
cable, a 50
!2
termination, and a dual-input coupler
to
the
CH
1
OR
X and the
CH
2 OR Y input connectors.
c.
Set the generator to produce a 50 MHz, 6-division
display.
d. Vertically center the display using the Channel 1
POSITION control. Then set the VERTICAL MODE switch
to
CH
2 and vertically center the display using the Chan-
nel 2 POSITION control.
e.
Set the VERTICAL MODE switches to BOTH and
ADD.
f.
CHECK-Display
amplitude
is
0.6 division
or
less.
g. If the check
in
part f meets the requirement, skip
to
part
p.
If it does not, continue with part
h.
h.
Set the VERTICAL MODE switch
to
CH
1.
i.
Set the generator
to
produce a 50 kHz, 6-division
display.
j. Set the VERTICAL MODE switch
to
BOTH.
k. Adjust the
CH
1
or
CH
2 VOL TS/DIV Variable con-
trol for minimum display amplitude.
I.
Set the VERTICAL MODE switch to
CH
1.
m.
Set the generator to produce a 50 MHz, 6-division
display.
n.
Set the VERTICAL MODE switch to BOTH.
o.
CHECK-Display
amplitude is 0.6 division
or
less.
Appendix
A-2230
Operators
p.
Disconnect the test equipment from the instrument.
13. Check
Non
Store and Store Channel Isolation
a.
Set:
VERTICAL MODE
VOL TS/DIV (both)
VOL TS/DIV Variable
(both)
INVERT
Channel 1 AC-GND-DC
Channel 2 AC-GND-DC
A SEC/DIV
CH
1
0.1
V
CAL
detent
Off (button out)
AC
GND
0.1
µS
b.
Connect the leveled sine-wave generator output via
a 50
!2
cable and a 50
!2
termination
to
the
CH
1 OR X
input connector.
c.
Set the generator
to
produce a 50 MHz, 5-division
display.
d. Set the VERTICAL MODE switch to
CH
2.
e.
CHECK-Display
amplitude is 0.05 division
or
less.
f.
Move the cable from the
CH
1 OR X input connector
to
the
CH
2 OR Y input connector.
g.
Set:
VERTICAL MODE
Channel 1 AC-GND-DC
Channel 2 AC-GND-DC
CH
1
GND
AC
h.
CHECK-Display
amplitude
is
0.05 division
or
less.
i.
Set:
CH
2 VOL TS/DIV
STORE/NON STORE
SAVE/CONTINUE
50 mV
STORE (button
in)
CONTINUE (button out)
j.
CHECK-Display
amplitude is
0.1
division
or
less.
k.
Move the cable from the
CH
2 OR Y input connector
to the
CH
1 OR X input connector.
A-9
