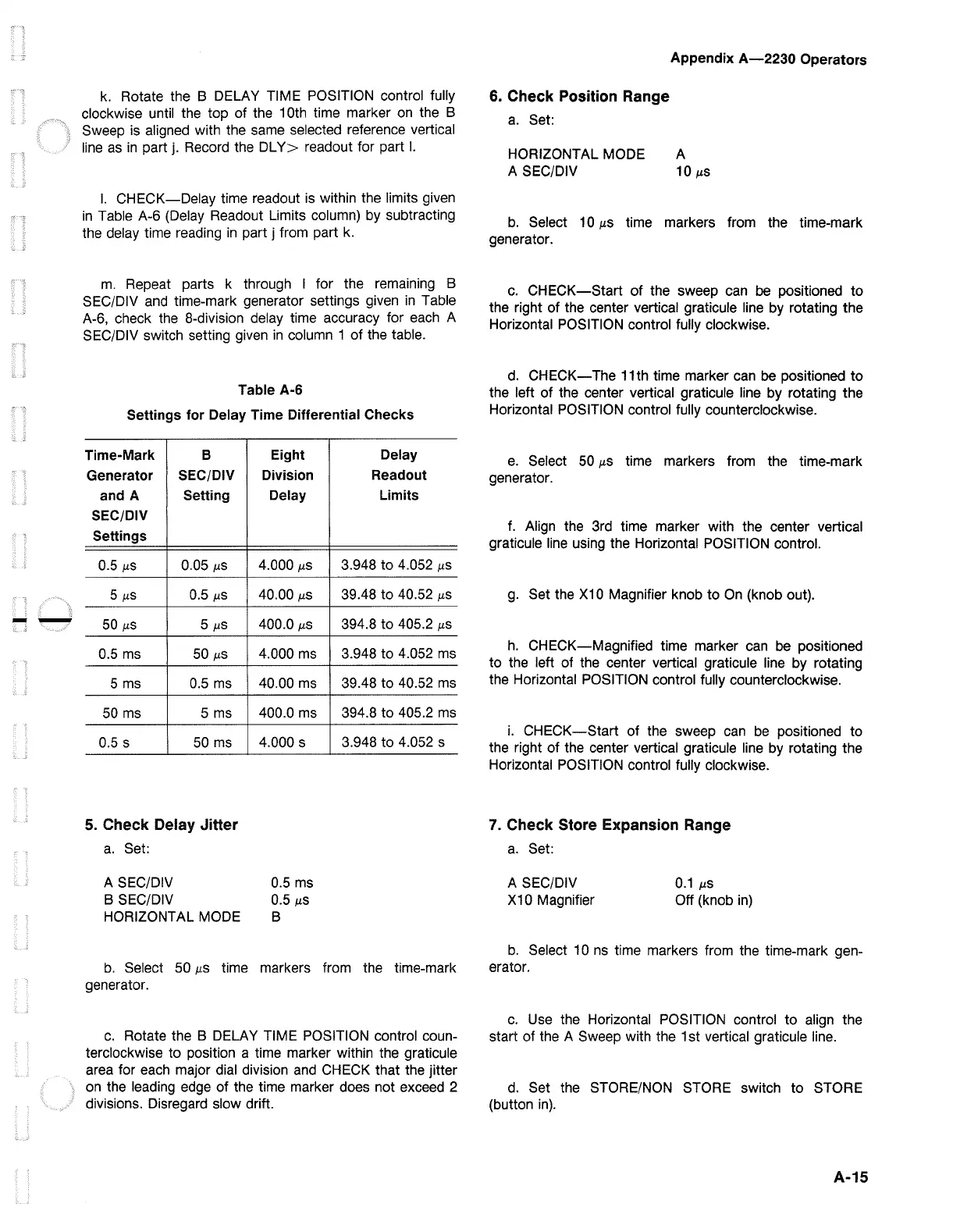

k. Rotate the B DELAY TIME POSITION control fully
clockwise until the top of the 10th time marker on the B
Sweep is aligned with the same selected reference vertical
line as in part j. Record the DL Y> readout for part I.
I. CHECK-Delay time readout is within the limits given
in Table A-6 (Delay Readout Limits column) by subtracting
the delay time reading in part j from part k.
m. Repeat parts k through I for the remaining B
SEC/DIV and time-mark generator settings given in Table
A-6, check the 8-division delay time accuracy for each A
SEC/DIV switch setting given in column 1 of the table.
Table A-6
Settings for Delay Time Differential Checks
Time-Mark B
Generator
SEC/DIV
and A Setting
SEC/DIV
Settings
0.5 µ,S 0.05 µ,S
5 µ,S 0.5 µ,S
50 µ,S 5 µ,S
0.5 ms
50 µ,S
5 ms 0.5 ms
50 ms 5 ms
0.5 s
50 ms
5. Check Delay Jitter
a. Set:
A SEC/DIV
B SEC/DIV
HORIZONTAL MODE
Eight
Division
Delay
4.000 µ,S
40.00 µ,S
400.0 µ,S
4.000 ms
40.00 ms
400.0 ms
4.000 s
0.5 ms
0.5 µ,S
B
Delay
Readout
Limits
3.948 to 4.052 µ,S
39.48 to 40.52 µ,S
394.8 to 405.2 µ,S
3.948 to 4.052 ms
39.48 to 40.52 ms
394.8 to 405.2 ms
3.948 to 4.052 s
b. Select 50 µ,s time markers from the time-mark
generator.
c. Rotate the B DELAY TIME POSITION control coun-
terclockwise to position a time marker within the graticule
area for each major dial division and CHECK that the jitter
on the leading edge of the time marker does not exceed 2
divisions. Disregard slow drift.
Appendix A-2230 Operators
6. Check Position Range
a. Set:
HORIZONTAL MODE A
A SEC/DIV 10 µ,S
b. Select 10 µ,s time markers from the time-mark
generator.
c. CHECK-Start of the sweep can be positioned to
the right of the center vertical graticule line by rotating the
Horizontal POSITION control fully clockwise.
d. CHECK- The 11th time marker can be positioned to
the left of the center vertical graticule line by rotating the
Horizontal POSITION control fully counterclockwise.
e. Select 50 µ,s time markers from the time-mark
generator.
f. Align the 3rd time marker with the center vertical
graticule line using the Horizontal POSITION control.
g. Set the X10 Magnifier knob to On (knob out).
h. CHECK-Magnified time marker can be positioned
to the left of the center vertical graticule line by rotating
the Horizontal POSITION control fully counterclockwise.
i. CHECK-Start of the sweep can be positioned to
the right of the center vertical graticule line by rotating the
Horizontal POSITION control fully clockwise.
7. Check Store Expansion Range
a. Set:
A SEC/DIV
X10 Magnifier
0.1 µ,S
Off (knob in)
b. Select 10 ns time markers from the time-mark gen-
erator.
c. Use the Horizontal POSITION control to align the
start of the A Sweep with the 1st vertical graticule line.
d. Set the STORE/NON STORE switch to STORE
(button in).
A-15
