Tektronix 2230 Operator's Manual

--
Section 2-2230 Operators
PREPARATION FOR USE
SAFETY
This part of the manual tells how to prepare for and to
proceed with the initial start-up of the instrument.
Refer to the Safety Summary at the front of this
manual for power source, grounding, and other safety con-
siderations pertaining to the use of the instrument. Before
connecting the oscilloscope to a power source, read
entirely both this section and the Safety Summary.
LINE VOLTAGE
This instrument is capable of continuous operation with
input voltages that range from 90 V to 250 V with source
voltage frequencies from 48 Hz to 440 Hz.
POWER CORD
A detachable three-wire power cord with a three-
contact plug is provided with each instrument for connect-
ing to both the power source and protective ground. The
power cord may be secured to the rear panel by a cord-
set-securing clamp (see Figure 2-1 ). The protective-ground
contact in the plug connects (through the protective-
ground conductor) to the accessible metal parts of the
instrument. For electrical-shock protection, insert this plug
only into a power-source outlet that has a properly
grounded protective-ground contact.
Instruments are shipped with the power cord specified
by the customer. Available power-cord information is
presented in Figure 2-2, and part numbers are listed in
"Options and Accessories" (Section 7). Contact your
Tektronix representative or local Tektronix Field Office for
additional power-cord information.
--- -~==~~~=~==!
CAUTION
FOR CONTINUED FIRE PROTECTION
REPLACE ONLY WITH SPEClf!EO
TYPE ANO RATED FUSE. DISCONNECT
POWER INPUT BEFORE REPLACING FUSE.
!LINE VOLTAGE RANGEi fUSE 250V I
I 90.2sov AC I 2A SLOW I
00 NOT REMOVE
COVER. REFER
SERVICING TO
QUALIFIED PERSONNEL.
POWER
MAX WATTS 85
MAX VA 150
FREQUENCY
48-440Hz
CAUTION
TO AVOID ELECTRIC
SHOCK. THE POWER
CORO PROTECTIVE
GROUNDING CONDUCTOR
MUST BE CONNECTED
TO GROUND.
EXT Z AXIS !NPUT
lOKn. POSITIVE GOING
INPUT DECREASES
INTENSITY.
5 VOLT P-P CAUSES
NOTICEABlE MODULA·
TION AT NORMAL
INTENSITY
:;J •V PEAK
TEKTRONIX, INC. BEAVERTON. OREGON. U.S.A.
~ POWER CORD CLAMP
\.:fl------ FLAT WASHER
£.__ SELF-TAPPING SCREW
4998-02

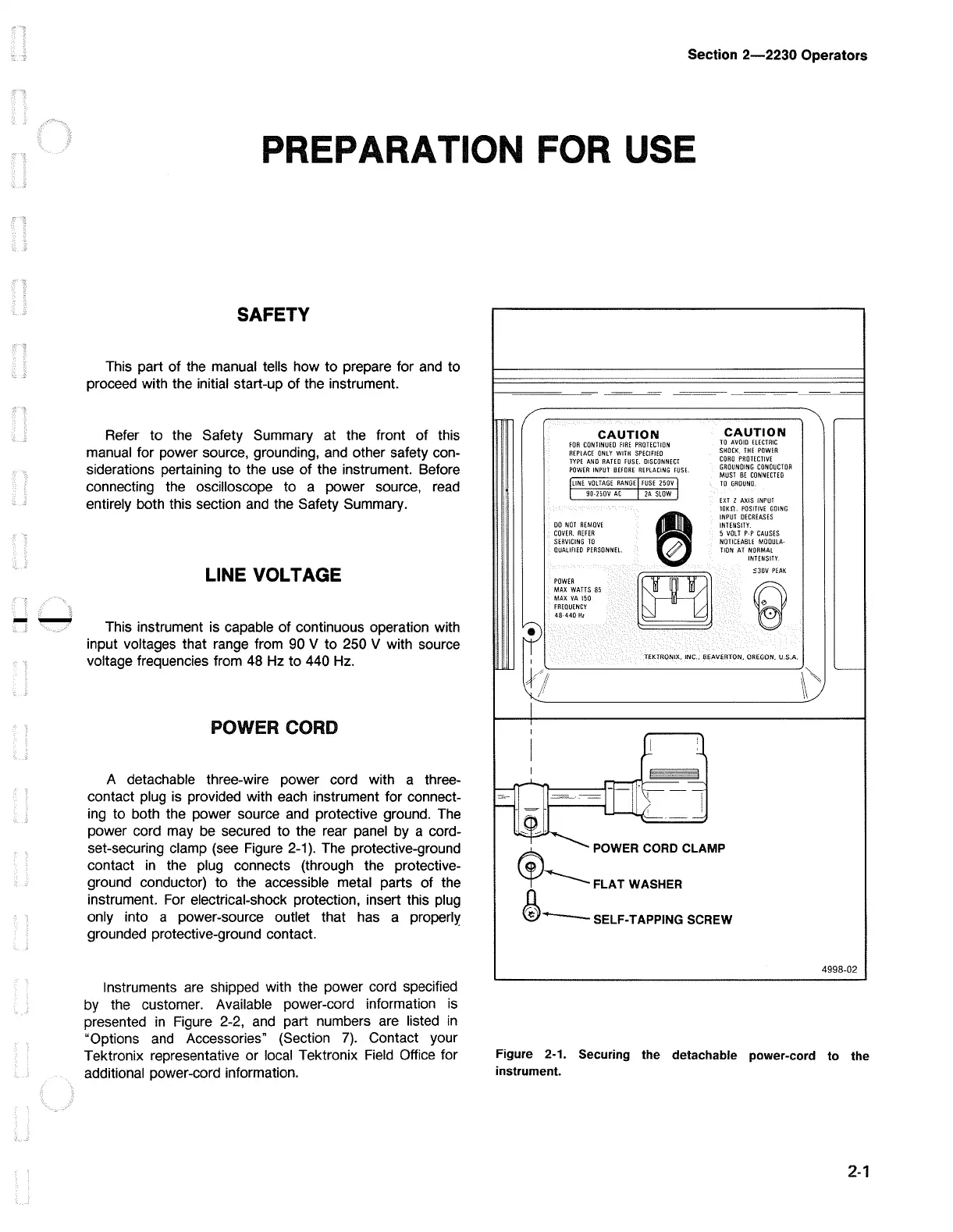

Figure 2-1. Securing the detachable power-cord to the
instrument.
2-1
