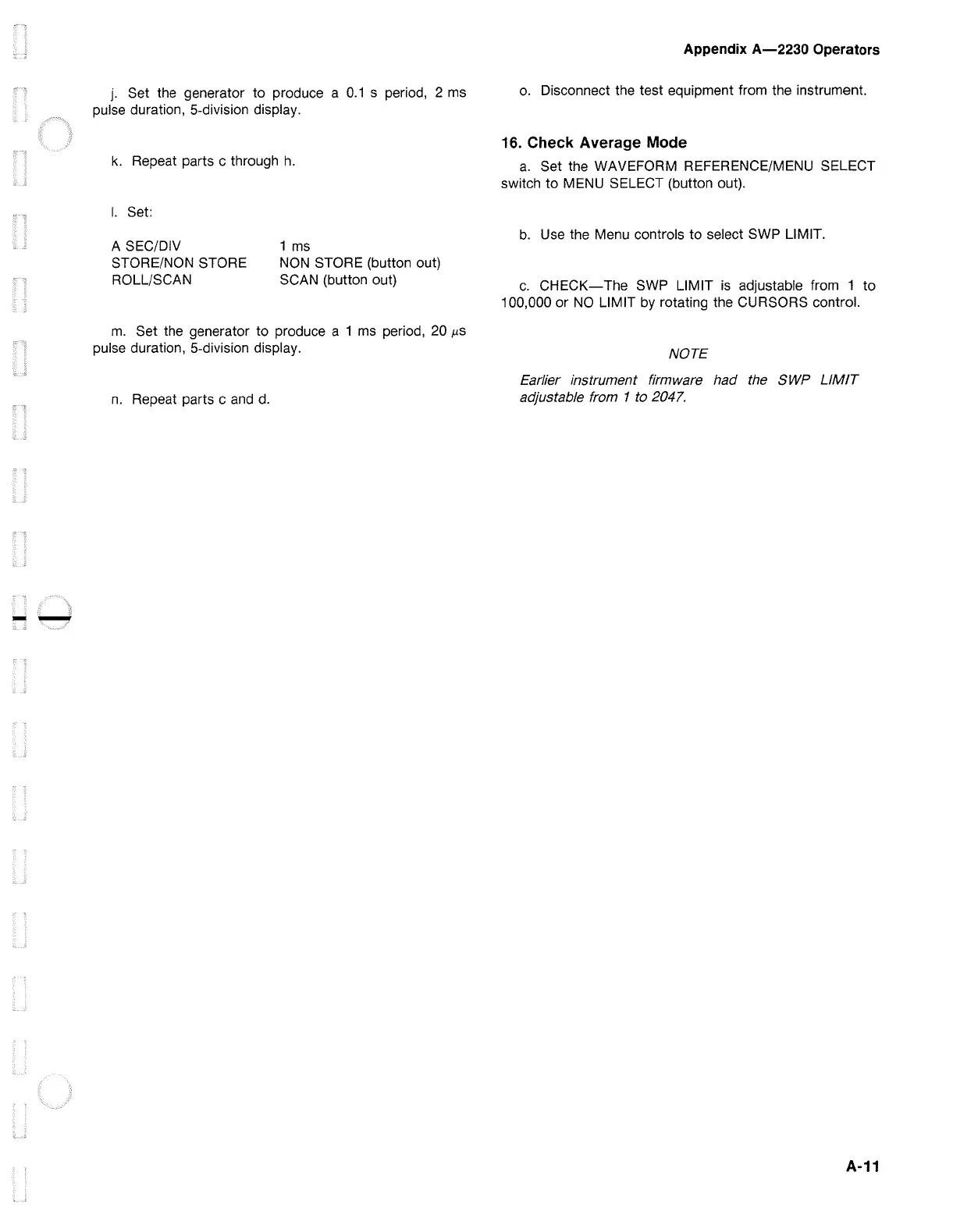

j. Set the generator to produce a 0.1 s period, 2 ms
pulse duration, 5-division display.
k. Repeat parts c through h.
I. Set:
A SEC/DIV
STORE/NON STORE
ROLL/SCAN
1 ms
NON STORE (button out)
SCAN (button out)
m. Set the generator to produce a 1 ms period, 20 µs
pulse duration, 5-division display.
n. Repeat parts c and d.
Appendix A-2230 Operators
o. Disconnect the test equipment from the instrument.
16. Check Average Mode
a. Set the WAVEFORM REFERENCE/MENU SELECT
switch to MENU SELECT (button out).
b. Use the Menu controls to select SWP LIMIT.
C. CHECK-The SWP LIMIT is adjustable from 1 to
100,000 or NO LIMIT by rotating the CURSORS control.
NOTE
Earlier instrument firmware had the SWP LIMIT
adjustable from 1 to 2047.
A-11
