Appendix
A-2230
Operators

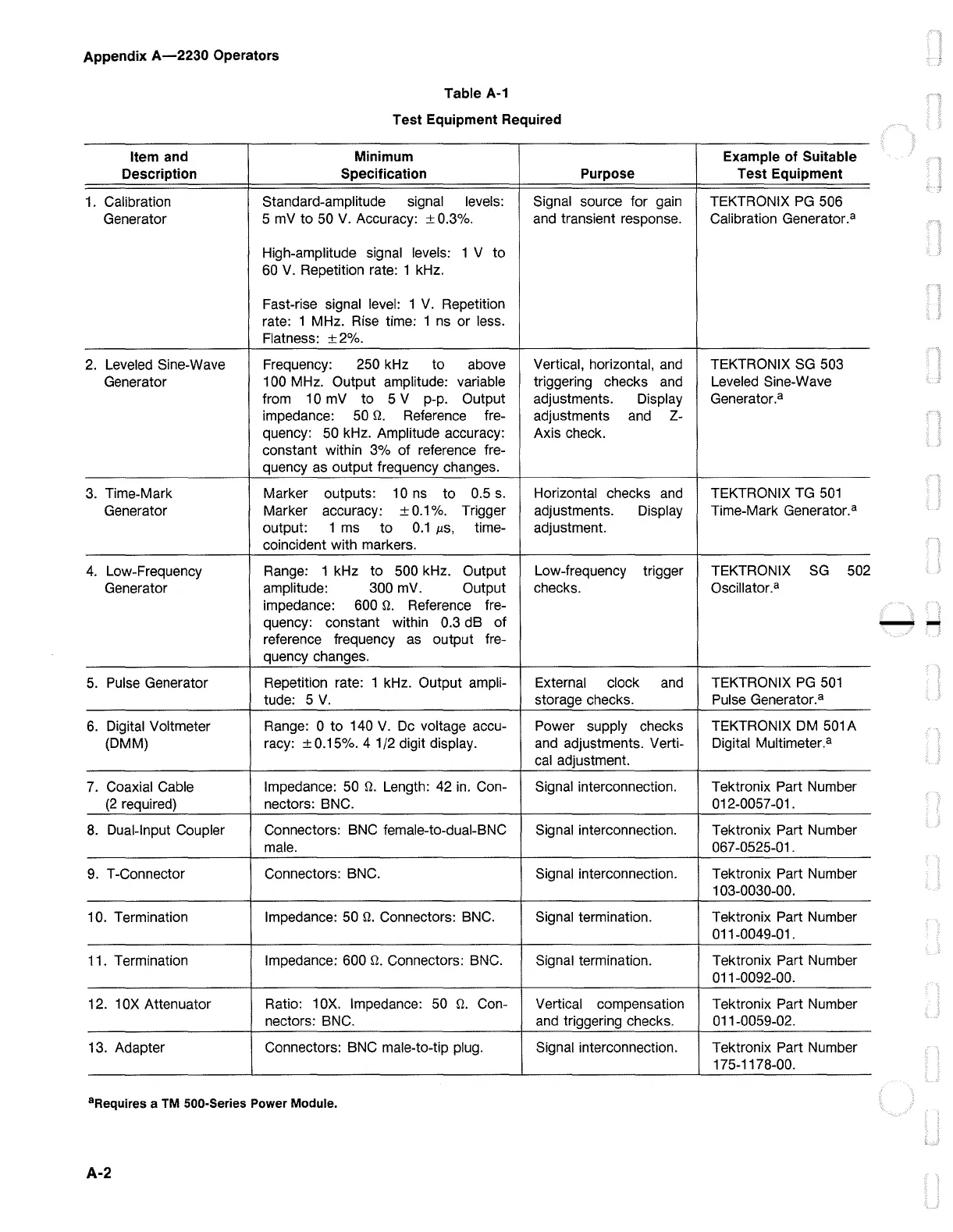

Table A-1
Test Equipment Required
Item and
Minimum Example of Suitable
Description
Specification Purpose Test Equipment
1.
Calibration Standard-amplitude
signal levels: Signal source for gain TEKTRONIX
PG
506
Generator
5 mV to
50
V.
Accuracy: ±0.3%.
and transient response. Calibration Generator.a
High-amplitude signal levels:
1 V
to
60
V.
Repetition rate: 1 kHz.
Fast-rise signal level: 1
V.
Repetition
rate: 1 MHz. Rise time: 1 ns or less.
Flatness: ± 2%.
2.
Leveled Sine-Wave
Frequency: 250 kHz to above
Vertical, horizontal,
and
TEKTRONIX
SG
503
Generator
100 MHz. Output amplitude: variable triggering checks and
Leveled Sine-Wave
from 10 mV to
5V
p-p. Output adjustments. Display
Generator.a
impedance:
50
n.
Reference fre- adjustments
and
Z-
quency:
50
kHz. Amplitude accuracy: Axis check.
constant within 3% of reference fre-
quency as output frequency changes.
3.
Time-Mark Marker outputs: 10
ns
to
0.5
s.
Horizontal checks
and
TEKTRONIX
TG
501
Generator Marker accuracy:
±0.1%. Trigger adjustments.
Display
Time-Mark Generator.a
output: 1 ms
to
0.1
µ,S,
time- adjustment.
coincident with markers.
4.
Low-Frequency
Range: 1 kHz
to
500 kHz.
Output
Low-frequency trigger TEKTRONIX
SG
502
Generator
amplitude: 300 mV. Output checks.
Oscillator.a
impedance: 600
n.
Reference fre-
quency:
constant within
0.3 dB
of
--
reference frequency
as
output
fre-
quency changes.
5.
Pulse Generator
Repetition rate: 1 kHz. Output ampli- External clock and TEKTRONIX
PG
501
tude: 5
V.
storage checks. Pulse Generator.a
6.
Digital Voltmeter
Range: 0 to 140
V.
De
voltage accu- Power supply checks TEKTRONIX
DM
501
A
(DMM)
racy:
±0.15%.
4 1/2 digit display.
and
adjustments. Verti-
Digital Multimeter.a
cal
adjustment.
7.
Coaxial Cable
Impedance:
50
n.
Length: 42
in.
Con- Signal interconnection. Tektronix Part Number
(2
required)
nectars: BNC. 012-0057-01.
8.
Dual-Input Coupler
Connectors: BNC female-to-dual-BNC Signal interconnection. Tektronix Part Number
male. 067-0525-01.
9.
T-Connector
Connectors: BNC. Signal interconnection. Tektronix Part Number
103-0030-00.
10. Termination
Impedance: 50
n.
Connectors: BNC. Signal termination. Tektronix Part Number
011-0049-01.
11. Termination Impedance: 600
n.
Connectors: BNC. Signal termination.
Tektronix Part Number
011-0092-00.
12. 1
OX
Attenuator Ratio: 1
OX.
Impedance:
50
n.
Con- Vertical compensation Tektronix Part Number
nectars: BNC.
and
triggering checks. 011-0059-02.
13. Adapter Connectors: BNC male-to-tip plug.
Signal interconnection.
Tektronix Part Number
175-1178-00.
8
Requires a TM 500-Series Power Module.
A-2
