Options and
Accessories-2230
Operators
Commands
ALL
ACQuisition CUR Rent: <AVErage,
[DEFault],
PEAkdet,
or
SAMple>
2221 and 2230
ACQuisition CUR Rent: ACCpeak
2221 and 2230
ACQuisition
HS
Rec:
<ACCpeak
or
AVErage>
ALL
ACQuisition HSRec:[SAMple]
2221 and 2230
ACQuisition
LS
Rec:
<ACCpeak
or
AVErage>
ALL
ACQuisition
LS
Rec:
<[PEAkdet]
or
SAMple>
2221 and 2230
ACQuisition NUMsweeps:
<NR3>
2221 and 2230
ACQuisition REPetitive:
<ACCpeak
or
SAMple>
ALL
A CQuisition R EPetitive: [AV
Er
age]
ALL
ACQuisition RESet
ALL
ACQuisition ROLi:
<[PEAkdet]
or
SAMple>
ALL
ACQuisition SCAn:
<[PEAkdet]
or
SAMple>
7-32

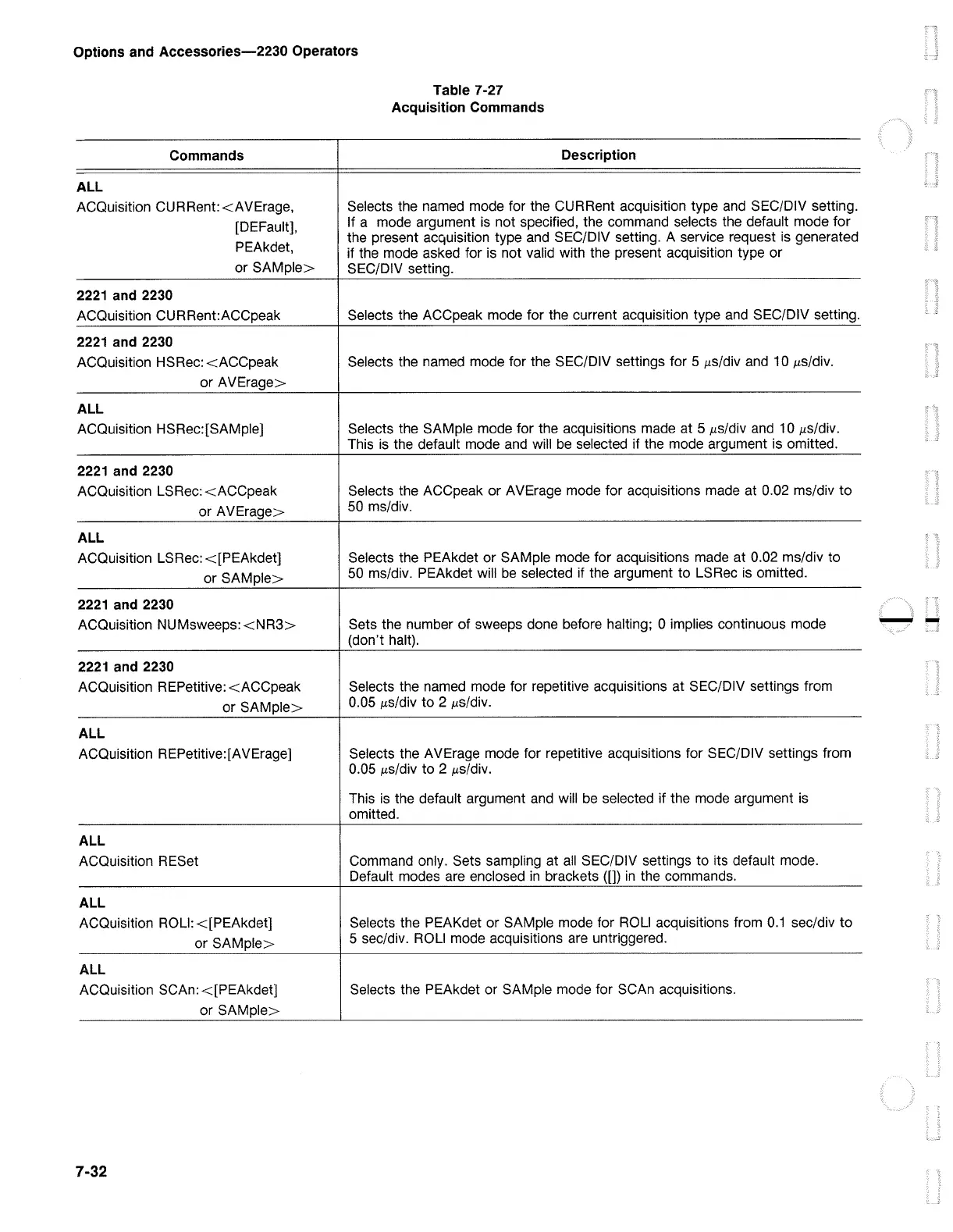

Table 7-27
Acquisition Commands
Description
Selects the named mode for the CURRent acquisition type and SEC/DIV setting.
If a mode argument
is
not specified, the command selects the default mode for
the present acquisition type and SEC/DIV setting. A service request
is
generated
if the mode asked for is not valid with the present acquisition type or
SEC/DIV setting.
Selects the ACCpeak mode for the current acquisition type and SEC/DIV setting.
Selects the named mode for the SEC/DIV settings for 5 µs/div and 10 µs/div.
Selects the SAMple mode for the acquisitions made at 5 µs/div
and
10 µs/div.
This
is
the default mode and will
be
selected if the mode argument is omitted.
Selects the ACCpeak
or
AVErage mode for acquisitions made at 0.02 ms/div
to
50 ms/div.
Selects the PEAkdet or SAMple mode for acquisitions made at 0.02 ms/div to
50 ms/div. PEAkdet will
be
selected if the argument to LSRec
is
omitted.
Sets the number
of
sweeps done before halting; 0 implies continuous mode
(don't halt).
Selects the named mode for repetitive acquisitions at SEC/DIV settings from
0.05 µS/div to 2 µS/div.
Selects the AVErage mode for repetitive acquisitions for SEC/DIV settings from
0.05 µS/div to 2 µS/div.
This
is
the default argument and will
be
selected if the mode argument is
omitted.
Command only. Sets sampling at
all
SEC/DIV settings to its default mode.
Default modes are enclosed
in
brackets ([])
in
the commands.
Selects the PEAKdet
or
SAMple mode for ROLi acquisitions from
0.1
sec/div to
5 sec/div. ROLi mode acquisitions are untriggered.
Selects the PEAkdet or SAMple mode for SCAn acquisitions.
--
