Characteristics

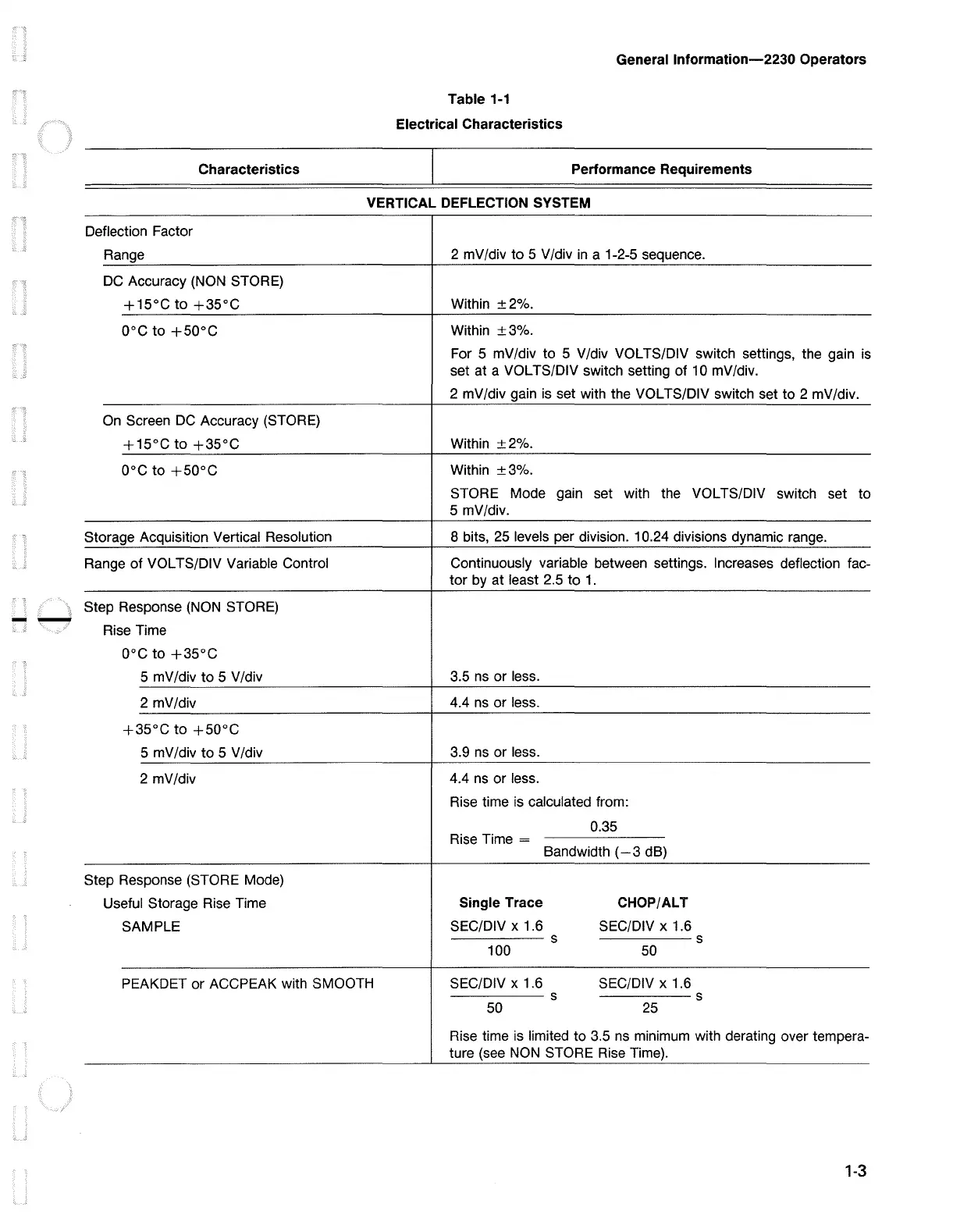

Table 1-1
Electrical Characteristics
General
lnformation-2230
Operators
Performance Requirements
VERTICAL DEFLECTION SYSTEM
Deflection Factor
Range
2 mV/div to 5 V/div
in
a 1-2-5 sequence.
DC
Accuracy
(NON
STORE)
+ 15°C
to
+35°C
Within
±2%.
0°c
to
+50°C
Within
±3%.
For 5
mV
/div to 5 V /div VOL TS/DIV switch settings, the gain
is
set at a VOLTS/DIV switch setting of
10
mV/div.
2
mV
/div gain
is
set with the VOL TS/DIV switch set to 2
mV
/div.
On
Screen
DC
Accuracy (STORE)
+15°C
to
+35°C
Within
±2%.
0°C
to
+50°C
Within
±3%.
STORE Mode gain
set with the VOL TS/DIV switch
set to
5 mV/div.
Storage Acquisition Vertical Resolution
8 bits,
25
levels per division. 10.24 divisions dynamic range.
Range of VOL TS/DIV Variable Control
Continuously variable between settings. Increases deflection fac-
tor
by
at least 2.5
to
1.
Step Response
(NON
STORE)
Rise Time
0°c
to
+35°C
5 mV/div to 5 V/div
3.5 ns or less.
2 mV/div
4.4
ns
or less.
+35°C
to
+50°C
5 mV/div to 5 V/div
3.9 ns or less.
2 mV/div
4.4 ns or less.
Rise
time
is
calculated from:
0.35
Rise
Time=
Bandwidth
(-3
dB)
Step Response (STORE Mode)
Useful Storage Rise Time
Single Trace
CHOP/ALT
SAMPLE
SEC/DIV x 1.6 SEC/DIV x 1.6
s s
100
50
PEAKDET or ACCPEAK with SMOOTH
SEC/DIV x 1.6 SEC/DIV x 1.6
s s
50
25
Rise time
is
limited to 3.5
ns
minimum with derating over tempera-
ture (see
NON
STORE
Rise
Time).
1-3
