General
lnformation-2230
Operators
Characteristics
Delay Time Differential Measurement Accuracy
(Runs After Delay only)
+15°C
to
+35°C
0°c
to
+50°C

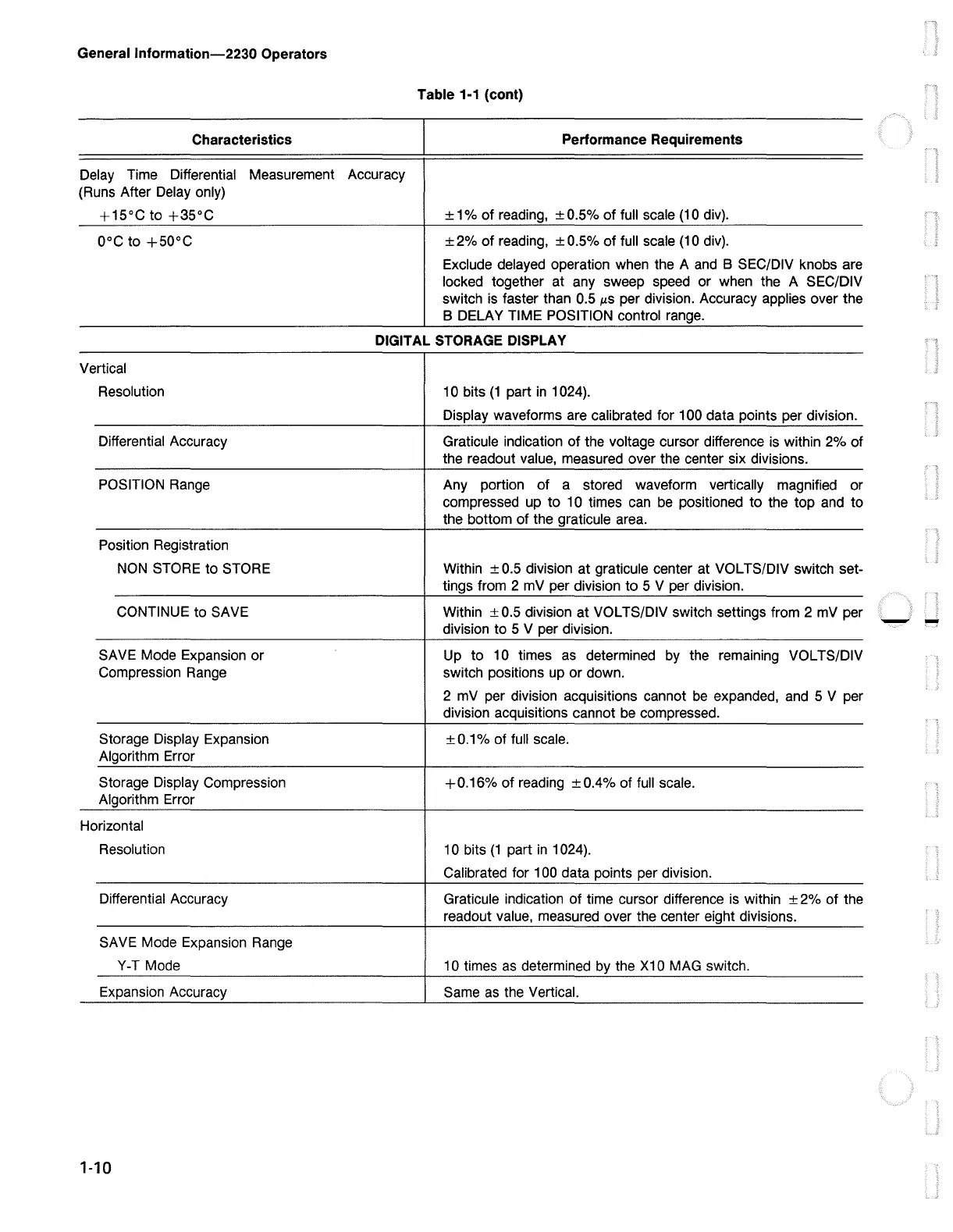

Table 1-1 (cont)
Performance Requirements
± 1 % of reading, ± 0.5% of full scale
(10
div).
± 2% of reading, ± 0.5%
of
full scale (10 div).
Exclude delayed operation when the A
and
B SEC/DIV knobs are
locked together at any sweep speed or when the A SEC/DIV
switch
is
faster than 0.5
µ.s
per division. Accuracy applies over the
8 DELAY TIME POSITION control range.
DIGITAL STORAGE DISPLAY
Vertical
Resolution
10 bits
(1
part
in
1024).
Display waveforms are calibrated for 100 data points per division.
Differential Accuracy Graticule indication of the voltage cursor difference
is
within 2% of
the readout value, measured over the center six divisions.
POSITION Range Any portion of a stored waveform vertically
magnified or
compressed up to
10
times
can
be
positioned to the top
and
to
the bottom of the graticule area.
Position Registration
NON
STORE to STORE Within ± 0.5 division at graticule center at VOL TS/DIV switch set-
tings from 2 mV per division to 5 V per division.
CONTINUE to SAVE Within ± 0.5 division at VOL TS/DIV switch settings from 2
mV
per
division to 5 V per division.
SAVE Mode Expansion or Up to 10 times
as
determined
by
the remaining VOL TS/DIV
Compression
Range
switch positions up or down.
2
mV
per division acquisitions cannot
be
expanded,
and
5 V per
division acquisitions cannot
be
compressed.
Storage Display Expansion ±
0.1
% of full scale.
Algorithm Error
Storage Display Compression
+0.16%
of reading
±0.4%
of full scale.
Algorithm Error
Horizontal
Resolution
10
bits
(1
part
in
1024).
Calibrated for 100 data points per division.
Differential Accuracy
Graticule indication of time cursor difference
is
within
±2%
of the
readout value, measured over the center eight divisions.
SAVE Mode Expansion Range
Y-T Mode
10 times
as
determined
by
the
X10
MAG switch.
Expansion Accuracy Same
as
the Vertical.
1-10
- -
