Tektronix 2230 Operator's Manual

General lnformation-2230 Operators
Characteristics
Weight
With Power Cord, Cover,
Probes, and Pouch
With Power Cord Only
Domestic Shipping Weight
Height
Width
With Handle
Without Handle
Depth
With Front Cover
Without Front Cover
With Handle Extended
VOLTS
(DC PLUS
PEAK AC l
400
300
1"-
~

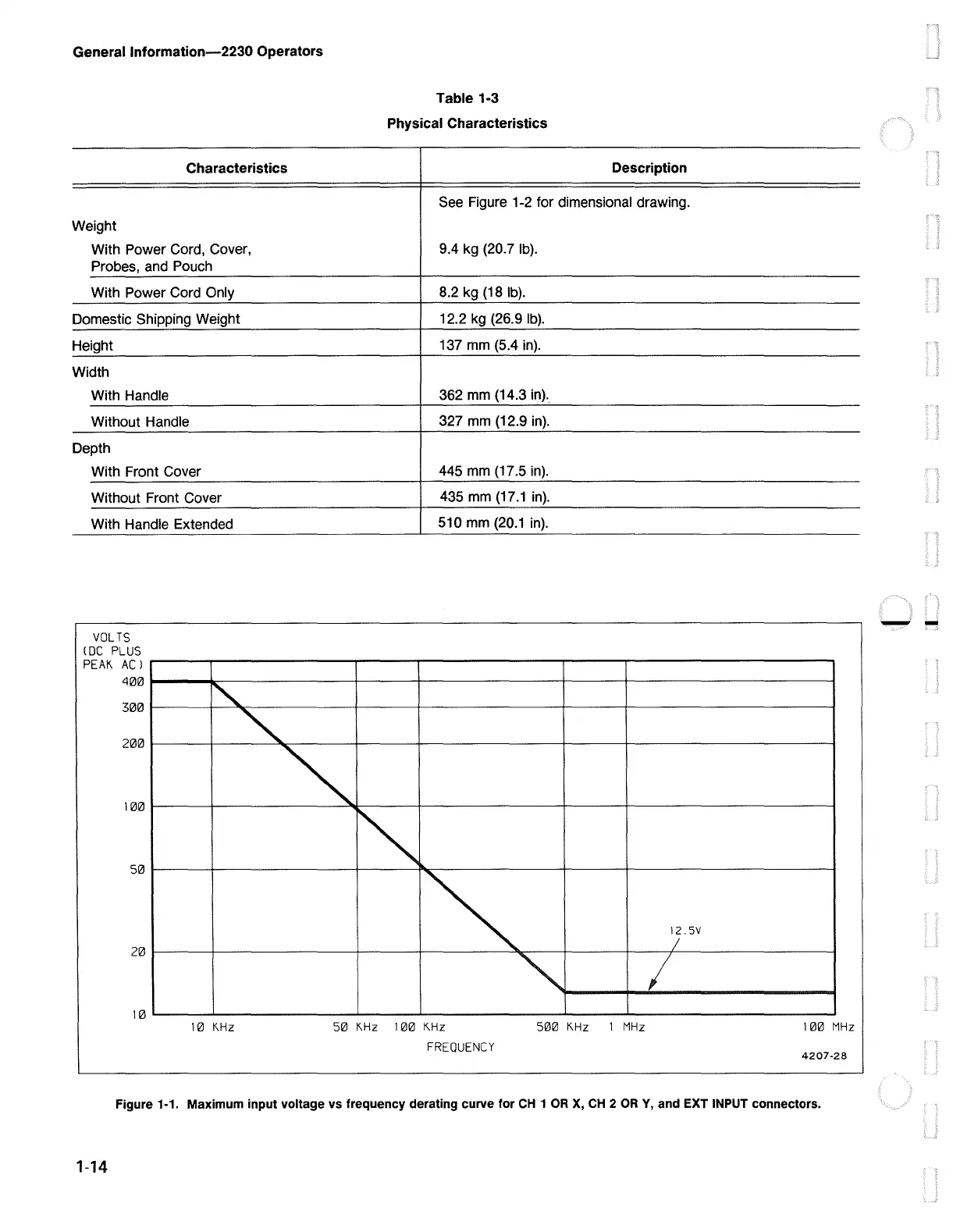

Table 1-3
Physical Characteristics
Description
See Figure 1-2 for dimensional drawing.
9.4 kg (20.7 lb).
8.2 kg (18 lb).
12.2 kg (26.9 lb).
137 mm (5.4 in).
362 mm (14.3 in).
327 mm (12.9 in).
445 mm (17.5 in).
435 mm (17.1 in).
510 mm (20.1 in).
200
100
~
50
20
10
10 KHz
~
~
50 KHz 100 KHz
FREQUENCY
~
500 KHz 1 MHz
12.5V
I
I
100 MHz
4207-28
Figure 1-1. Maximum input voltage vs frequency derating curve for CH 1 OR X, CH 2 ORY, and EXT INPUT connectors.
1-14
--
