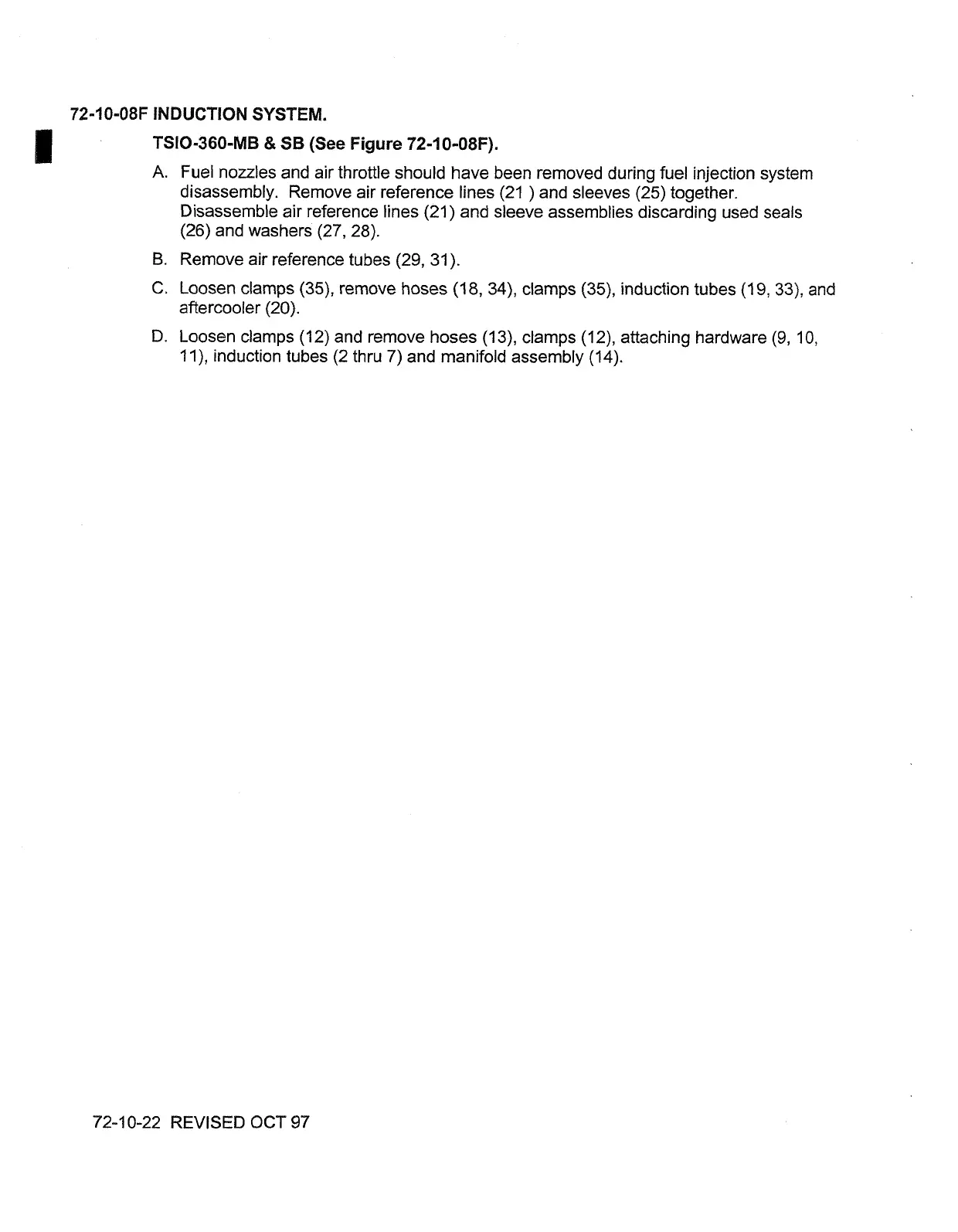

72-10-08F INDUCTION SYSTEM.
TSIO-360-MB
&
SB
(See
Figure
72-10-08F).
A.
Fuel nozzles and air throttle should have been removed during fuel injection system
disassembly. Remove air reference lines
(21
)
and sleeves
(25)
together.
Disassemble air reference lines
(21)
and sleeve assemblies discarding used seals
(26)
and washers
(27,28).
B.
Remove air reference tubes
(29, 31).
C.
Loosen clamps
(35),
remove hoses
(18,
34),
clamps
(35),
induction tubes
(19,33),
and
aftercooler
(20).
D. Loosen clamps
(1 2)
and remove hoses
(1 3),
clamps
(12),
attaching hardware
(9,
10,
1
I),
induction tubes
(2
thru
7)
and manifold assembly
(14).
72-1 0-22
REVISED
OCT
97
