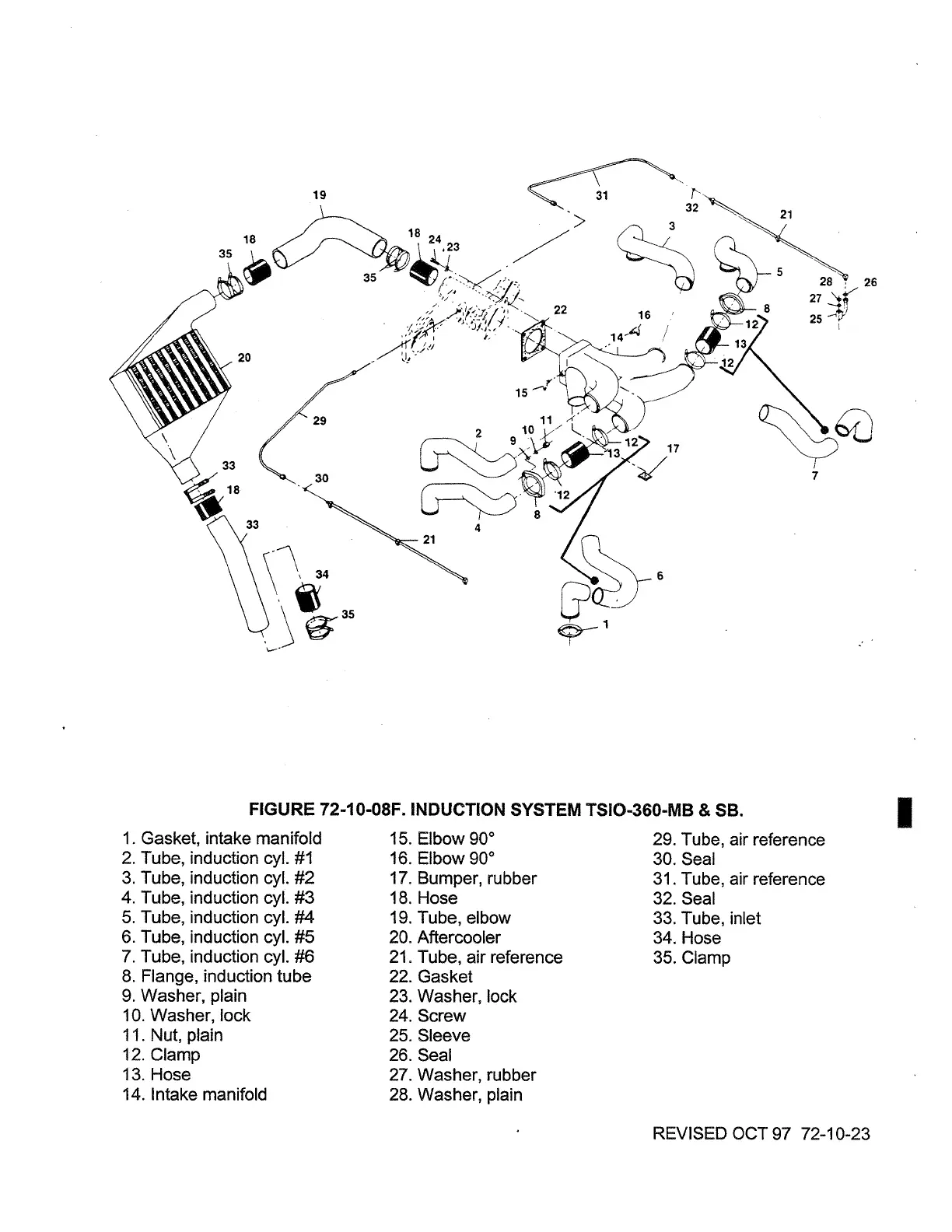

FIGURE 72-10-08F. INDUCTIION SYSTEM TSlO-360-MB & SB.
1. Gasket, intake manifold
2. Tube, induction cyl.
#I
3. Tube, induction cyl. #2
4. Tube, induction cyl. #3
5. Tube, induction cyl. #4
6. Tube, induction cyl. #5
7. Tube, induction cyl. #6
8. Flange, induction tube
9. Washer, plain
10. Washer, lock
1 1. Nut, plain
12. Clamp
13. Hose
14. Intake manifold
15. Elbow
90"
29. Tube, air reference
16. Elbow 90" 30. Seal
17. Bumper, rubber
31. Tube, air reference
18. Hose 32. Seal
19. Tube, elbow
33. Tube, inlet
20.
Aftercooler 34. Hose
21. Tube, air reference
35. Clamp
22. Gasket
23. Washer, lock
24. Screw
25. Sleeve
26. Seal
27. Washer, rubber
28. Washer, plain
REVISED OCT
97 72-1 0-23
